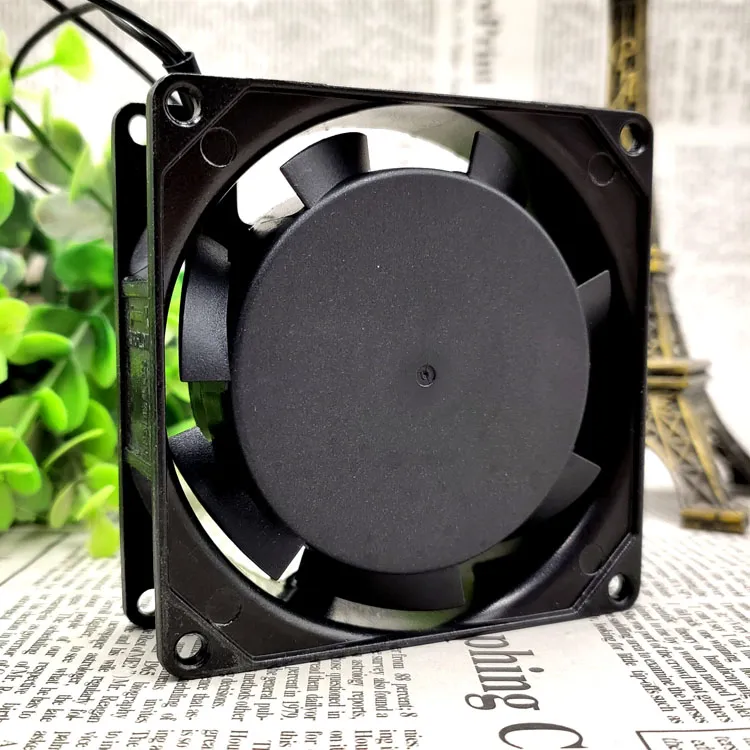

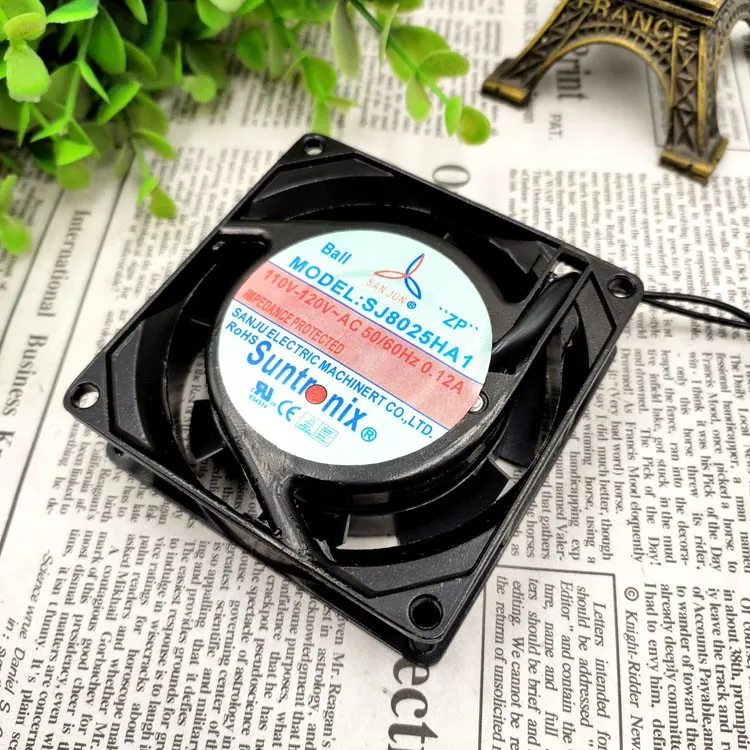

Suntronix SJ8025HA1 110V 120V 0.14A ball bearing cooling fan

$15.00

49 in stock

SKU: SJ8025HA1 Category: Tags: , Brand:

Description

Three giant SJ8025HA1 fan parameters:
Brands: Taiwan’s San Juan S AN JUN®, SAN JU® and Suntronix®
Model: SJ80025HA1 110V
Specification size: 80 * 80 * 25mm
Bearing structure: B: BALL (ball bearing)
Note: The parameters of the oil-bearing bearing are the same as those of the ball, which is distinguished as Sleeve in the upper left corner of the label, and the “S” on the parameter map. “S” in the example SJ1238HA2SAT means oily. It can also be distinguished by the feeling of pressing, the oily part is not elastic when pressed from the back to the motor, and the ball is elastic. The ball life is 60,000 hours and the oil life is 30,000 hours. The company’s fans have steel stamps or codes and anti-counterfeiting marks. Please check the authenticity of the customers and beware of counterfeiting.
Voltage and current: see parameter diagram and label for details
Power: 8/12 (W)
Speed: 2600/3100 (R / min)
Air volume: 32/40 (CFM)
Noise: 31/35 (dB-A)
Packing: bulk, no separate box, ordinary carton packing 60 sets / 1 whole box;
Frame: Black baking paint aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Bearing: Low noise imported ball bearing;
Working environment temperature (℃): -20 ℃ ~ 70 ℃ B: (ball bearing)
Lifespan: working environment temperature 40 ℃ B: (ball bearing) 60000 (hours)
Long service life, can work continuously for 24 hours for a long time.

Additional information

Weight1 kg
Application

Computer Case

Heatsink Material

Aluminum

Bearing

Oil Bearing

Power Interface

2PIN

Lines

2 Lines

Model Number

SJ8025HA1

Brand Name

Suntronix

Type

Fan

Fan Life

50000 hrs

Compatible CPU

YES

Package

Yes

Fan Size

80x80x25mm

Noise

Other
