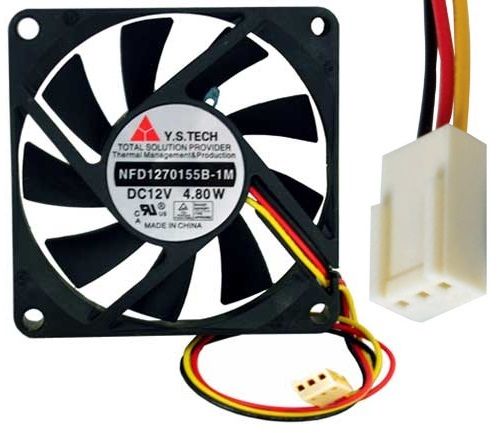

Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX 2Ball Bearing Smart Fan
Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX 2Ball Bearing Smart Fan

Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX 2Ball Bearing Smart Fan

(1 customer review)

$18.35

999 in stock

SKU: NFD1270155B-1M Category: Tag: Brand:

Description

Manufacturer: Y.S.Tech
Model: Smart Fan NFD1270155B-1M

Size: 70mm X 70mm X 15mm (2.76 x 2.76 x 0.59 inches)
Bearing: Double Ball Bearing (lasts longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 65,000 hours MTBF (mean time between failures)
Built-in Tempurature Sensor (thermostat / thermister)
Speed: up to 5500 RPM (temperature dependent)
Airflow: up to 39.7 CFM (1.12 m3/min) (temperature dependent)
Air Pressure: up to 6.8 mmAq (66.68Pa, 0.268inAq) (temperature dependent)
Noise Level: up to 45.5 dBA (tempurature dependent)
Voltage: 12VDC
Operating range: from 7V to 13.2V
Amperage: up to 0.4 Amps (temperature dependent)
Wattage: up to 4.8 Watts (tempurature dependent)
Power Connector: 3pin Standard ATX
Wire Conductors: 3wire
Wire Length: 8inch (.32cm)

Additional information

Weight 1 kg
Max. Fan Speed

5500RPM
Connector Type

3pin Standard ATX
MPN

NFD1270155B NFD1270155B-1M NFD1270155B1M 7015
Model

Smart Fan
UPC

Does not apply
Max. Air Flow Volume

40 CFM
Quantity

1
Current

0.40 Amp
Startup Voltage

7V
Noise

45.5dBA
Bearing Type

Ball
Type

Cooling Fan
Fan Thickness

15mm
Voltage

12V
Air Pressure

6.8mmH2O
Fan Diameter

70mm
Power Connection

3-Pin
Brand

Y.S. Tech
Voltage Operating Range

7V to 13.2V

1 review for Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX 2Ball Bearing Smart Fan

  1. 99go –

    Product quality is ok. very satisfacted
