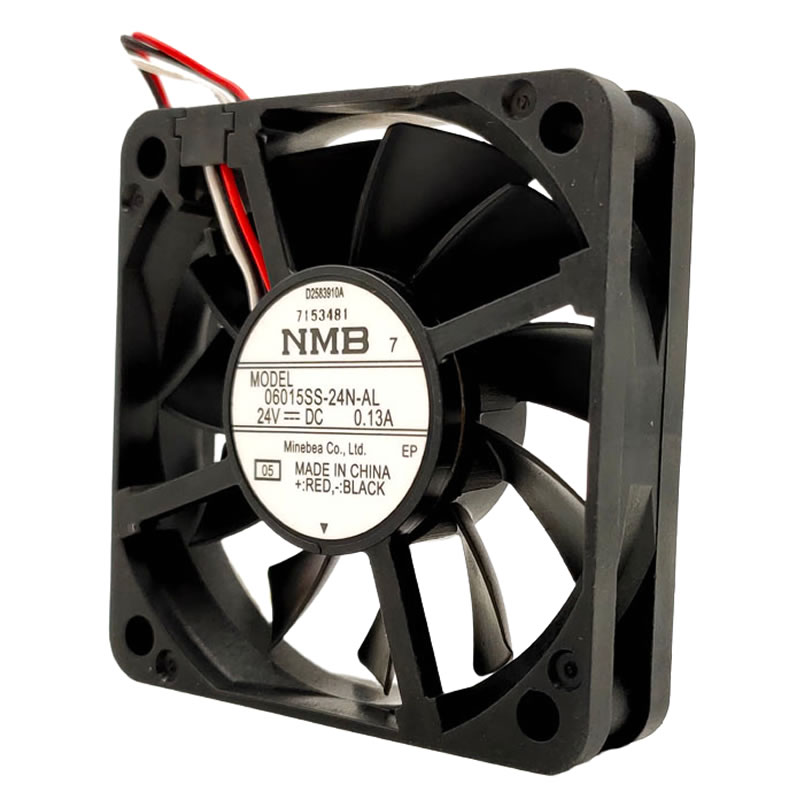

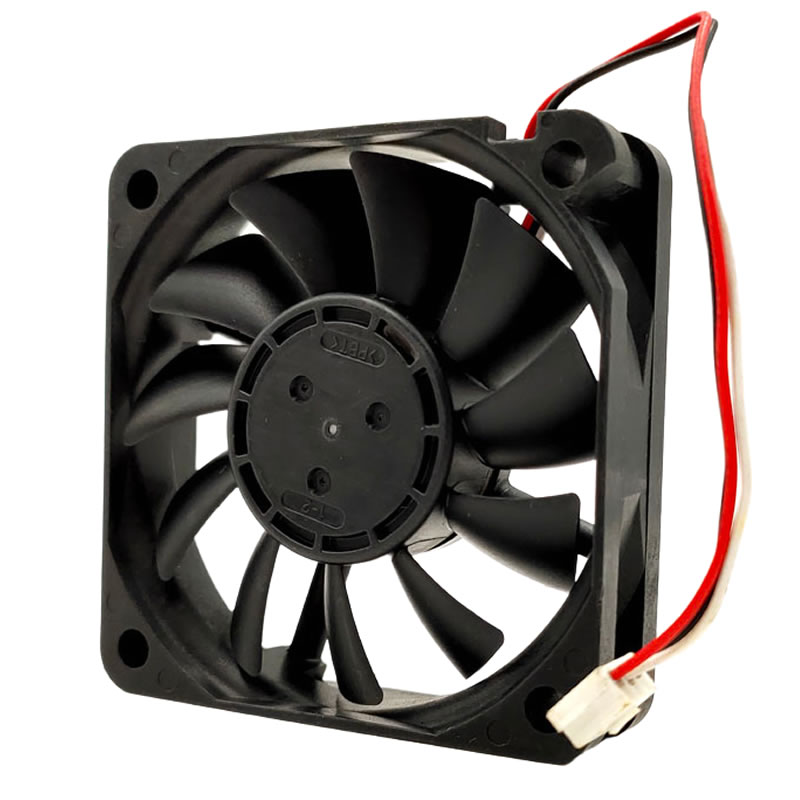

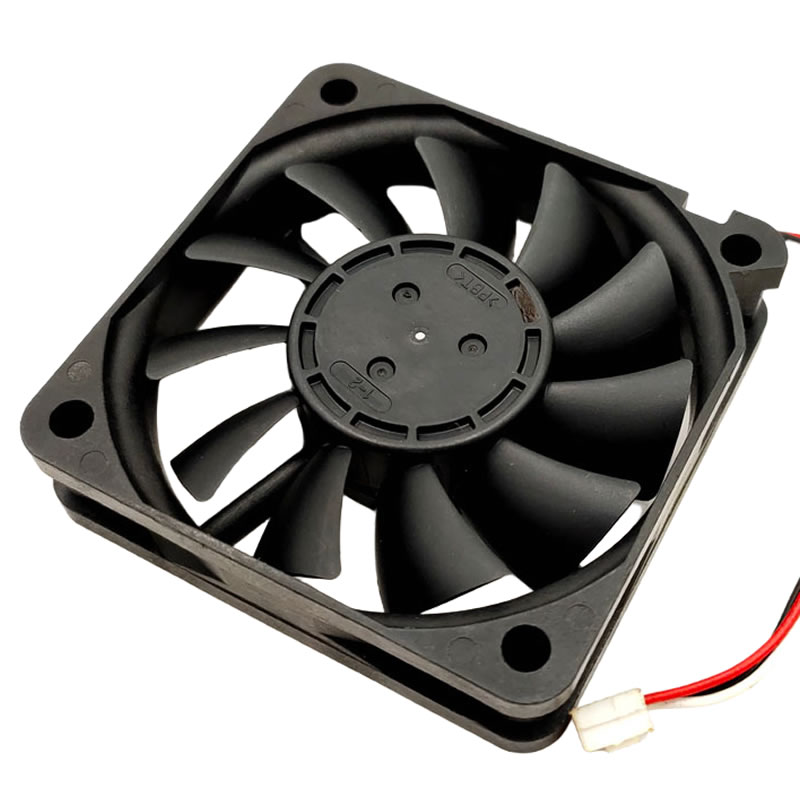

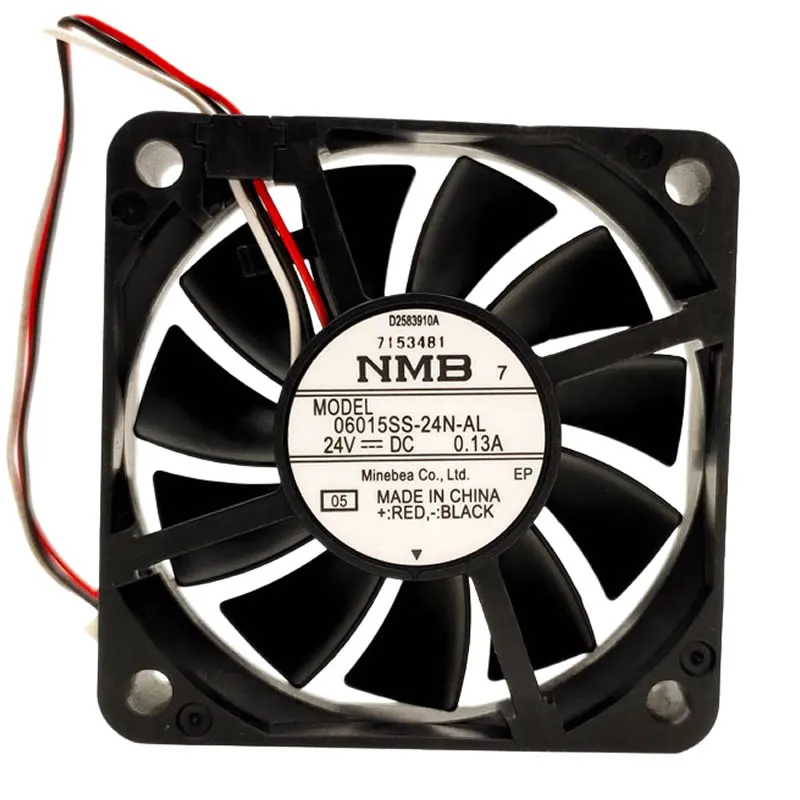

06015SS-24N-AL NMB 24V 0.13A 2-wire fan

$7.09

SKU: 06015SS-24N-AL Category: Brand:

Description

Model:06015SS-24N-AL
Brand:NMB Minebea
Size:60x60x15mm
Voltage:DC24V
Current:0.13A
Power:3.12W
Speed:4600RPM
Air volume:18.3CFM
Air pressure:51.2pa
Noise:34DBA
Termination:2 Wire Leads
Ambient temperature: -20~75°
Service life: 50,000 hours
old model:2406KL-05W-B59

The ‌Model 06015SS-24N-AL‌ is a compact and efficient ‌60x60x15mm‌ DC cooling fan manufactured by ‌NMB Minebea‌, a globally recognized leader in precision engineering. Operating at ‌24V DC‌, this fan delivers reliable performance with a current draw of ‌0.13A‌ and power consumption of ‌3.12W‌. Designed for industrial and electronic applications, it provides optimal thermal management for equipment requiring stable, long-term cooling solutions.

With a rotational speed of ‌4600 RPM‌, the 06015SS-24N-AL generates an airflow of ‌18.3 CFM‌ and a static pressure of ‌51.2 Pa‌, ensuring effective heat dissipation in confined spaces. The ‌2-wire lead‌ configuration simplifies installation, while the ‌sleeve bearing‌ design contributes to its ‌50,000-hour service life‌ under normal operating conditions. Despite its high-speed operation, the fan maintains a relatively quiet noise level of ‌34 dB‌, making it suitable for noise-sensitive environments.

Engineered for durability, this fan operates reliably across a wide ‌temperature range (-20°C to +75°C)‌, making it ideal for challenging industrial environments. Its robust construction and long lifespan make it perfect for applications such as ‌power supplies, automation control systems, and telecommunications equipment‌. Whether used as an OEM component or a replacement part, the 06015SS-24N-AL combines ‌NMB Minebea’s quality craftsmanship‌ with high-efficiency cooling performance.

Additional information

Weight 0.25 kg
