G1G170-AB31-03 ebmpapst M1G074-CF31-53 230V fan

Description

Model:G1G170-AB31-03 ebmpapst
Power: 315W
Voltage: 230V AC, 50/60 Hz
Current: 2.15A
Airflow: Approximately 370–380 m³/h
Speed: Around 5650 RPM
Dimensions: Approximately 273 x 257 x 176 mm
Operating Temperature: -25°C to +80°C
Protection Rating: IP20
Construction: High-grade metal frame with aluminum sheet blades.
Bearing: Ball bearing for durability and low maintenance.
Weight: Approximately 4.7 kg
Use Case: High-temperature hot air ventilation, often used in boiler repair or air purification systems.

Model:M1G074-CF31-53 ebmpapst
Power: 410W
Voltage: 230V AC, 50/60 Hz
Current: 1.8A
Airflow: Approximately 380 m³/h
Speed: 6530 RPM
Lifespan: Up to 50,000 hours
Bearing: Ball bearing
Weight: Approximately 4.7 kg
Construction: Robust design with aluminum sheet blades and a high-grade metal frame.
Temperature Range: -25°C to +55°C

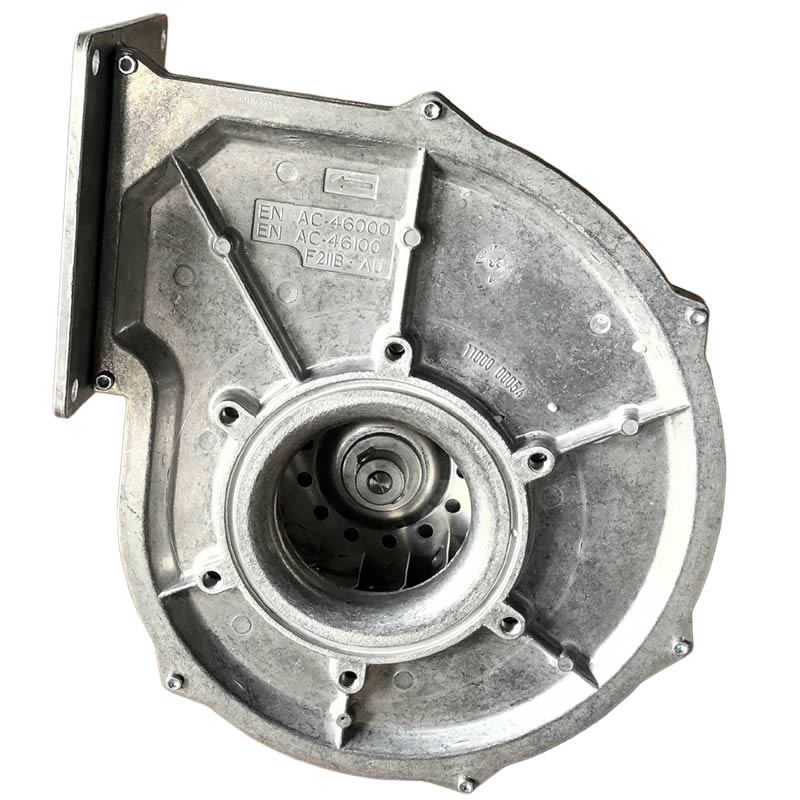

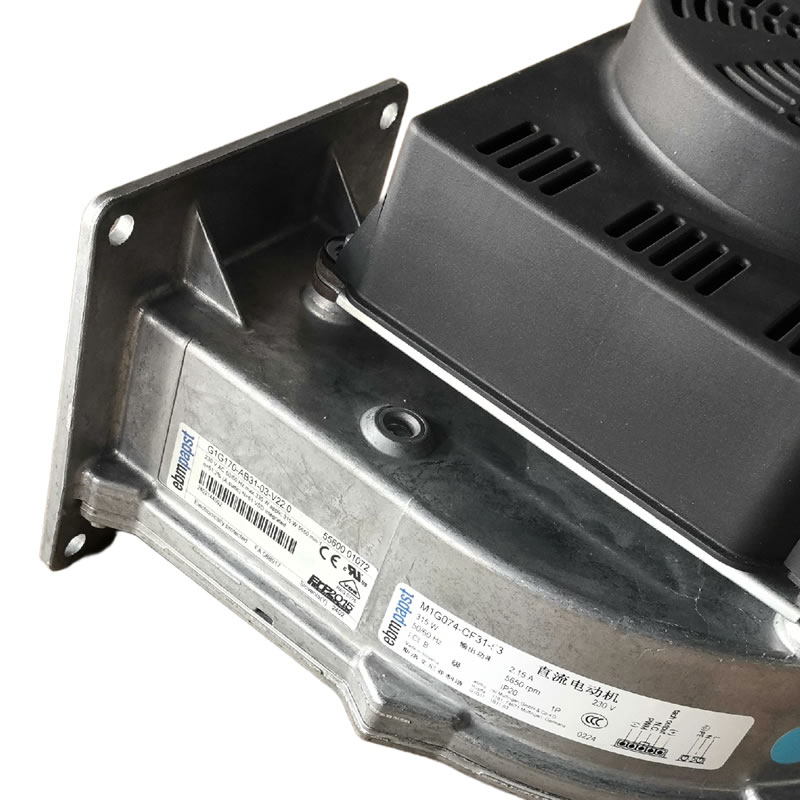

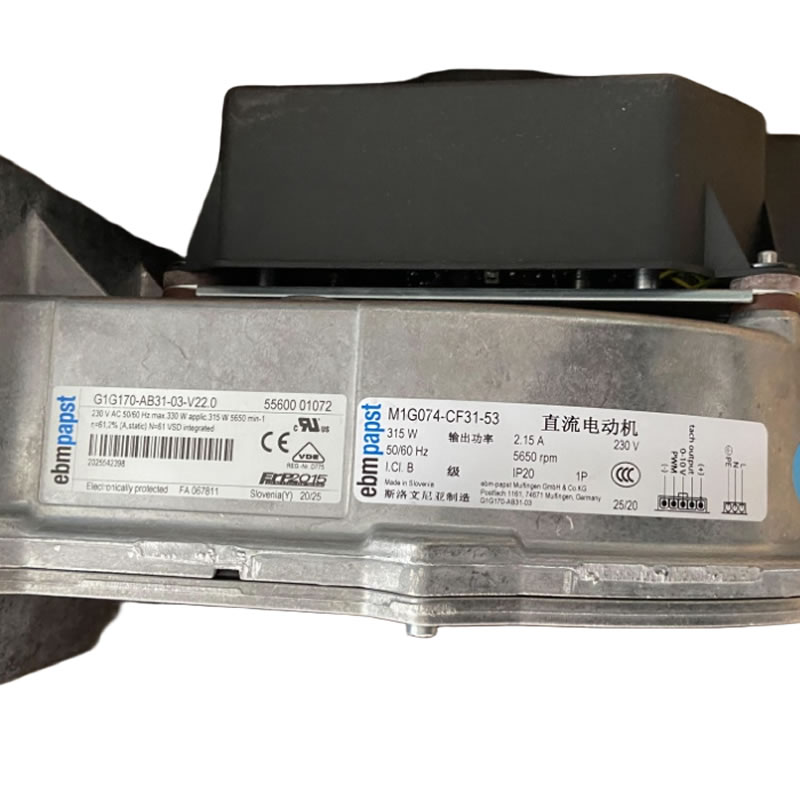

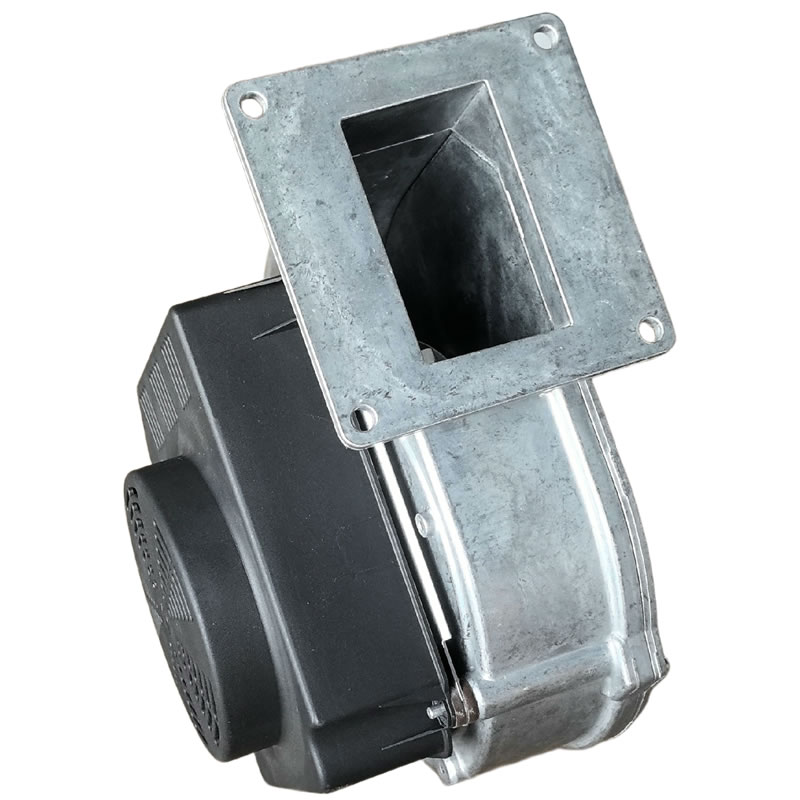

This is the fan used in Heidelberg printing presses. G1G170-AB31-03 and M1G074-CF31-53 are the two labels on this centrifugal fan.

The ebmpapst centrifugal fan used in Heidelberg printing presses, identified by models G1G170-AB31-03 and M1G074-CF31-53, operates on 230V AC (50/60 Hz) with 315W/410W power and 2.15A/1.8A current respectively, delivering 370–380 m³/h (G1G) and 380 m³/h (M1G) airflow at 5,650 RPM/6,530 RPM. Housed in a 273x257x176mm, 4.7kg high-grade metal frame with aluminum blades and durable ball bearings, it offers up to 50,000 hours lifespan (M1G), an IP20 rating (G1G), and operates in -25°C to +80°C (G1G) or -25°C to +55°C (M1G), suitable for high-temperature applications like boiler ventilation, air purification, and Heidelberg press systems, combining robust construction, efficient airflow, and thermal resilience for industrial reliability.
