Description

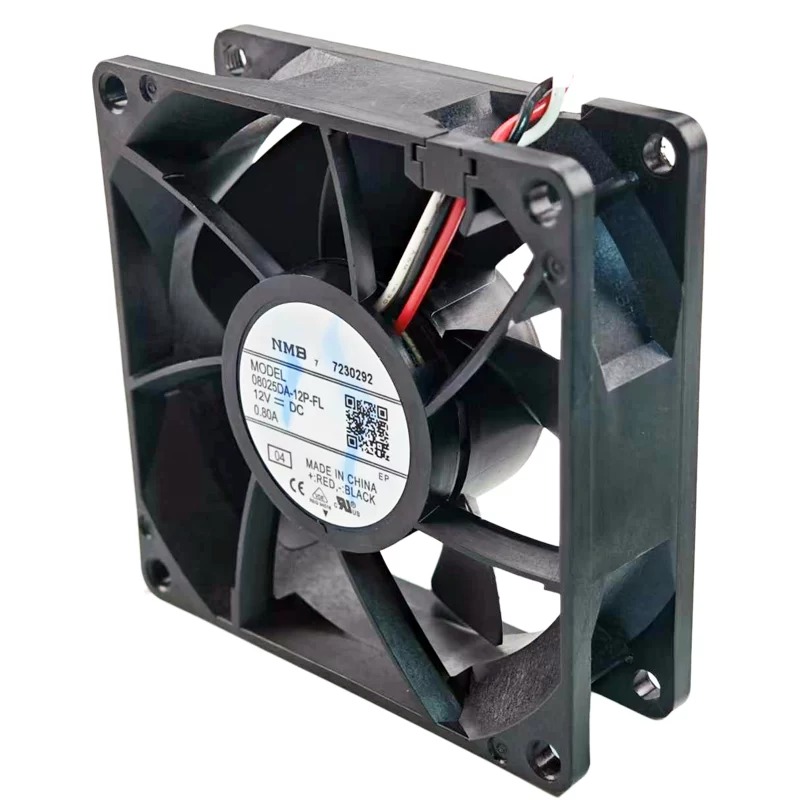

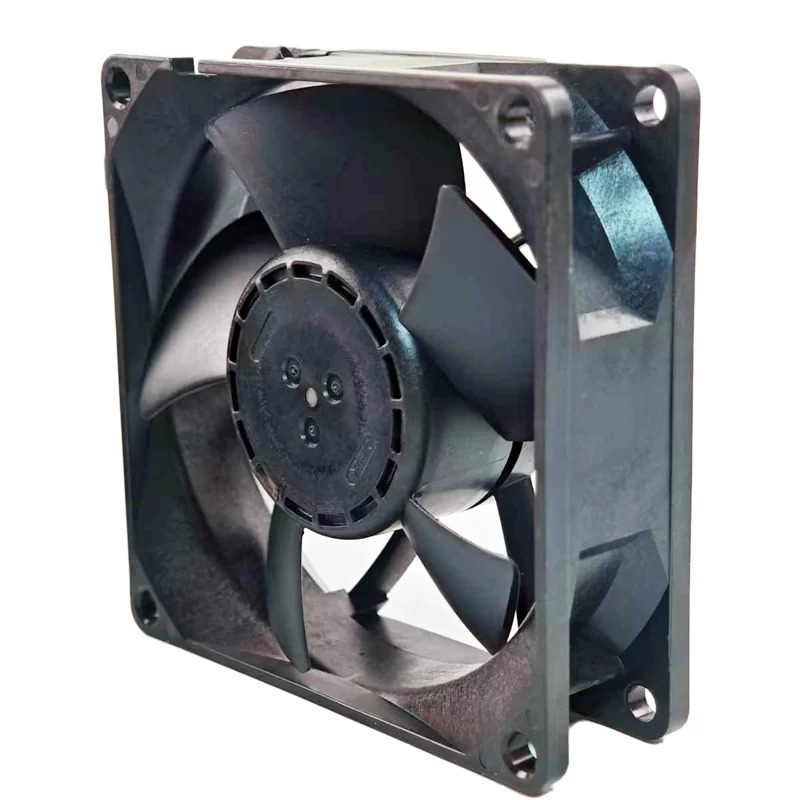

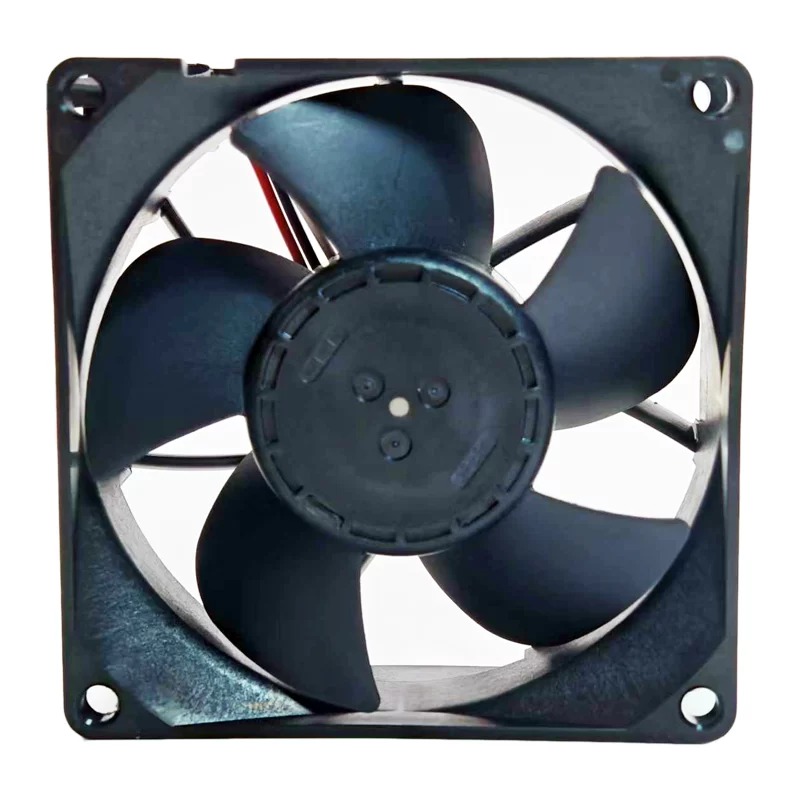

08025DA-12P-FL Brand new original NMB genuine 12V 0.80A 8025 energy storage waterproof cooling fan
Model Number: 08025DA-12P-FL
Manufacturer: NMB Technologies Corporation
Series: 08025DA
Fan Type: DC Brushless Axial Fan
Dimensions: 80x80x25.4mm
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 VDC to 13.2 VDC
Rated Current: 0.80A
Input Power: 5.88 W to 9.6 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 7000RPM
Maximum Airflow: 72.4 CFM to 73 CFM
Maximum Static Pressure: 0.75 in H2O or 186.8 Pa
Noise Level: 53 dB to 55 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Polarity Protection
Features: Tachometer Output
Operating Temperature Range: -10°C to +60°C
Expected Life L10: 70,000 Hours at 40°C
Mass: 120 g
The NMB 08025DA-12P-FL is a high-performance 80x80x25.4mm DC axial fan from NMB Technologies, designed for robust cooling in various demanding electronic systems. Operating on 12VDC, it consumes 5.88W to 9.6W of power with a current draw from 0.49A to 0.80A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a powerful airflow of 72.4 CFM to 73 CFM at a high speed of 7000 RPM, generating a significant static pressure of 0.75 in H2O. With a noise level of 53 dB to 55 dB, it is designed for applications where strong airflow is prioritized. The 3-wire configuration typically includes a tachometer output for real-time speed monitoring, along with auto restart and polarity protection, enhancing its reliability. This fan is an excellent choice for cooling servers, high-density computing equipment, industrial control cabinets, and other systems requiring effective and dependable thermal management.
