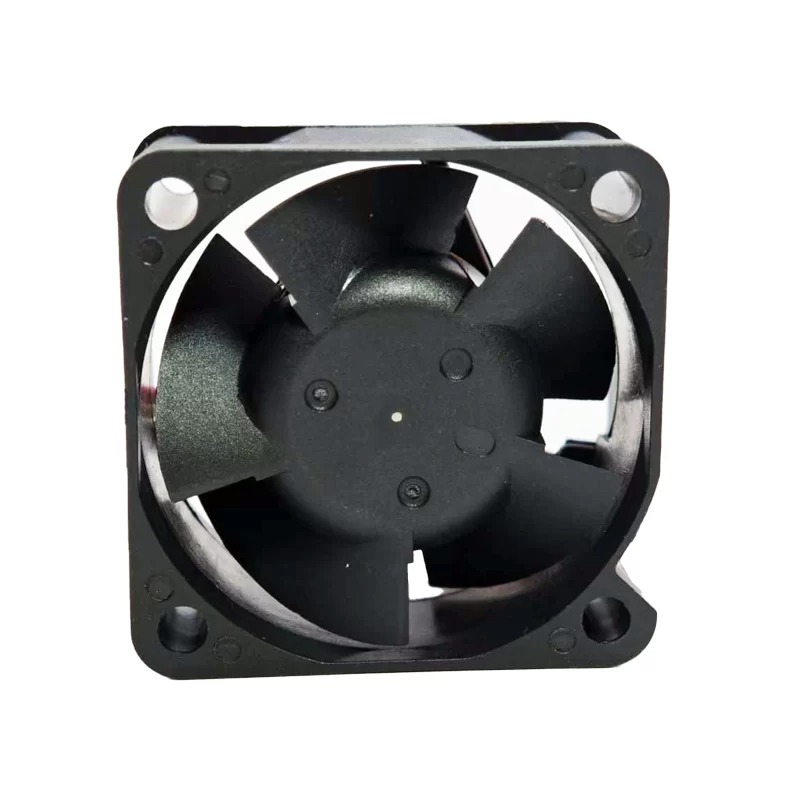

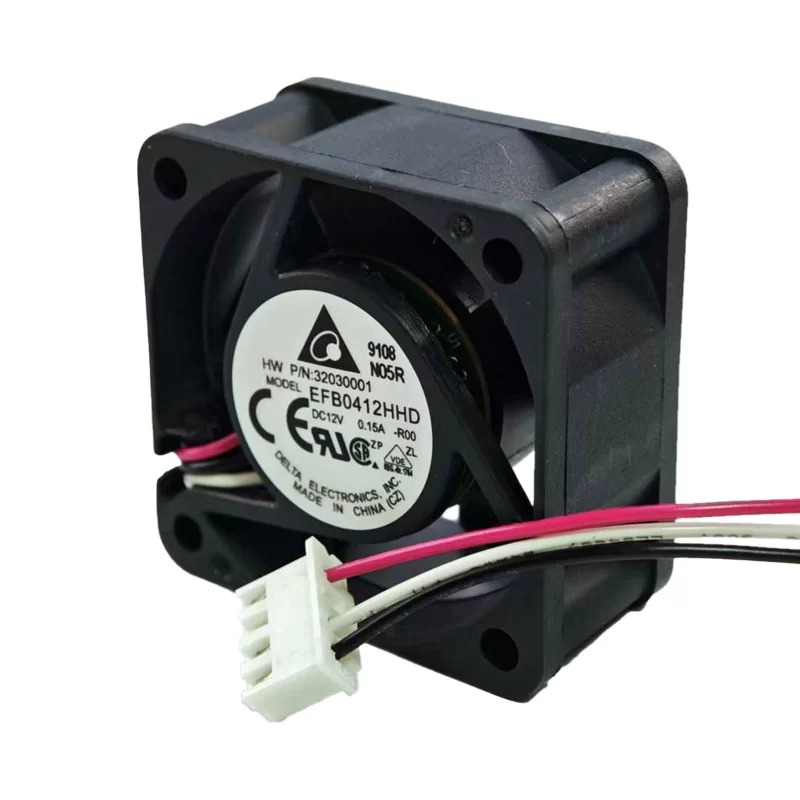

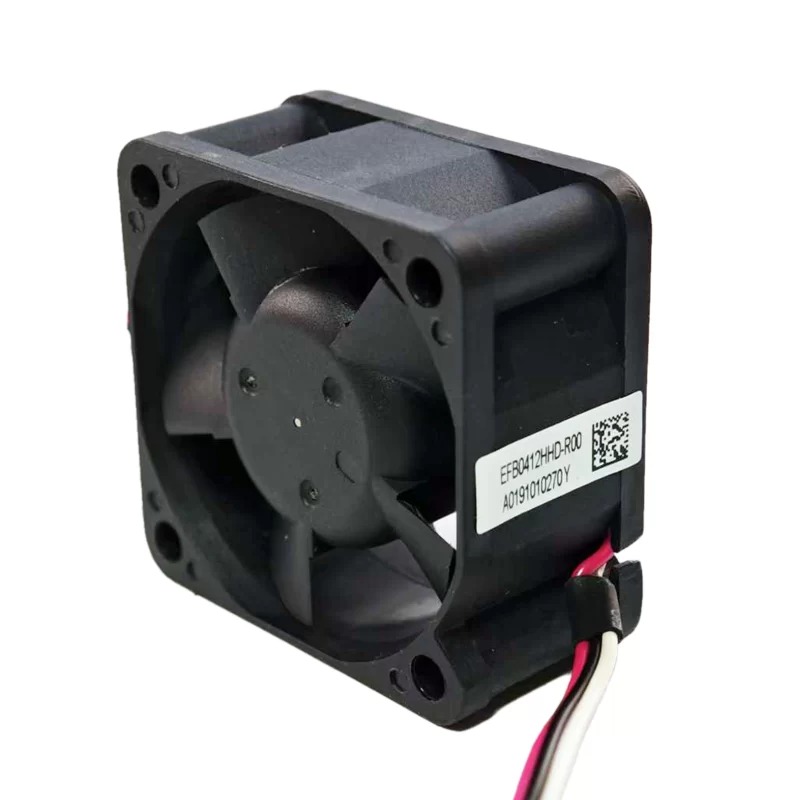

EFB0412HHD-R00 Delta 12V 0.15A axial fan

Description

Model: EFB0412HHD-R00
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 40x40x20mm
Nominal Voltage: 12VDC
Operating Voltage Range: 7V to 13.8V DC
Current: 0.15A
Power Consumption: 1.8W
Speed: 8200RPM
Airflow: 9.43CFM
Static Pressure: 0.354 In H2O
Noise Level: 30.5dBA
Bearing Type: Dual Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10) or 100,000 Hours (at 25°C)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, locked rotor protection, speed sensor (Tachometer/FG output).
EFB0412HHD-R00 Delta New original authentic EFB0412HHD 12V 0.15A 4020 cooling fan

The Delta EFB0412HHD-R00 is a high-performance 12V DC axial fan, measuring 40mm x 40mm x 20mm, manufactured by Delta Electronics. This fan is engineered for effective cooling in compact and high-density electronic systems where space is limited but powerful airflow is required. It features durable dual ball bearings, contributing to an extended operational lifespan of up to 100,000 hours at 25°C.Drawing 0.15A of current, it consumes 1.8W of power. This fan operates at a high speed of 8200 RPM, delivering 9.43 CFM of airflow and generating 0.354 inches of H2O static pressure, with a moderate noise level of 30.5 dBA. Equipped with 3-wire leads that provide a speed sensor output for real-time monitoring and featuring locked rotor protection, the Delta EFB0412HHD-R00 is an excellent choice for cooling components in small servers, network switches (e.g., Huawei/H3C models), mini PCs, and other electronic devices that demand reliable and controllable thermal management.
