Description

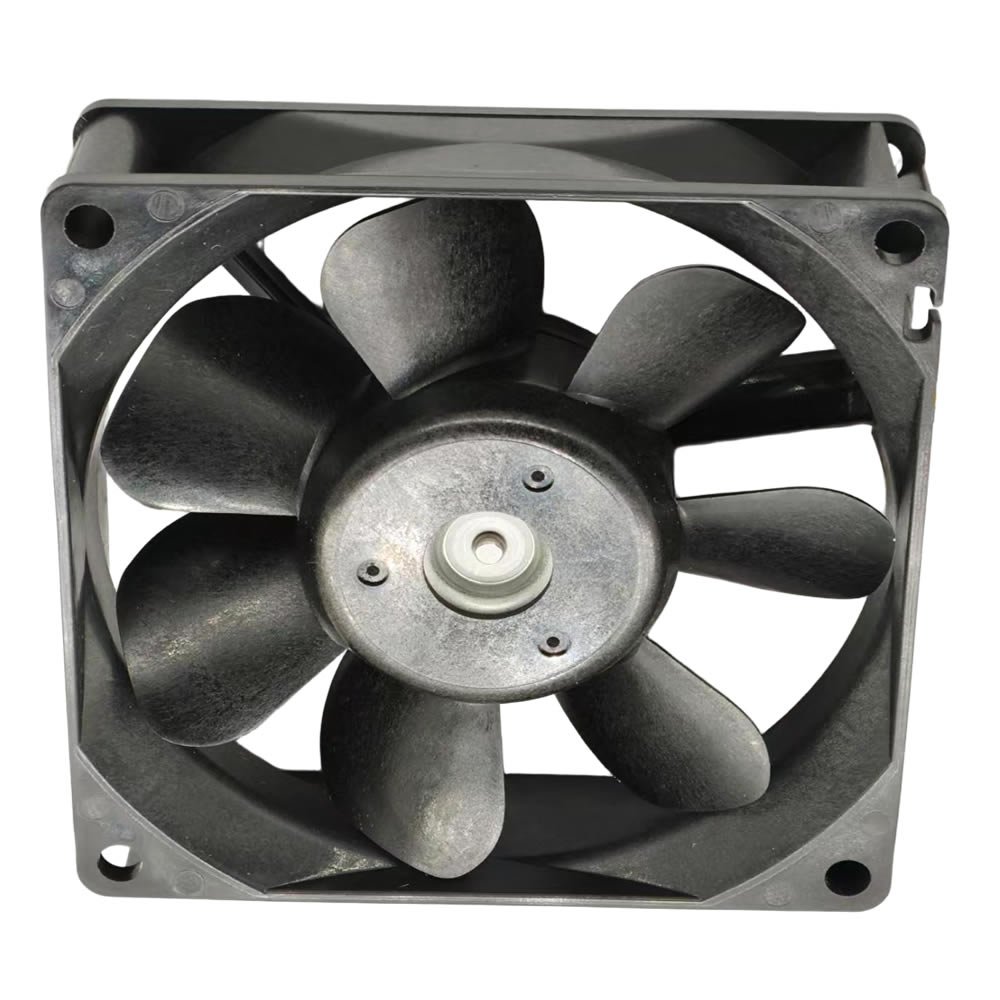

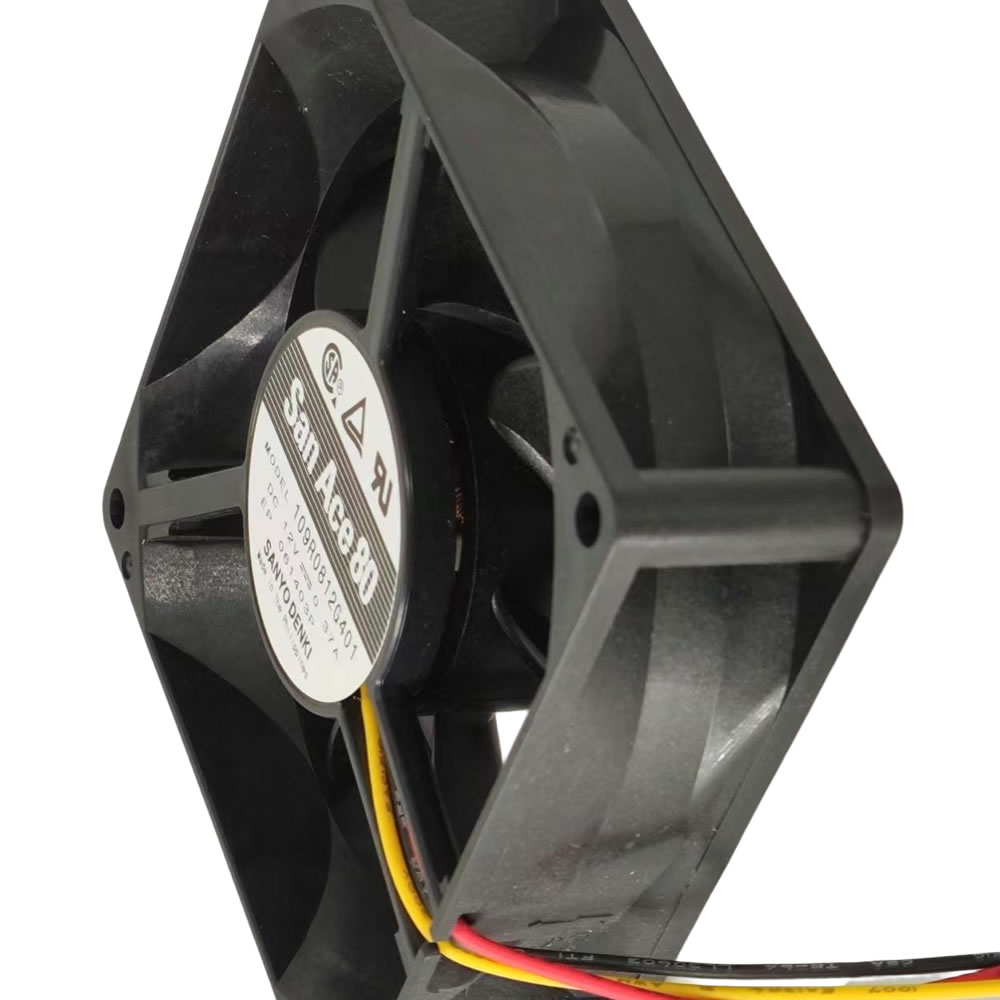

Model:109R0812G401
Series:San Ace 80
Type: DC Axial Flow Fan
Manufacturer:Sanyo Denki
Dimensions: 80x80x25mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 VDC to 13.2 VDC
Rated Current: 0.370A
Rated Input Power: 4.44 W
Rated Rotating Speed: 4500 min⁻¹ (RPM)
Maximum Air Flow: 1.48 m³/min (53.0 CFM)
Maximum Static Pressure: 80.4 Pa (0.323 inchH₂O)
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
PWM Control: No
Sensor Type: Pulse Sensor (Tachometer)
Expected Life: 40,000 hours at 60°C, 90,000 hours at 40°C
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 110 g
