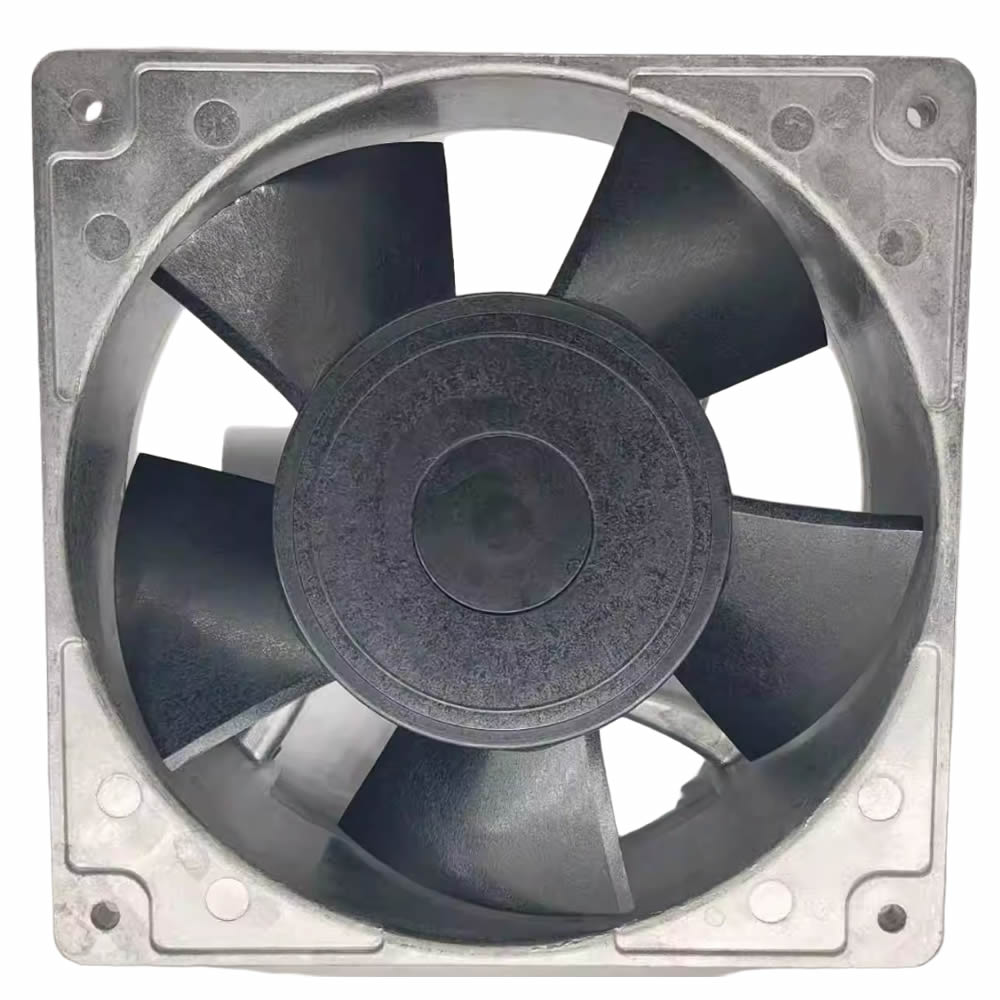

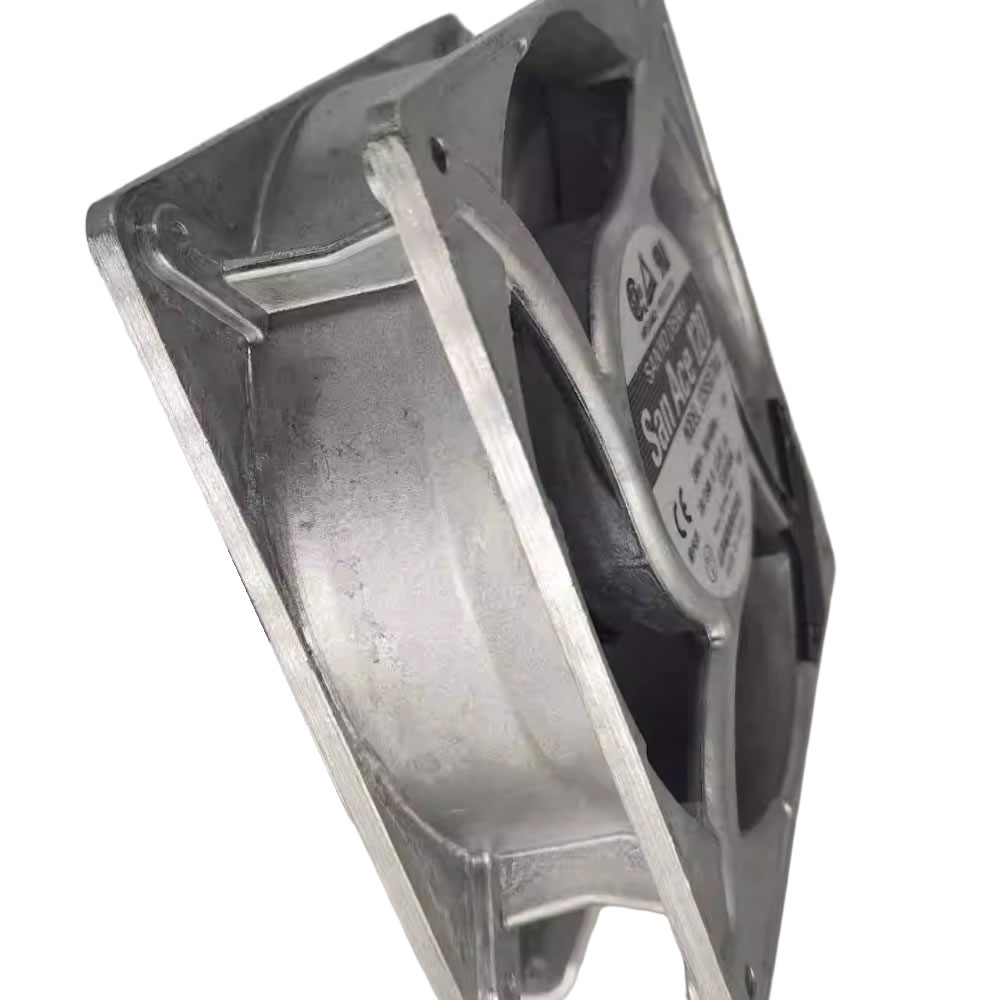

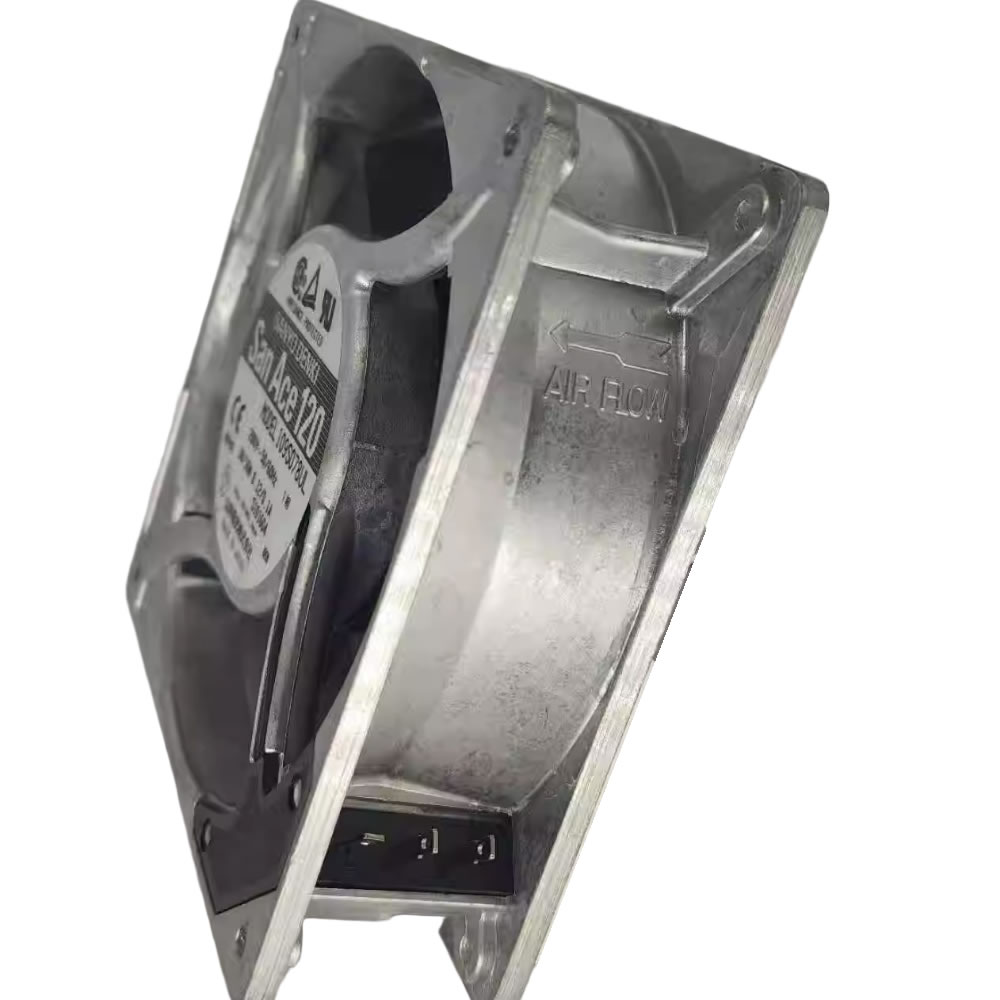

109S078UL ‌Sanyo Denki 200VAC axial fan

Description

Model:109S078UL
Series: San Ace 120
Type: AC Axial Fan
Manufacturer:Sanyo Denki
Dimensions: 120x120x38mm
Rated Voltage: 200VAC
Operating Voltage Range: 180VAC to 220VAC
Frequency: 50/60 Hz
Rated Current (50/60 Hz): 0.12A /0.1A
Locked Rotor Current (50/60Hz):0.16A/0.14A
Rated Input Power(50/60 Hz):18W/16W
Rated Rotating Speed(50/60 Hz): 2700min⁻¹(RPM)/3100min⁻¹(RPM)
Maximum Air Flow (50/60 Hz): 2.5 m³/min / 2.9 m³/min (88.3 CFM / 102.5 CFM)
Maximum Static Pressure (50/60 Hz): 57.9 Pa / 68.7 Pa (0.233 inchH₂O / 0.276 inchH₂O)
Noise Level (50/60 Hz): 42 dB(A) / 45 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Terminals
Frame Material: Aluminum
Impeller Material: Plastic
Motor Structure: Shaded Coil Motor
Life Expectancy:
25,000 hours (at 60°C, 90% survival rate)
56,000 hours (at 40°C, reference value)
Operating Temperature Range: -30°C to +60°C (Non-condensing)
Storage Temperature Range: -30°C to +70°C (Non-condensing)
Mass: Approx. 550 g
Safety Certifications: PSE, CE, UL, TUV, CSA
