Description

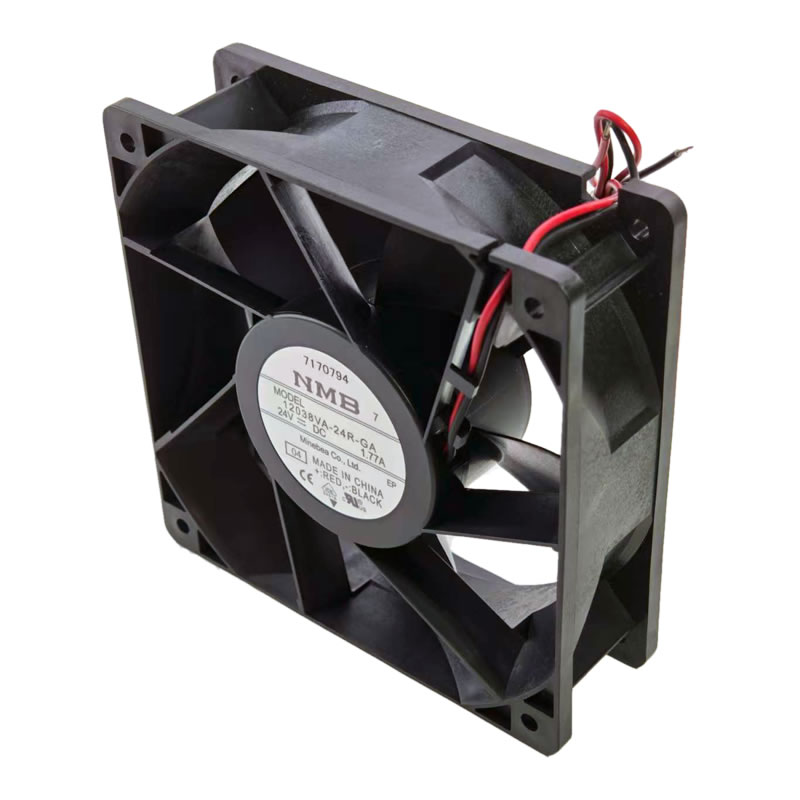

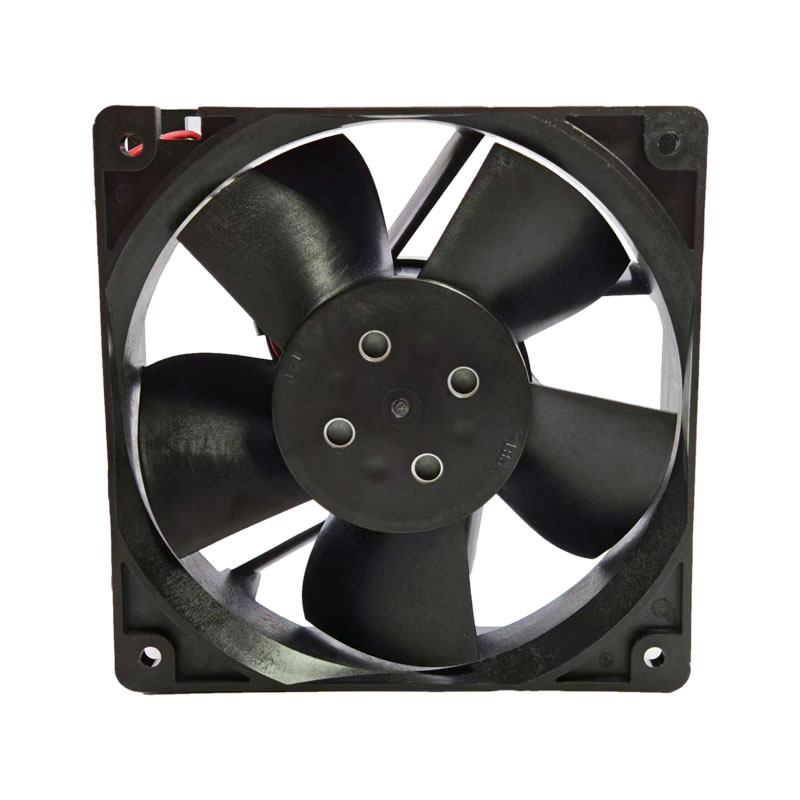

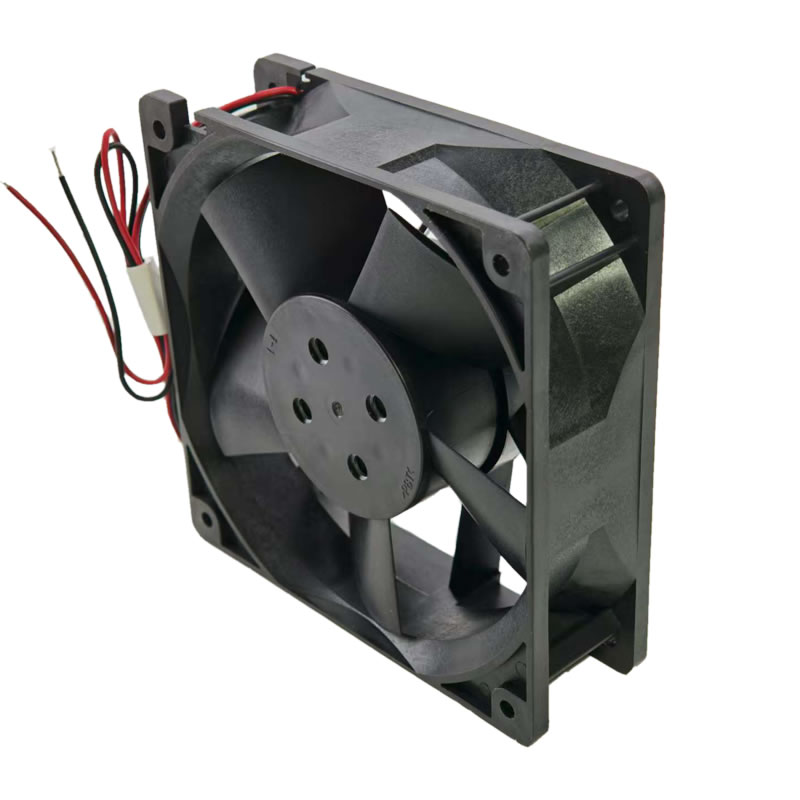

The NMB 12038VA-24R-GA-04 is a DC Axial Fan with dimensions of 120x120x38mm, operating on 24VDC. It draws 1.77A of current and consumes 35.5W of power. This high-speed fan achieves 6400 RPM, generating a powerful airflow of 244 CFM and a high static pressure of 1.48 Inch-H2O. Featuring a durable ball bearing system, it is a reliable cooling solution with a life expectancy of 70,000 hours at 40°C, making it suitable for high-demand applications in industrial and telecommunications equipment.
12038VA-24R-GA-04 Fan Parameters
Model: 12038VA-24R-GA-04
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Current Draw: 1.77 A
Power Input: 35.5 W
Fan Speed: 6400 RPM
Airflow: 244 CFM
Static Pressure: 1.48 Inch-H2O
Noise Level: 64 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Termination: 3-wire lead
Weight: 370 g
Application: Industrial equipment, Telecommunications, Server cooling, Power supplies
