Description

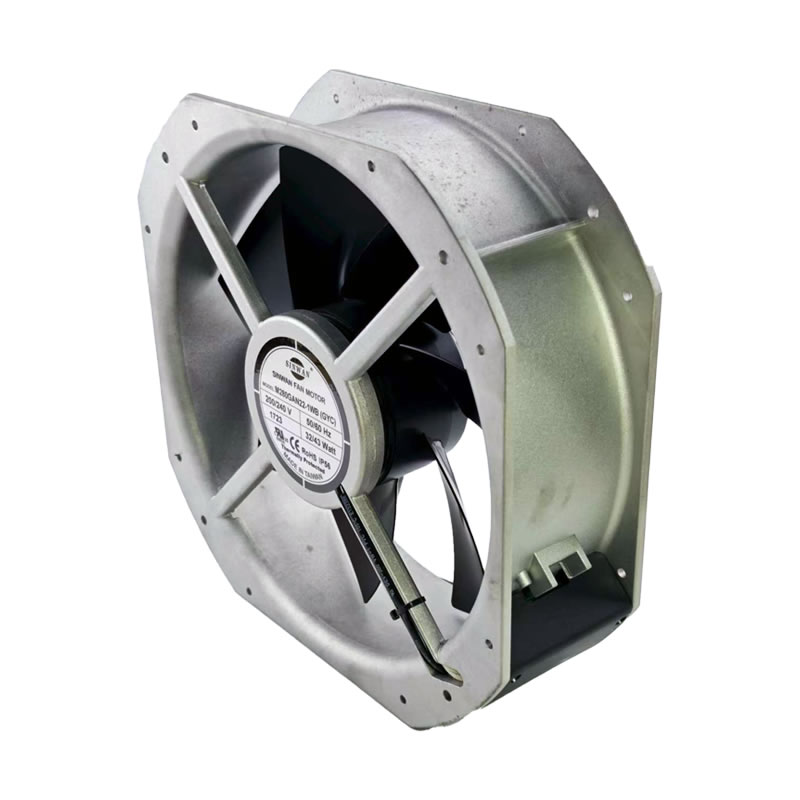

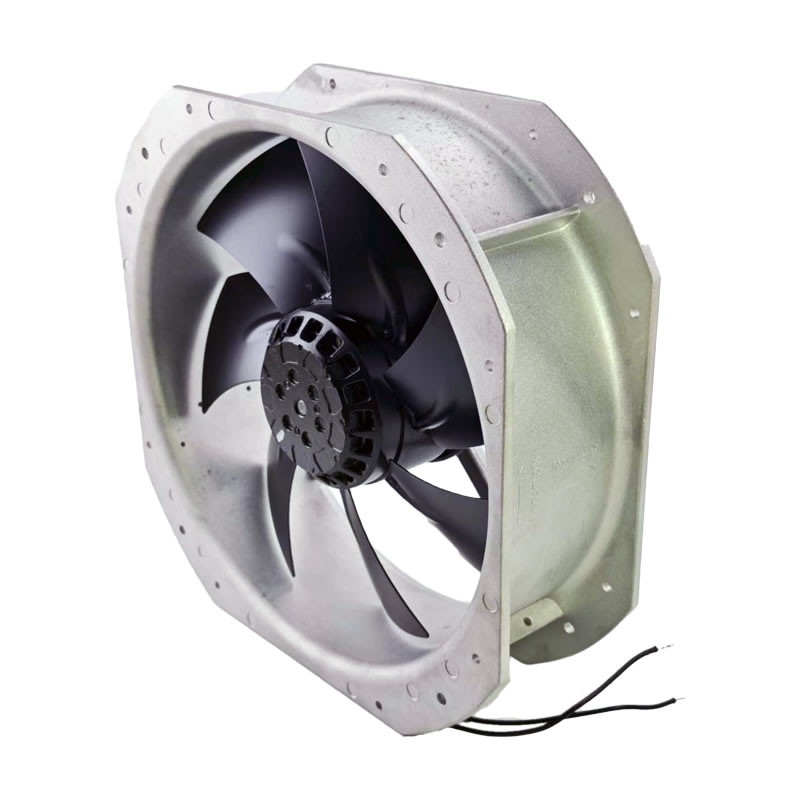

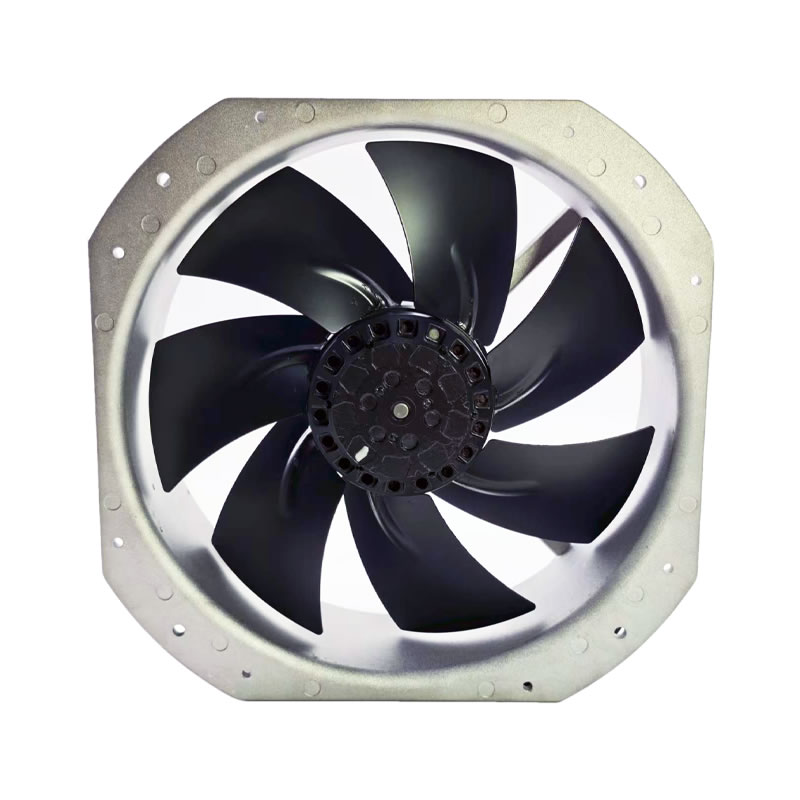

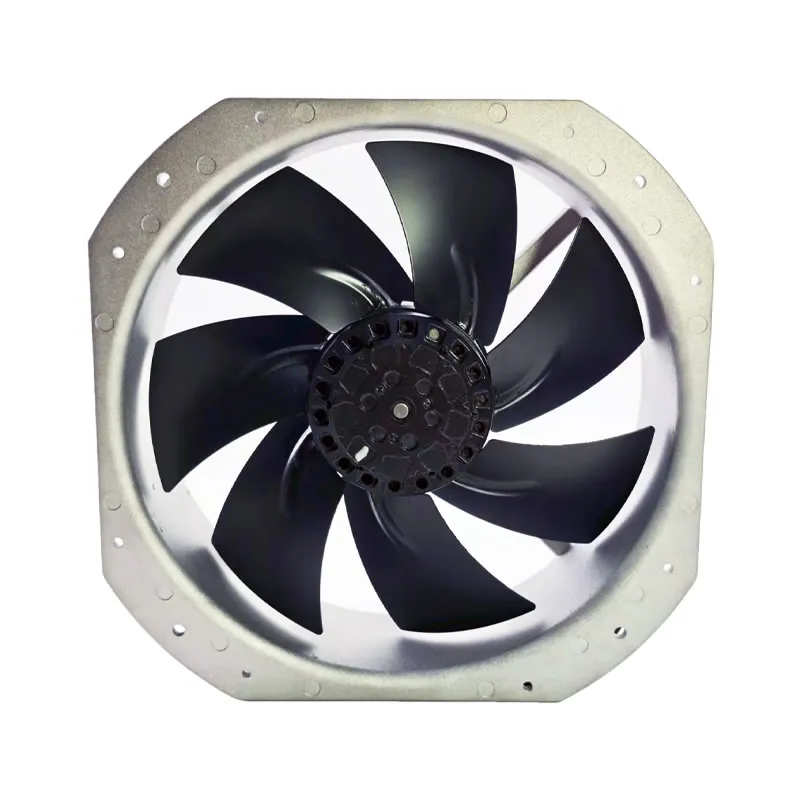

The SINWAN M280GAN22-1WB is an AC Centrifugal Fan measuring 280x280x89mm. It operates on 200-240VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.70A of current and consumes 32W of power, achieving a speed of 2500 RPM and providing an airflow of 780 m³/h. When running at 60Hz, the current is 0.90A, power is 43W, and the speed reaches 2900 RPM, with an airflow of 900 m³/h. The fan features a durable ball bearing system and a robust metal construction, making it a reliable solution for various ventilation applications.
M280GAN22-1WB Fan Parameters
Model: M280GAN22-1WB
Manufacturer: SINWAN
Type: AC Centrifugal Fan
Dimensions: 280 x 280 x 89 mm
Rated Voltage: 200-240 VAC
Frequency: 50/60 Hz
Weight: 3.8 kg
Bearing Type: Ball Bearing
Motor: M280-A
Impeller Material: Metal
Current Draw (50Hz): 0.70 A
Power Input (50Hz): 32 W
Fan Speed (50Hz): 2500 RPM
Airflow (50Hz): 780 m³/h
Noise Level: 68 dB(A)
Current Draw (60Hz): 0.90 A
Power Input (60Hz): 43 W
Fan Speed (60Hz): 2900 RPM
Airflow (60Hz): 900 m³/h
Application: HVAC systems, Fume extraction, Air handling units, General ventilation and cooling of equipment
