Description

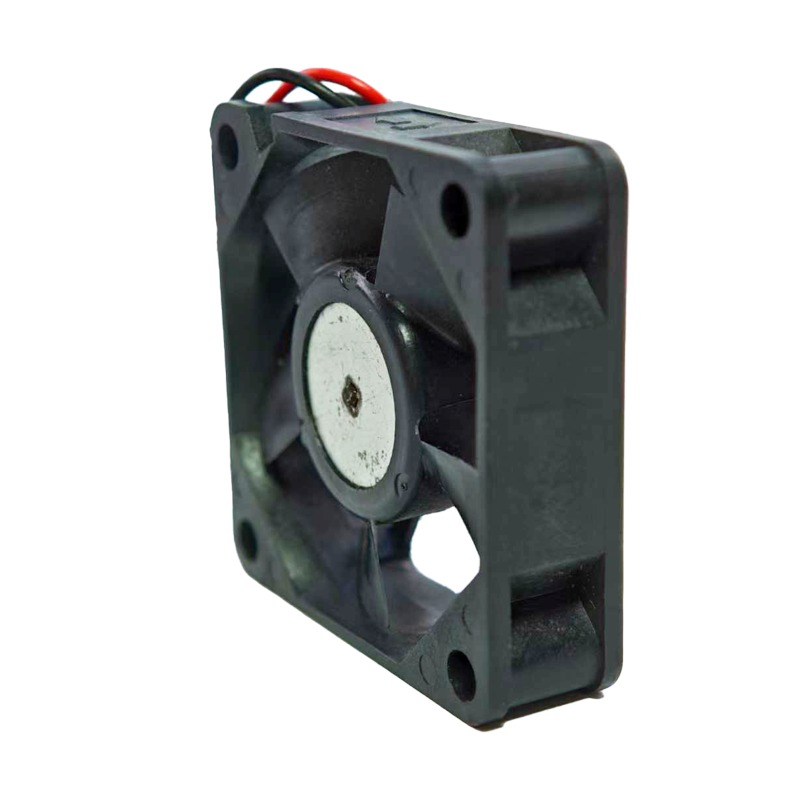

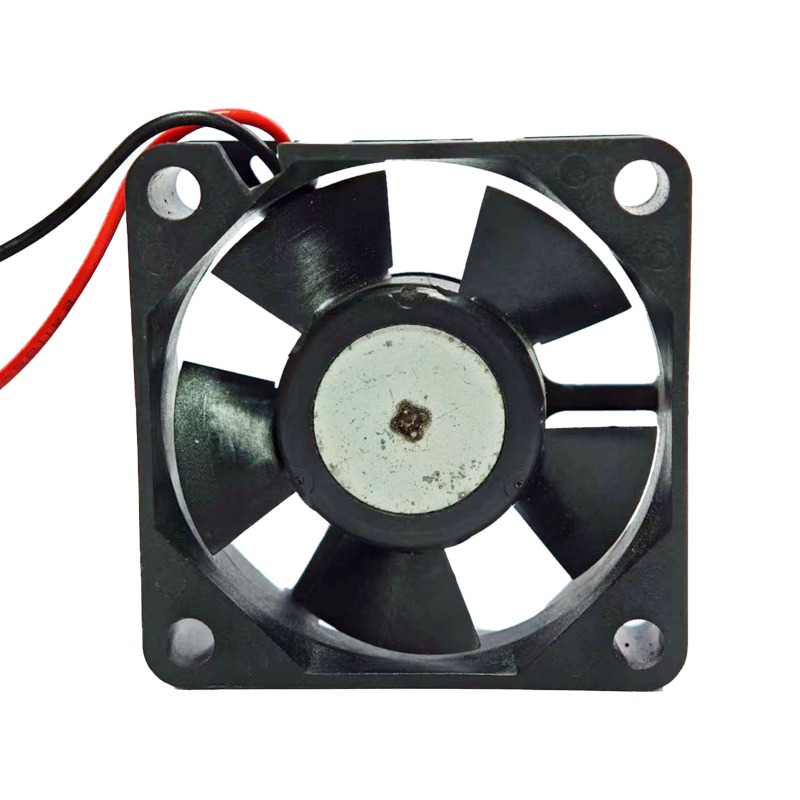

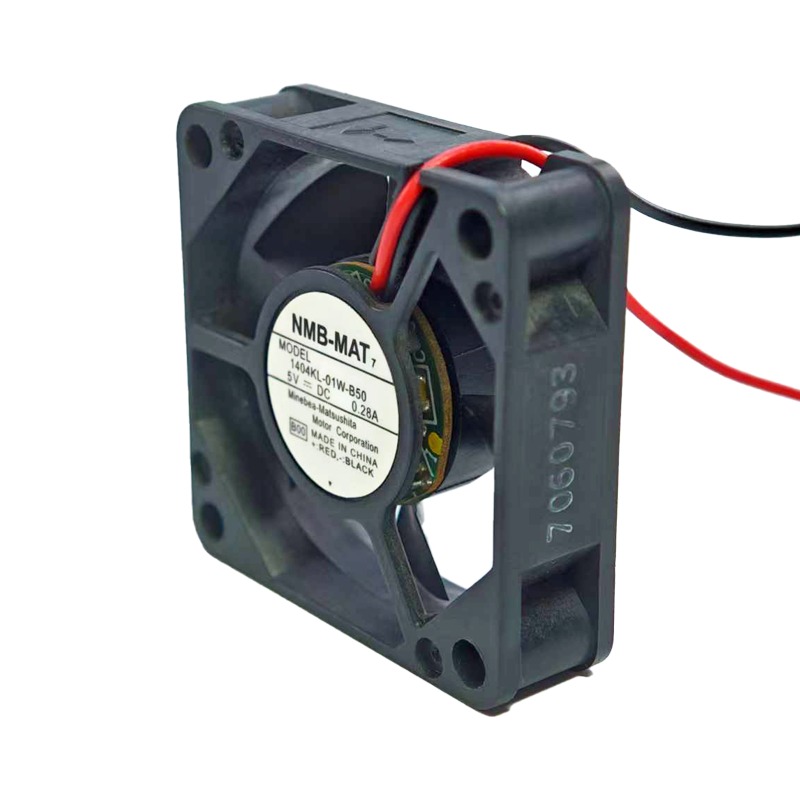

Model: 1404KL-01W-B50
Manufacturer: NMB-MAT
Type: DC Axial Fan
Dimensions: 35mm x 35mm x 10mm
Nominal Voltage: 5V DC
Current: 0.28A
Power Consumption: 1.4W
Speed: 6000 RPM
Airflow: 5.6 CFM
Static Pressure: 0.19 In H2O
Noise Level: 27 dBA
Bearing Type: Double Ball Bearing
Life Expectancy: 40,000 hours
Termination: 2-wire leads
Frame and Blade Material: Thermoplastic
Features: Auto-Restart, Locked Rotor Protection
The NMB-MAT 1404KL-01W-B50 is a compact and powerful 5V DC axial fan measuring 35x35x10mm. Designed with double ball bearings, it offers excellent durability and a long operational lifespan of 40,000 hours. This fan delivers a significant 5.6 CFM of airflow at a high speed of 6000 RPM, making it highly effective for cooling components in extremely space-constrained electronic devices. With a noise level of 27 dBA, it provides robust cooling performance while maintaining a relatively low acoustic profile, ideal for small embedded systems, networking equipment, and other applications where both compactness and efficient heat dissipation are crucial.
