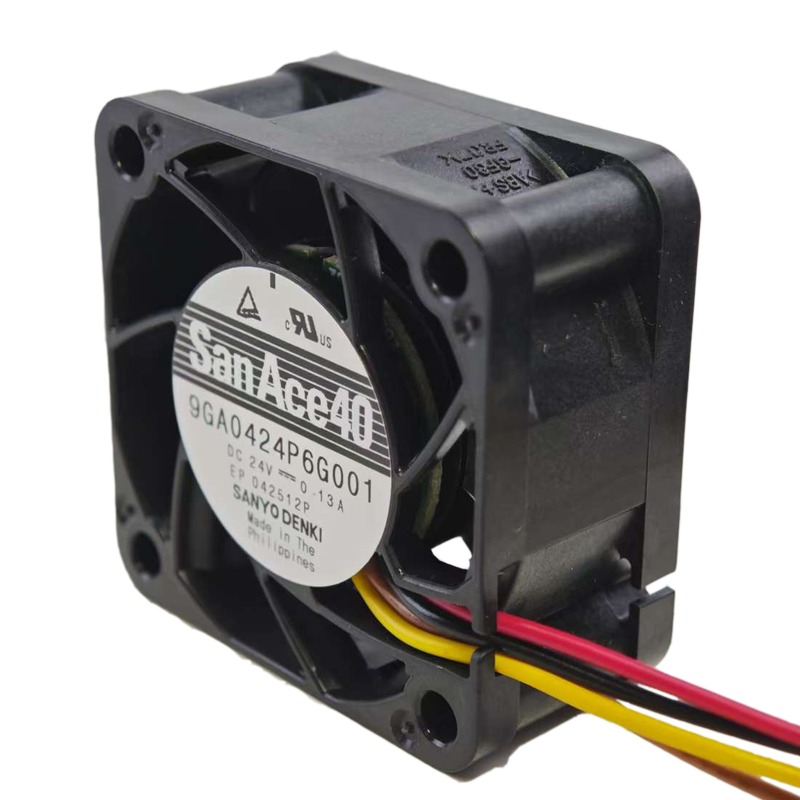

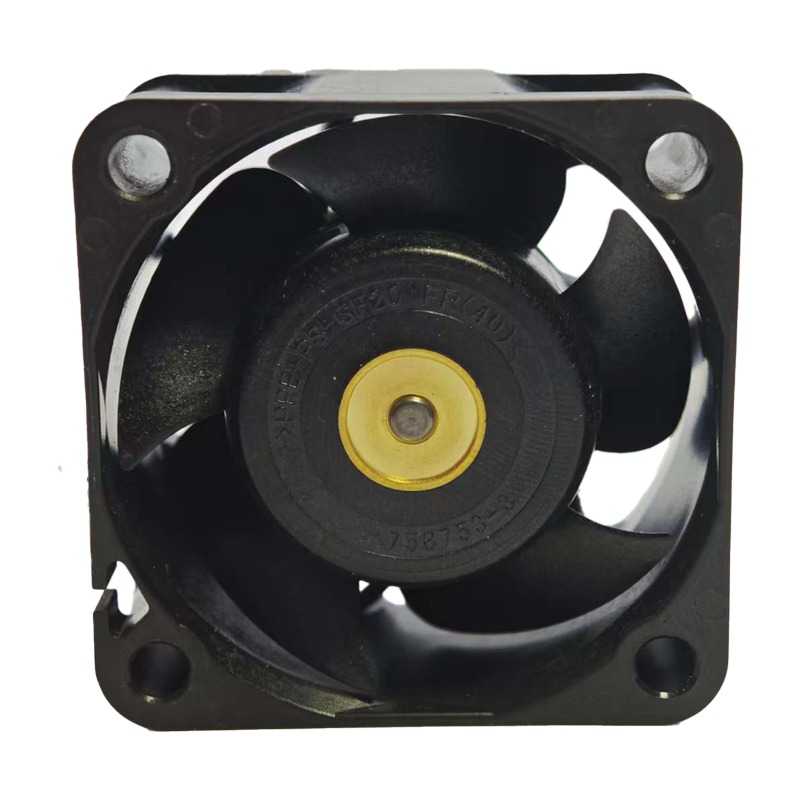

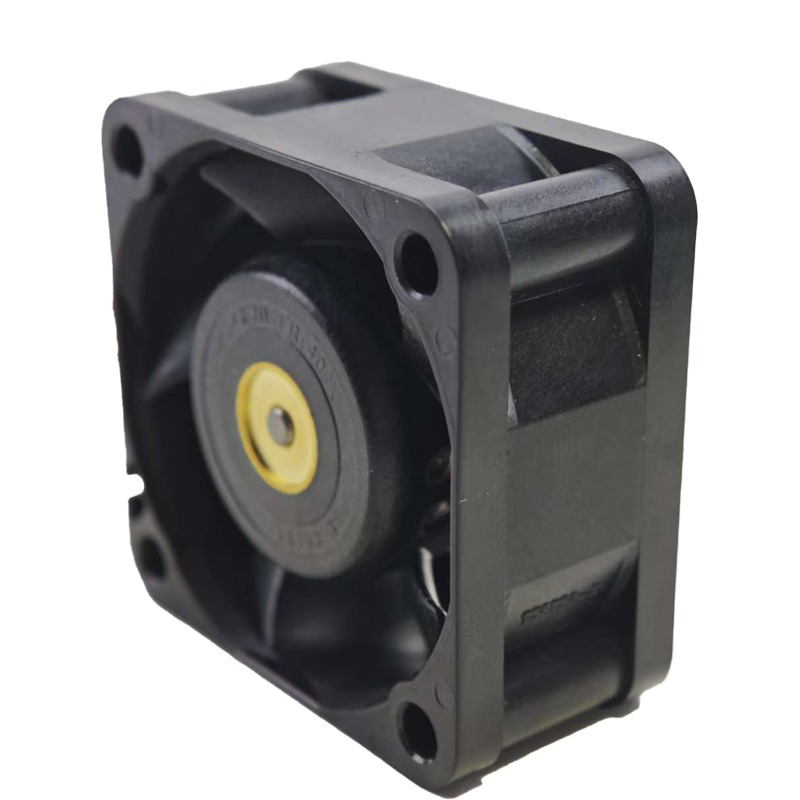

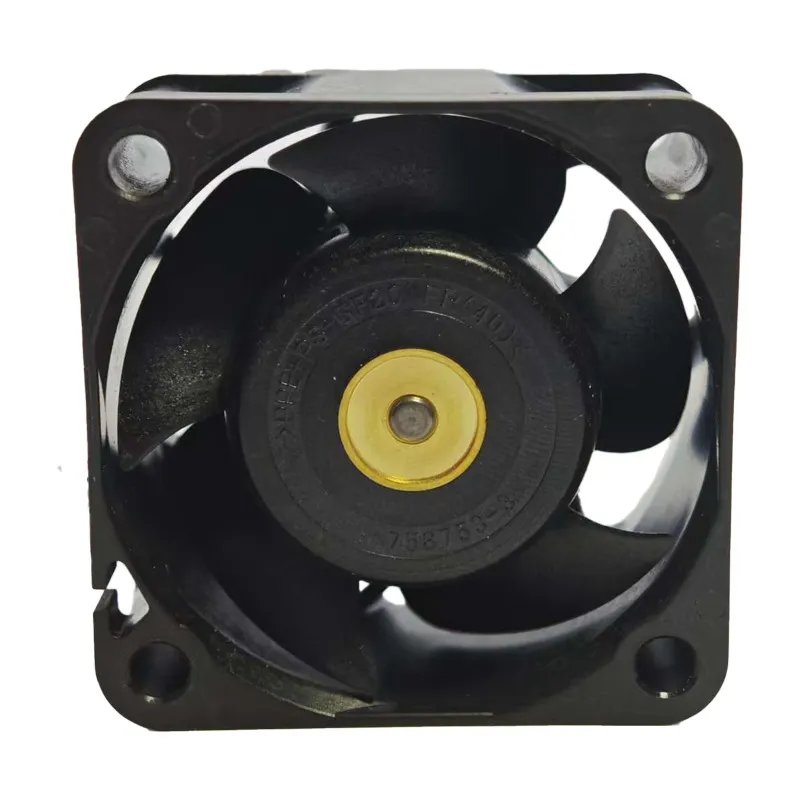

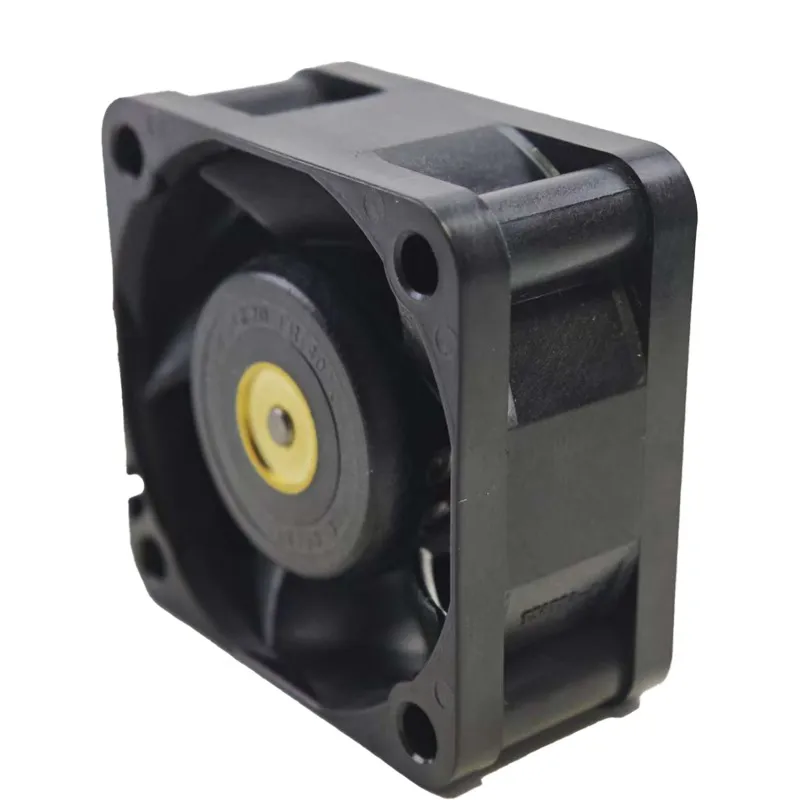

9GA0424P6G001 Sanyo 24V 0.13A DC axial fan

Description

Model: 9GA0424P6G001
Manufacturer: Sanyo Denki
Series: San Ace 40
Type: DC Axial Fan
Dimensions: 40x40x20mm
Nominal Voltage: 24VDC
Current: 0.13A
Power Consumption: 3.12W
Speed: 16000RPM
Airflow: 14.8CFM (0.42 m³/min)
Static Pressure: 1.28In H2O (318 Pa)
Noise Level: 47dBA
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (or 70,000 hours at 40°C)
Termination: 4-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: PWM Control, Pulse Sensor (Tachometer), Locked Rotor Burnout Protection, Reverse Polarity Protection

The Sanyo Denki San Ace 40 9GA0424P6G001 is an exceptionally powerful and compact 24V DC axial fan, measuring only 40x40x20mm. Despite its small size, it’s engineered for aggressive cooling, featuring ball bearings for high durability and a long operational lifespan. This fan delivers an impressive 14.8 CFM of airflow and a very high static pressure of 1.28 In H2O at a blistering 16000 RPM, making it ideal for pinpoint cooling in densely packed electronics. With a noise level of 47 dBA, it focuses on maximizing cooling performance. Its 4-wire termination provides both PWM control for precise speed management and a pulse sensor (tachometer) for real-time RPM monitoring. This fan is an excellent choice for compact servers, high-density network switches, embedded systems, and other miniature devices where efficient, controllable, and high-performance thermal management is critical.
