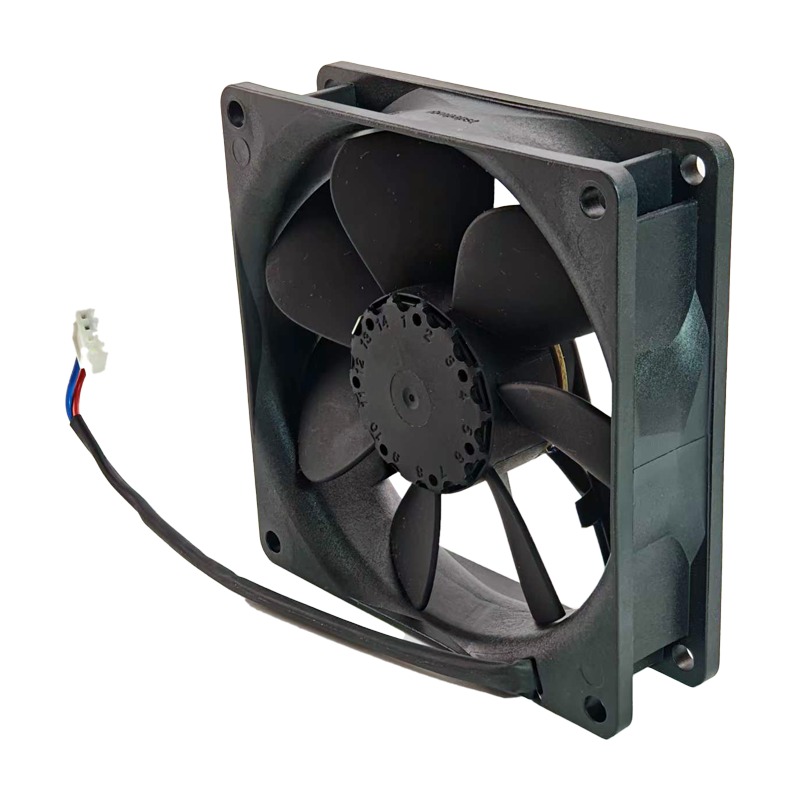

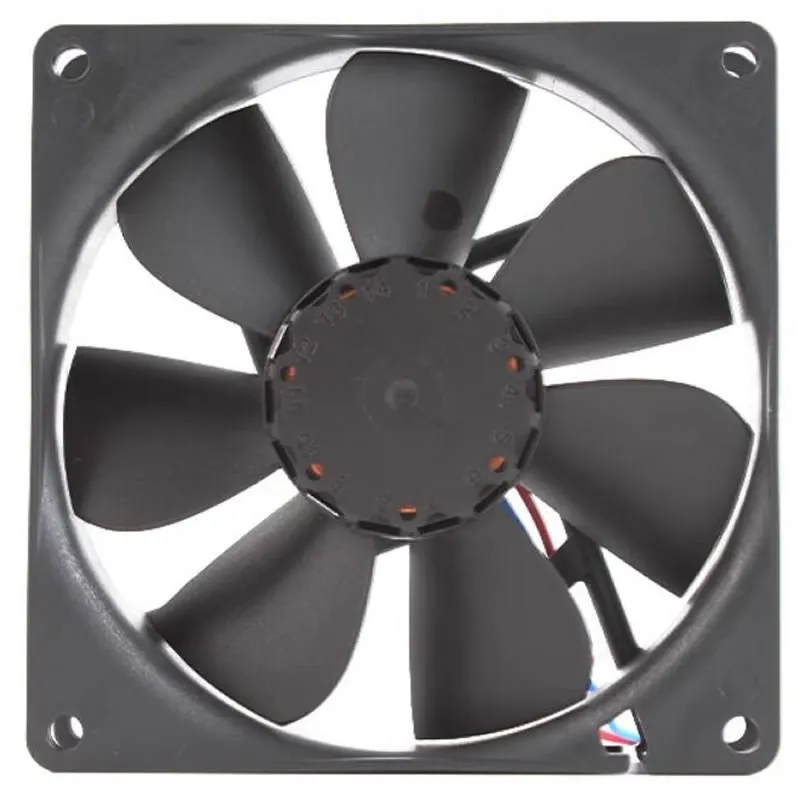

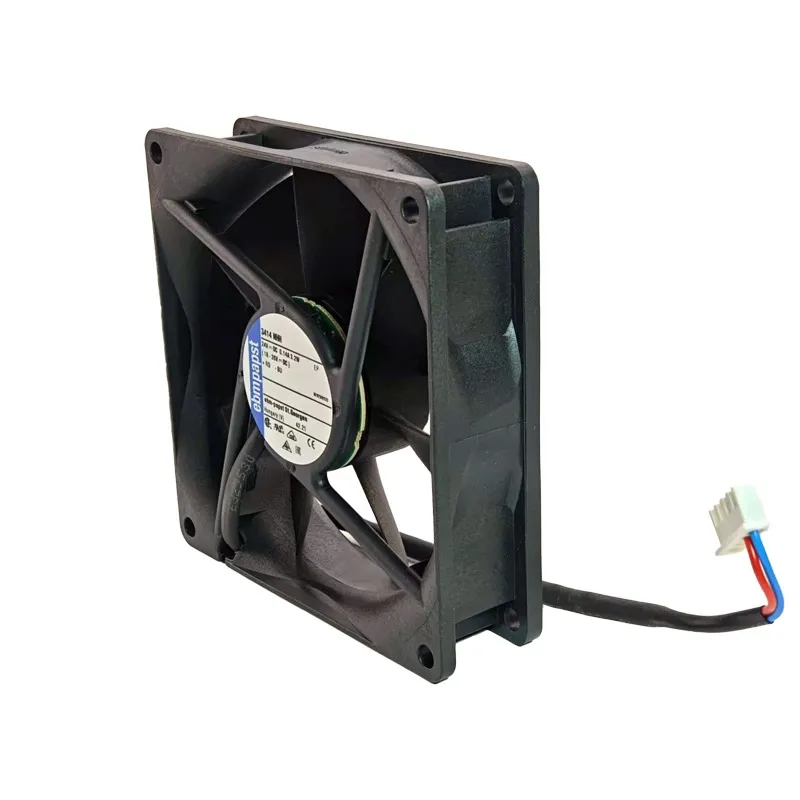

3414NHH ebmpapst DC24V 0.14A 3.2W Inverter fan

Description

Model:3414NHH
Brand:ebmpapst
Type of voltage:DC
Nominal voltage:24V
Nominal voltage range:18 .. 26V
Speed: 3250min-1
Power input:1W
Min. ambient temperature:-20°C
Max. ambient temperature:70°C
Air flow: 102m³/h
Sound power level:5,1B
Sound pressure level:39dB(A)
Weight:0.100 kg
Dimensions:92x92x25 mm
Impeller material::Glass-fiber reinforced PA plastic
Housing material:Glass-fiber reinforced PBT plastic
Airflow direction:Exhaust over struts
Direction of rotation:Counterclockwise, viewed toward rotor
Bearing:Ball bearing
Service life L10 at 40 °C:70000 h
Service life L10 at maximum temperature:35000 h
Cable:Leads AWG 24, TR 64, stripped and tin-plated.
Motor protection:Protection against reverse polarity and blocked rotor.
Approval: VDE, CSA, UL
Option:Alarm signal
