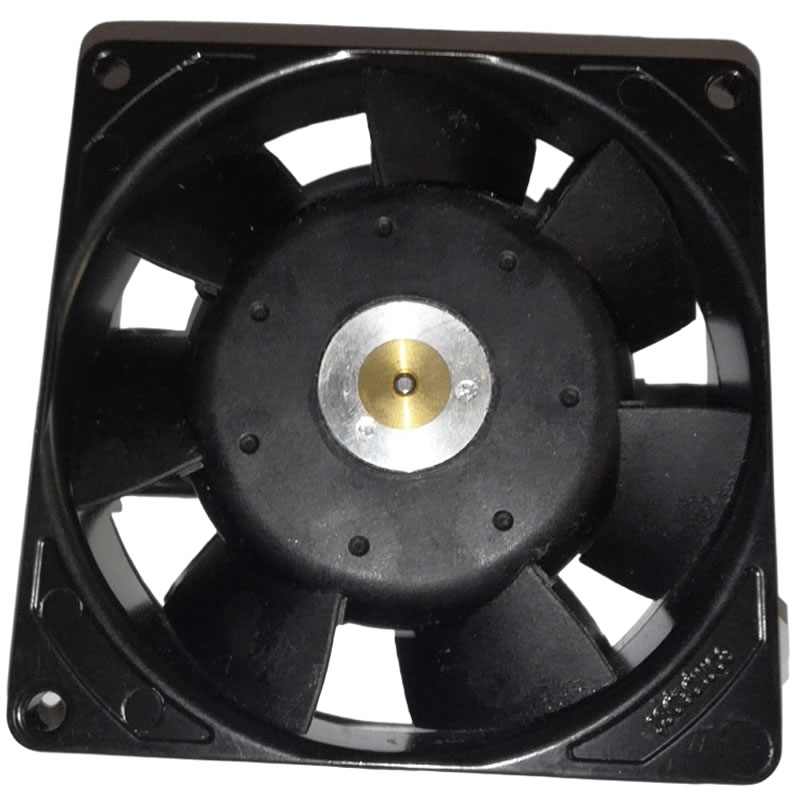

3950 ebmpapst 230VAC axial compact fan

Description

Model:3950
Manufacturer: EBM-PAPST ebmpapst

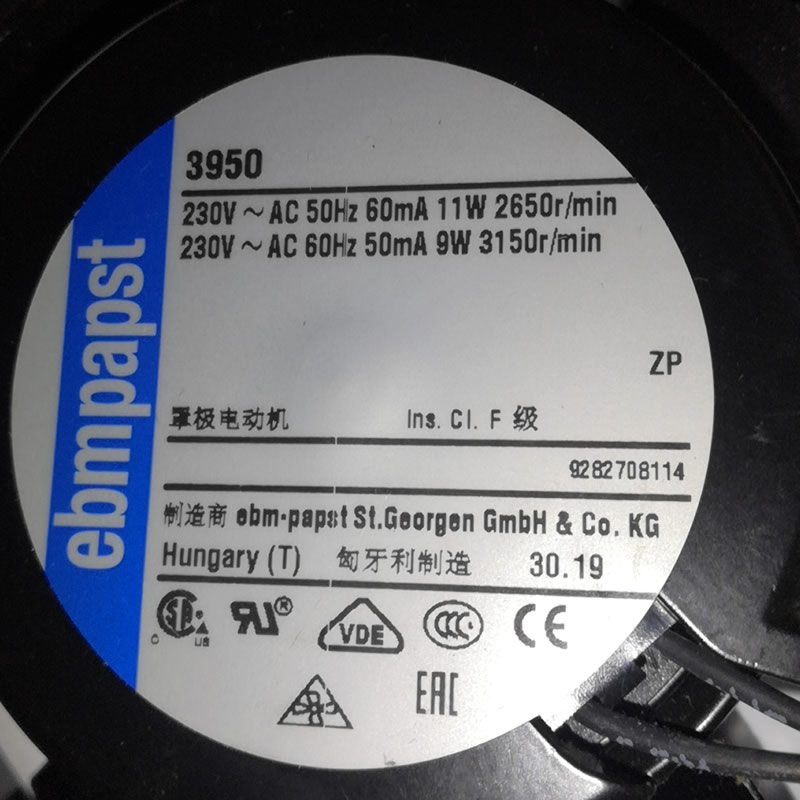

Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Power: 11 W
Rated Speed: 2650 min⁻¹
Airflow: 59 m³/h
Noise Level: 35 dB
Dimensions: 92 x 92 x 25 mm
Weight: 0.280 kg
Housing Material: Die-cast aluminum
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward the rotor
Bearing Type: Sintec sleeve bearing
Electrical Connection: Usually connected via 2 flat plugs, with an M4 grounding lug.
Protection Class: IP20
Environment and Certifications:
Minimum Ambient Temperature: -20 °C
Maximum Ambient Temperature: +80 °C
Operating Mode: S1
Service life L10 at 40 °C: 55000 hours
Compliance: Typically conforms to relevant safety and performance standards.
Type: ebmpapst AC Axial Compact Fan

The fan used in the device SK3237.600 RITTAL is also 3950 ebmpapst. If you want SK3237.600 RITTAL, please contact our customer service
