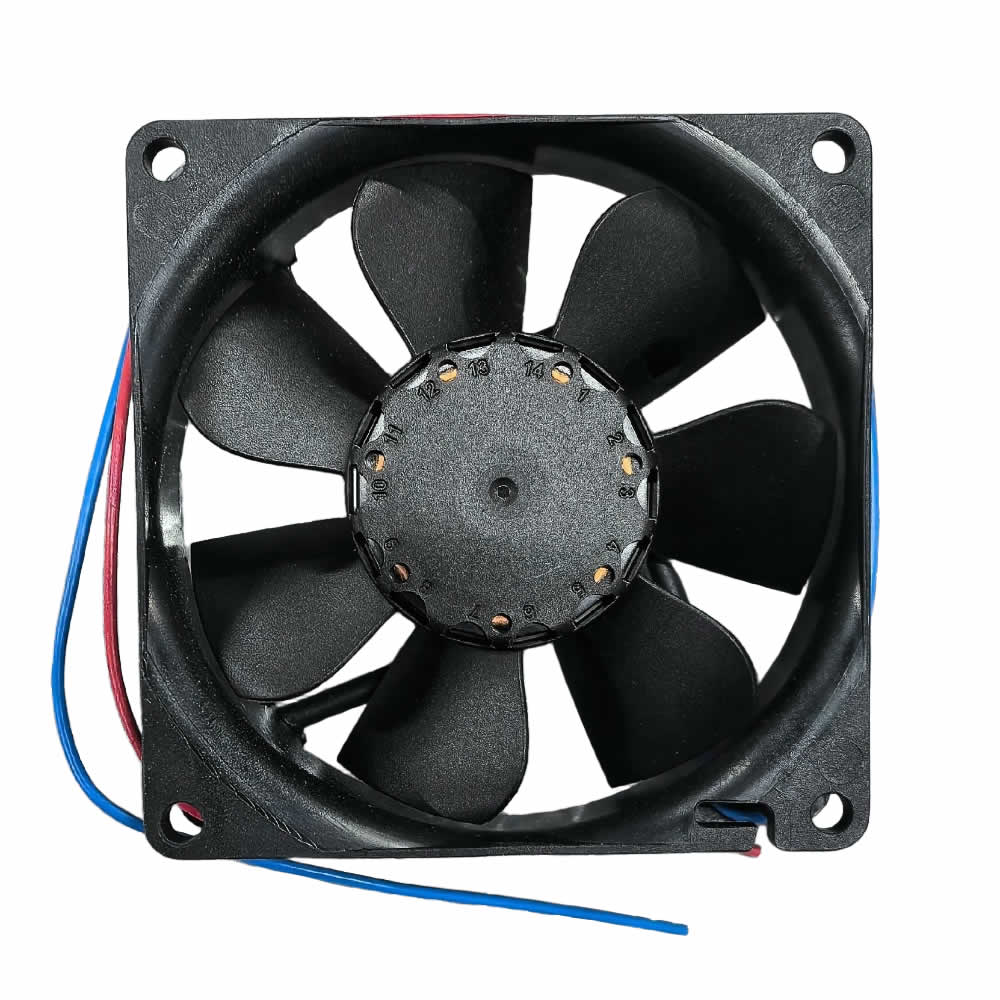

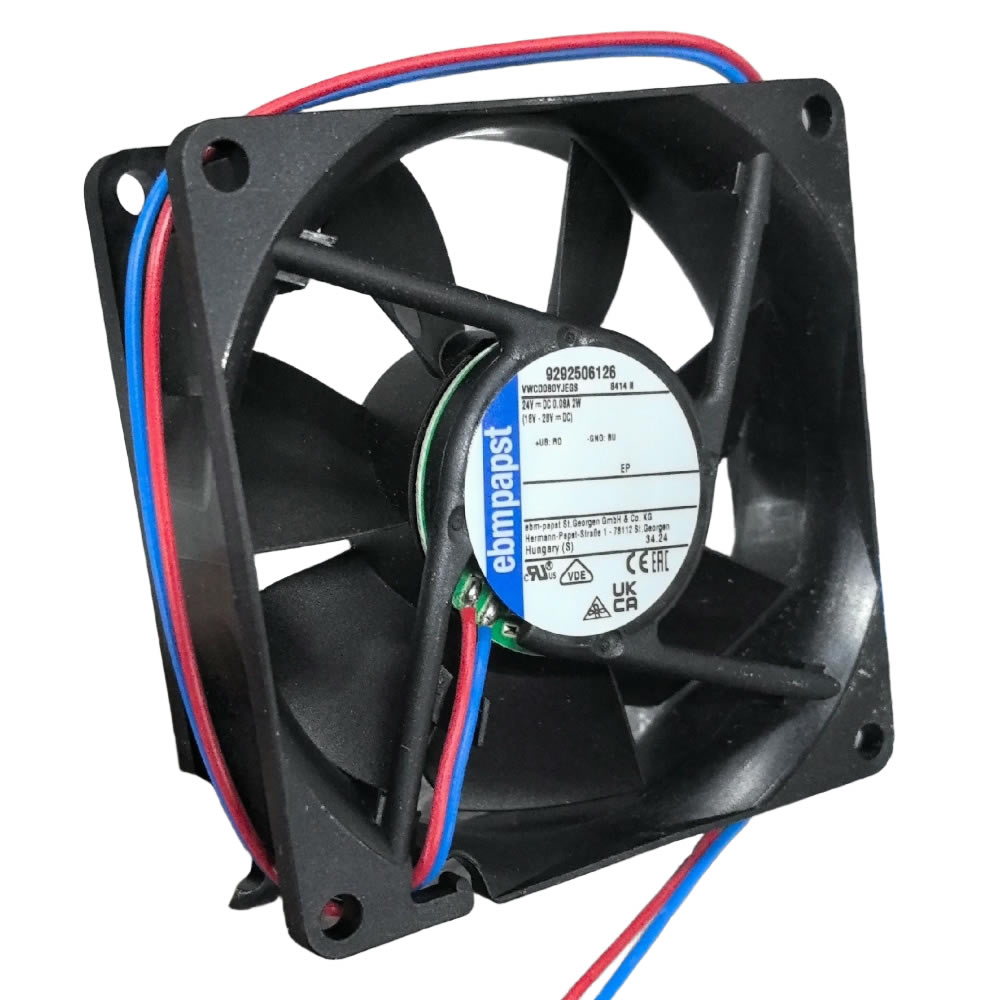

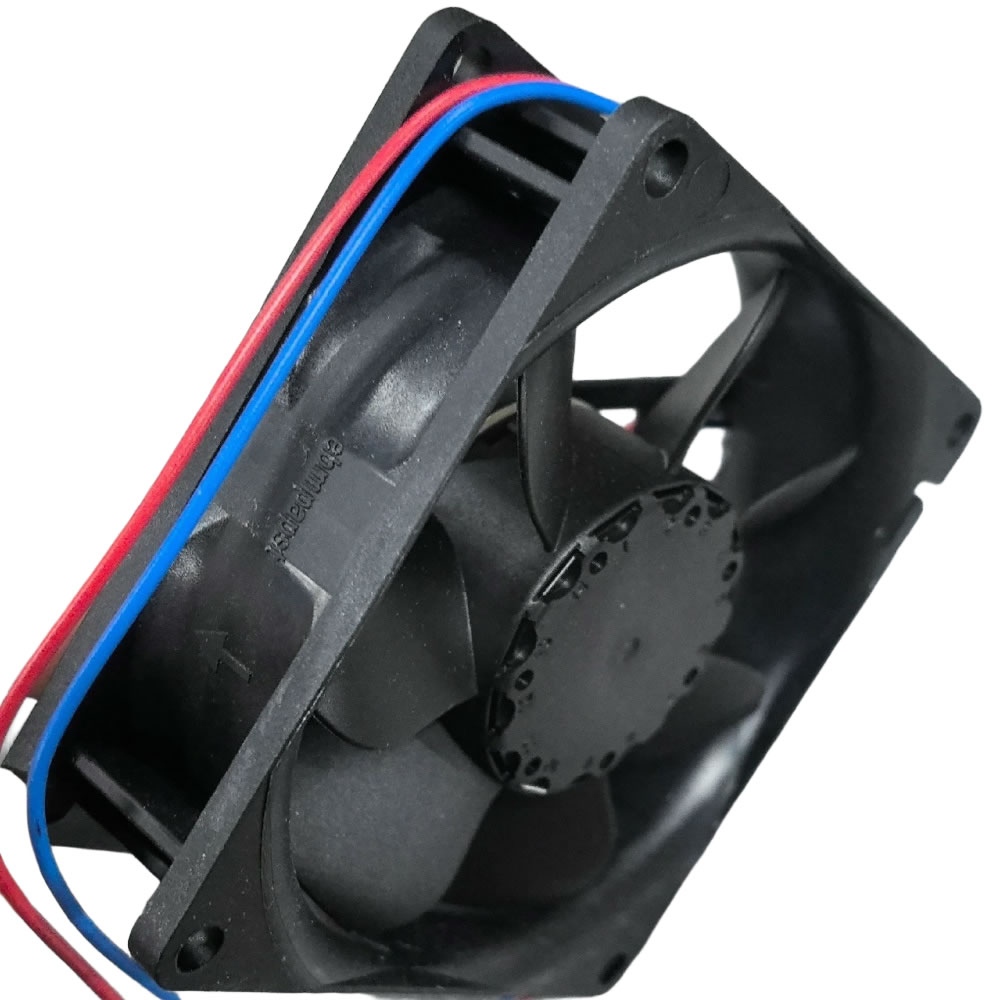

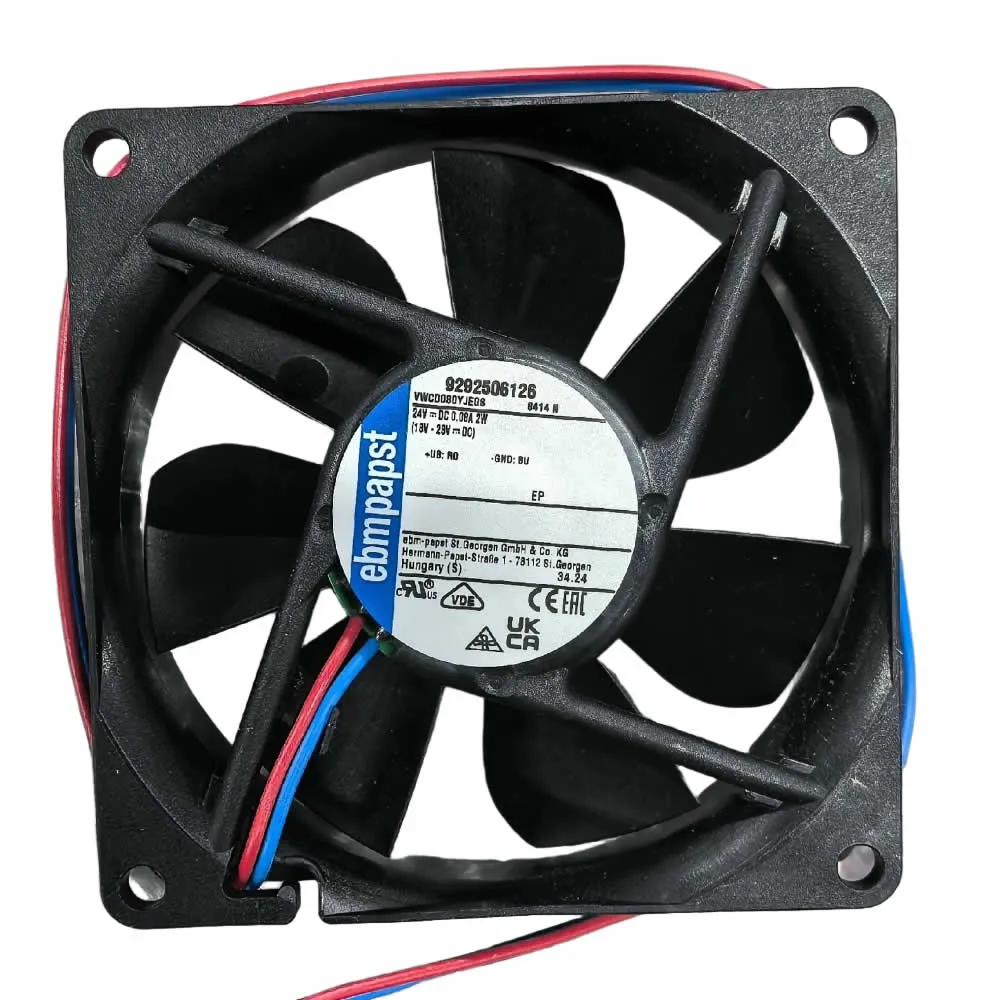

8414N ebmpapst DC24V 0.08A 2W 2-wire axial fan

Description

Model:8414N
Part number:9292506126
Manufacturer: ebmpapst EBM-PAPST
Series: 8400N Series
Rated Voltage: 24VDC
Voltage Range: 18 – 28 VDC
Rated Power:2W
Rated Current: 0.08A
Rated Speed: 3100min⁻¹ RPM
Airflow: 69m³/h
Noise Level: 32dB(A)
Dimensions: 80x80x25 mm
Weight: 0.095 kg or 95 g
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Airflow Direction: Air exhaust over struts
Bearing Type: Ball bearing
Electrical Connection: 2 leads, 2-wire
Lead Length: 0.31 m
Protection Class: IP20
Minimum Ambient Temperature: -20 °C
Maximum Ambient Temperature: +70 °C
Operating Mode: S1
Service life L10 at 40 °C: 70,000 hours
Service life L10 at maximum temperature: 35,000 hours
Certifications: VDE, CSA, UL, CE
Type: DC Axial Compact Fan

8414N is a compact and efficient 24VDC axial fan. Its 80x80x25mm size makes it ideal for space-constrained applications. With a speed of 3100 RPM and an airflow of 69 m³/h, along with a low noise level of 32 dB(A), it provides effective cooling while operating relatively quietly. The ball bearings ensure a long service life and reliability. This fan is commonly used in electronic devices, small servers, control cabinets, medical instruments, and other applications that require stable airflow and reliable heat dissipation.
