Description

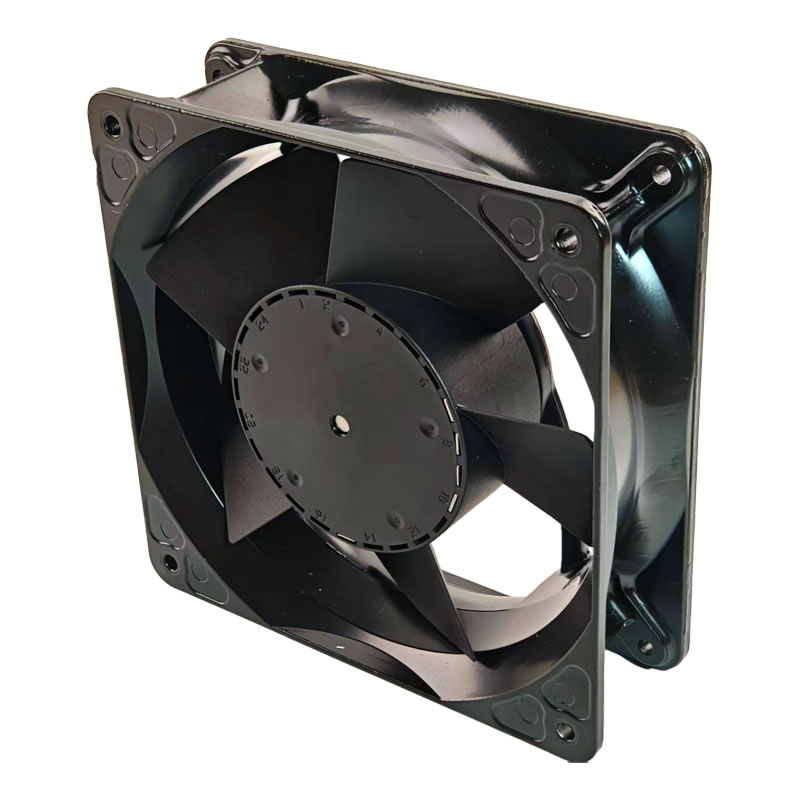

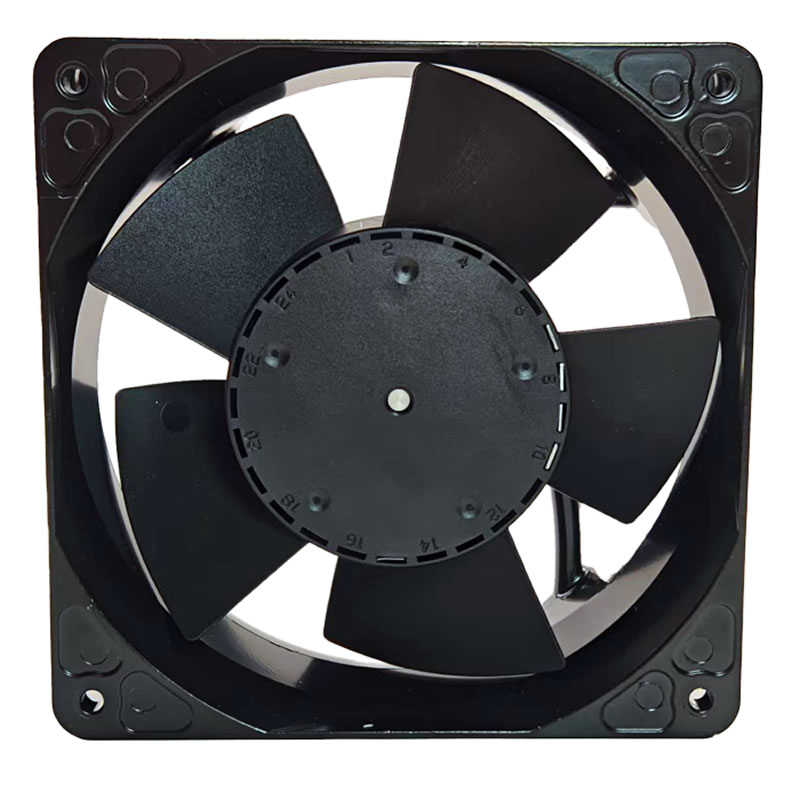

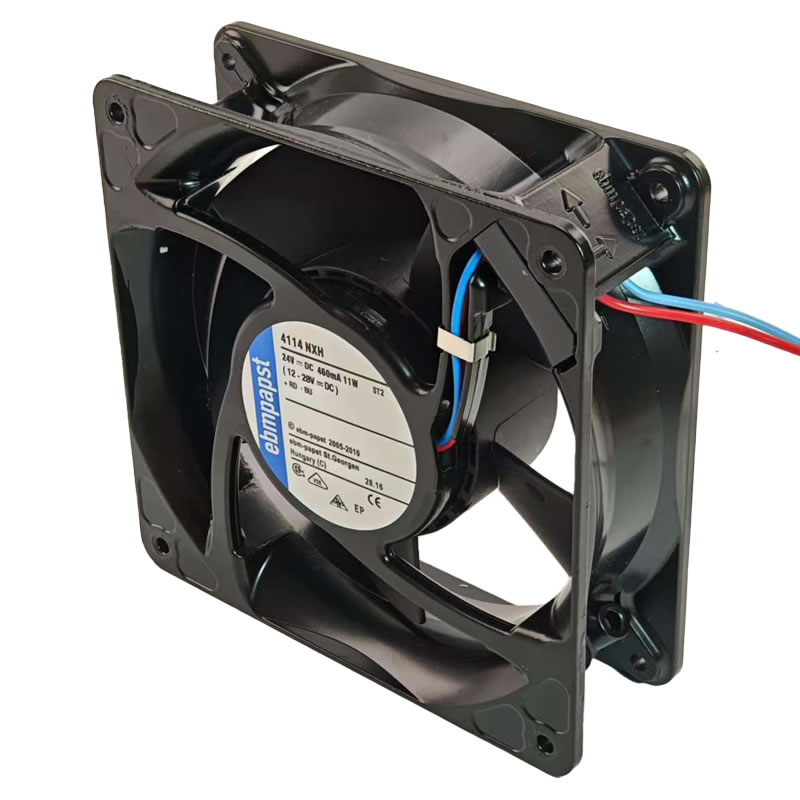

The ebmpapst 4114NXH is a high-performance 120mm axial DC fan designed for robust cooling in industrial, server, and other demanding electronic applications. It operates with a nominal voltage of 24V DC, but has a wide operating voltage range of 12V to 28V DC, providing flexibility in various power environments. It delivers a significant airflow of up to 139.5 CFM with a high static pressure, making it effective in overcoming resistance in crowded enclosures or with dense heatsinks. Featuring ball bearings, it ensures a long and reliable operational lifespan even under continuous use. While it generates a notable noise level of up to 59 dBA at full speed, its design prioritizes powerful and consistent airflow for critical equipment. It typically connects via 2-wire leads, offering straightforward power and ground connections.
Model: 4114NXH
Manufacturer: ebmpapst
Type: Axial Fan
Fan Dimensions:120x120x38mm
Nominal Voltage: DC 24V
Operating Voltage Range: DC 12V to 28V
Rated Current: 460mA
Rated Power: 11W
Maximum Rotational Speed: 4400 RPM
Maximum Airflow: 139.5 CFM
Noise Level: 57-59 dBA
Bearing Type: Ball Bearing
Connector: 2-Wire Leads
