Description

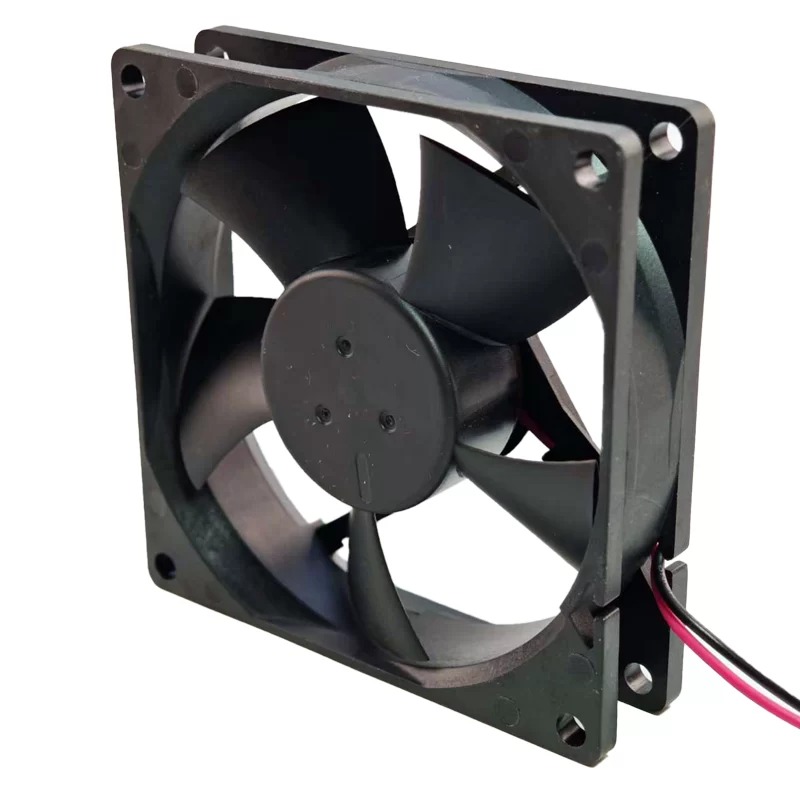

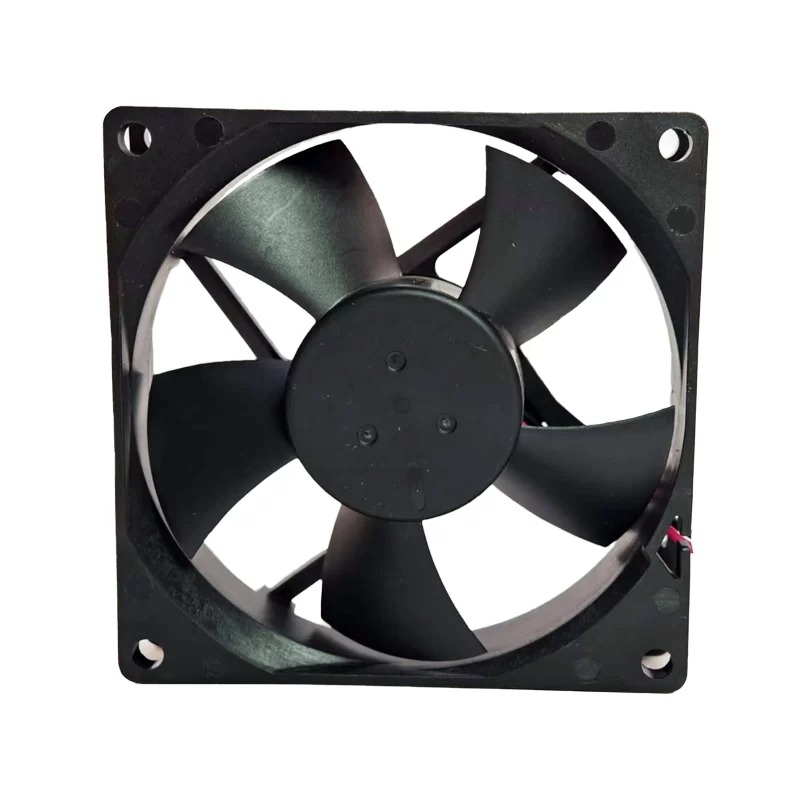

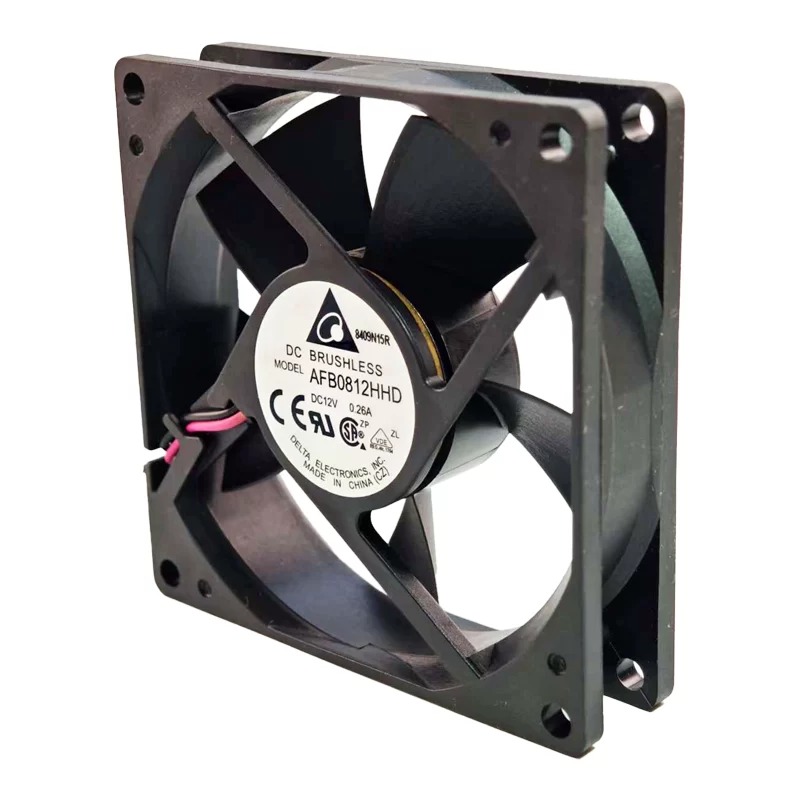

Model: AFB0812HHD
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 80x80x20mm
Nominal Voltage: 12VDC
Current: 0.26A
Power Consumption: 3.12W
Speed: 4200RPM
Airflow: 49.34CFM
Static Pressure: 0.249 In H2O
Noise Level: 40 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Termination: 2-wire leads
Frame and Blade Material: Plastic
Features: Locked Rotor Protection, Auto-Restart
The Delta AFB0812HHD is a reliable and efficient 12V DC axial fan measuring 80x80x20mm, designed for general-purpose cooling in various electronic systems. Featuring ball bearings, it ensures long-term durability and a substantial operational lifespan of 70,000 hours. This fan delivers a notable 49.34 CFM of airflow and a static pressure of 0.249 In H2O at 4200 RPM, making it effective for dissipating heat from components in desktop computers, small servers, power supplies, and various industrial or embedded systems. With a noise level of 40 dBA, the AFB0812HHD offers a balanced performance of cooling capacity and acoustic output.
