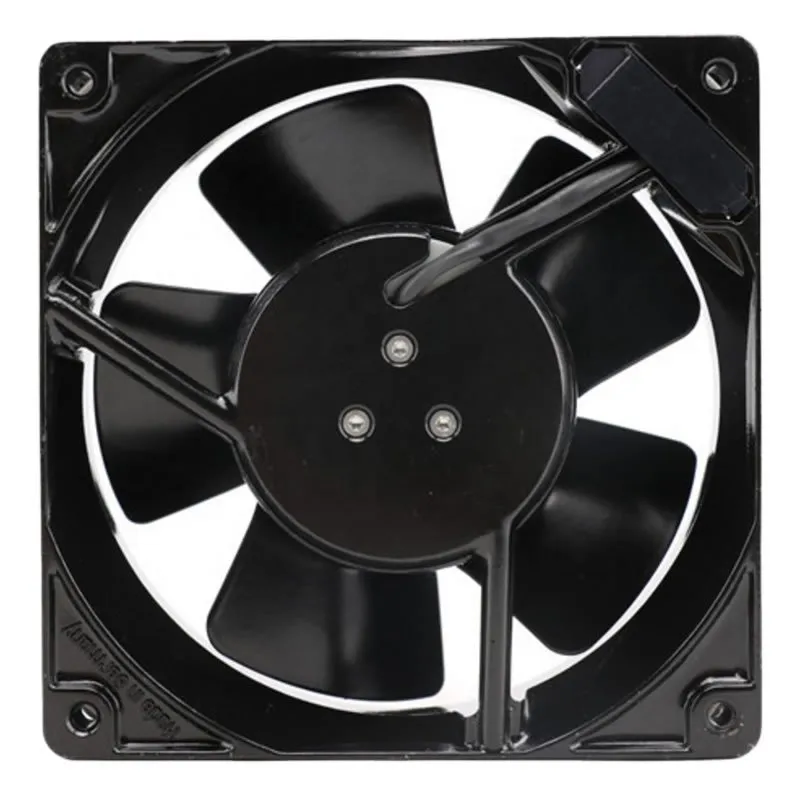

4600Z ebmpapst AC axial compact fan

$29.99

1000 in stock

SKU: 4600Z Category: Brand:

Description

Model:4600Z
Manufacturer: ebmpapst
Type of fan:AC
Kind of fan:axial
Operating voltage:115V AC
Fan dimensions:119x119x38mm
Power consumption:18W
Fan efficiency:180m3/h
Noise level:45dBA
Kind of Bearing:slide bearing
Rotational rate/speed:3100rpm
Impeller material:metal
Enclosure material:aluminium
Leads:2,8×0,5mm connectors
Supply voltage frequency:60Hz
Weight:540g
Termination:2 Terminals
Operating Temperature:(-10 ~ 60°C)
Approval Agency:CE, CSA, UL, VDE
Material – Frame:Metal
Material – Blade:Metal
Lifetime @ Temp:40000 Hrs @ 40°C

Key Features and Benefits of the EBM Papst 4600 Z Series
• Fan motor integrated into the impeller hub to form a compact fan unit
• Air exhaust over the struts
• External rotor shaded pole motor
• Compact 119 x 119 mm design with small installation depth of 38 mm
• Expertly designed for maximum efficiency and performance
• Aerodynamic blades for low noise level and increased efficiency
• Choice of bearing types including PAPST Sintec sleeve bearings for low noise and low shock sensitivity
• Flanged housings with mounting holes for installation into equipment
• Diecast alloy housing for a robust construction
• IP20 protection rating
• Protection from overload by impedance protection
• Long service life

Applications:
These compact AC axial fans are designed for hot or cold air exchange in a wide range of devices and systems. These applications include the following:
• Catering
• Domestic Appliances
• Enclosures
• Fans, motors and pumps
• Heating and ventilation
• Industrial drives
• Instruments
• Lighting
• Machines and Industrial
• Medical
• Power Supplies
• Printing
• Telecom
• UV systems

Additional information

Weight1 kg
Type

4600 Z

Phase

1~

Nominal voltage

115VAC

Frequency

60Hz

Speed (rpm)

3100min-1

Power consumption

18.0W

Min. ambient temperature

-10°C

Max. ambient temperature

60°C

Air flow

180m3/h

Sound power leve

5.6B

Sound pressure level

45dB(A)

Dimensions

119x119x38mm

Impeller material

Sheet steel, painted black

Housing material

Die-cast aluminum

Airflow direction

Exhaust over struts

Direction of rotation

Clockwise, viewed toward rotor

Storage

Sintec sleeve bearing

Service life L10 at 40 °C

40000h

Service life L10 at maximum temperature

25000h

Cable

2 flat plugs 2.8 x 0.5 mm. Housing with grounding lug for M4 x 8

Motor protection

Protected from overload by impedance protection

Approval

VDE, CSA, UL, CE

Option

Electrical hookup to leads, 310 mm long, is available.

Brand

ebm papst
