$199.00
1000 in stock

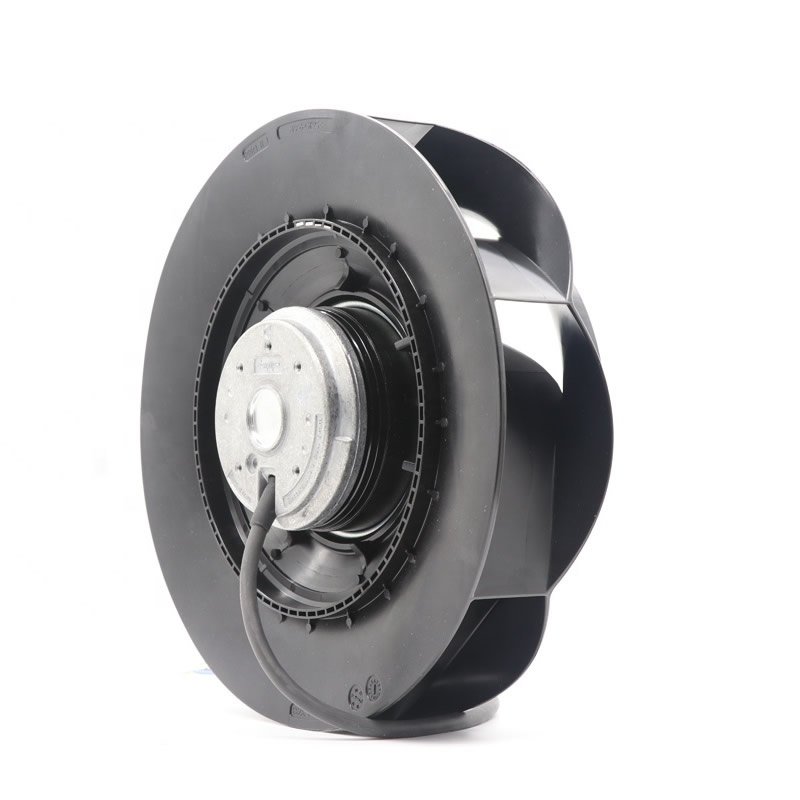

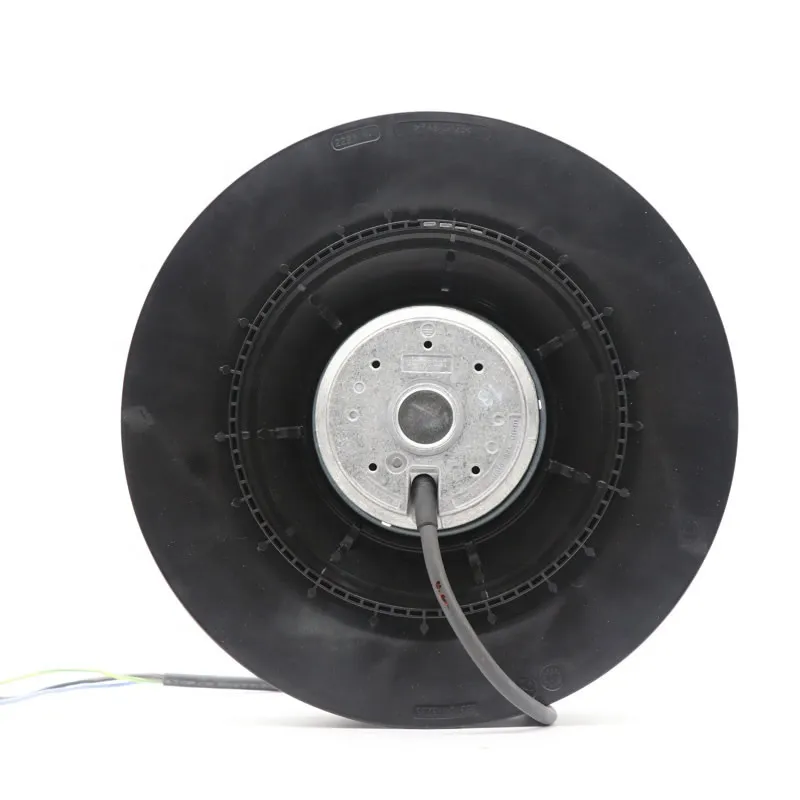

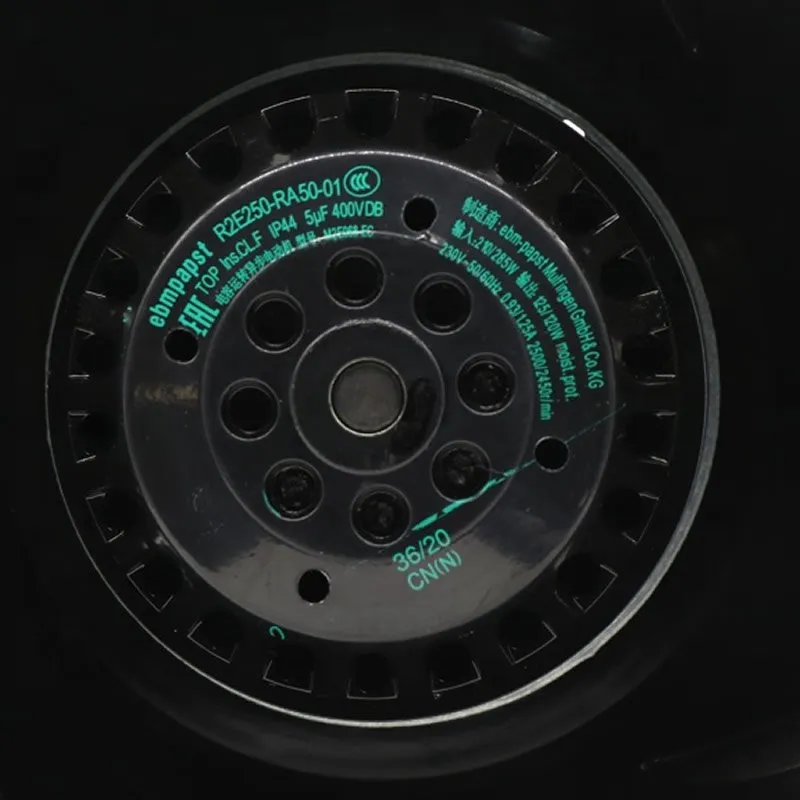

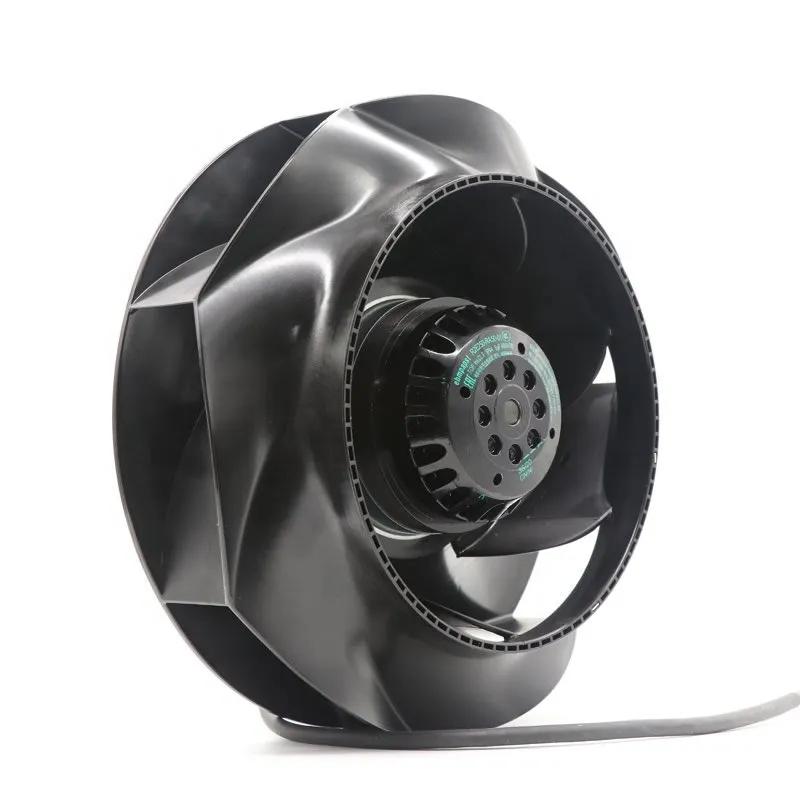

Model:R2E250-RA50-01
Manufacturer:ebmpapst
Current Type:AC
Operating Supply Voltage:230 VAC
Bearing Type:Ball
Speed:2500 RPM
Power Rating:210 W
Height:250 mm
Depth:99 mm
Width:250 mm
Termination Style:Wire Leads
Series:R2E250
IP Rating:IP44
| Weight | 3 kg |
|---|---|
| Type | R2E250-RA50-01 |
| Motor | M2E068-EC |
| Phase | 1~ |
| Nominal voltage | 230VAC |
| Frequency | 50Hz |
| Method of obtaining data | ml |
| Speed (rpm) | 2500 |
| Power consumption | 210W |
| Current draw | 0.93A |
| Capacitor | 5µF |
| Capacitor voltage | 400VDB |
| Capacitor standard | S0 (CE) |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 70°C |
| Starting current | 1.5A |
| Size | 250mm |
| Motor size | 68 |
| Rotor surface | Painted black |
| Number of blades | 7 |
| Direction of rotation | IP44; installation- and position-dependent as per EN 60034-5 |
| Insulation class | "F" |
| Moisture (F) / Environmental (H) protection class | H1 |
| Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
| Min. permitted ambient temp. for motor (transport/storage) | – 40 °C |
| Installation position | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation drainage holes | On rotor side |
| Mode | S1 |
| Motor bearing | Ball bearing |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) | < 0.75 mA |
| Motor protection | Thermal overload protector (TOP) internally connected |
| With cable | Variable |
| Protection class | I (with customer connection of protective earth) |
| Conformity with standards | EN 60335-1 |
| Approval | CCC; EAC |
