Description

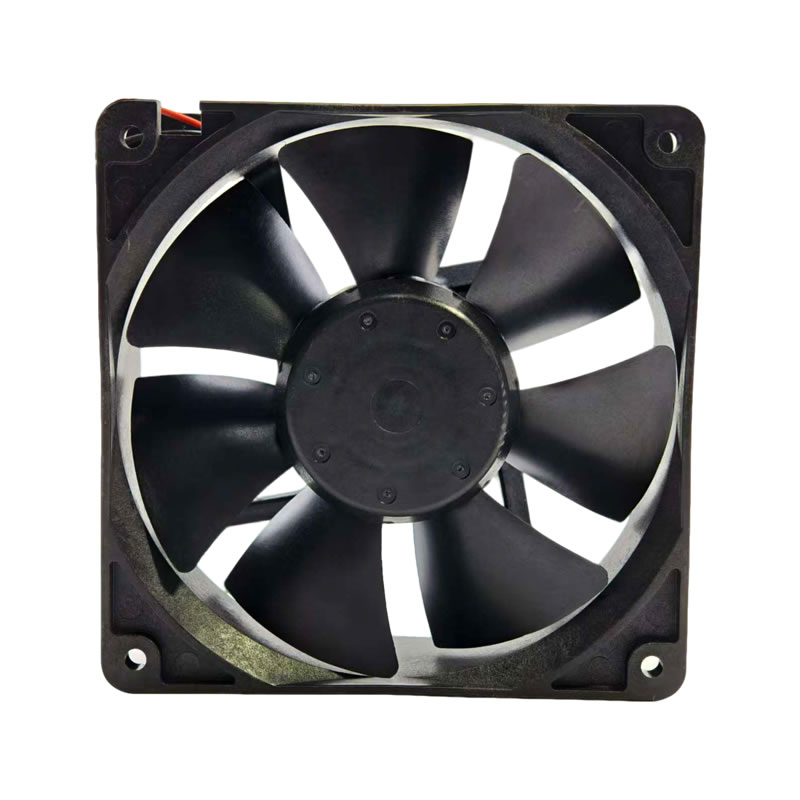

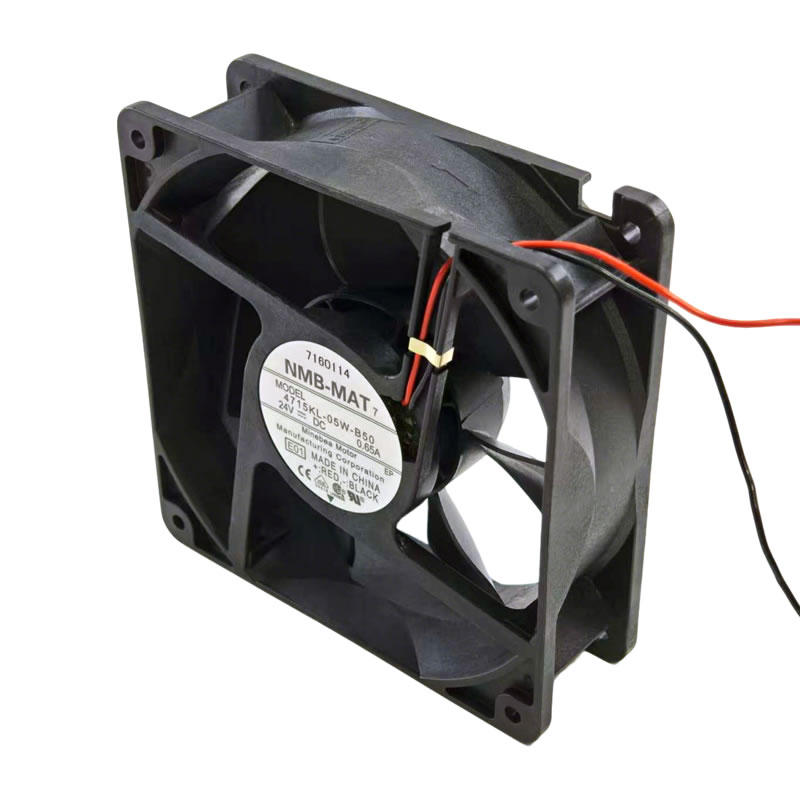

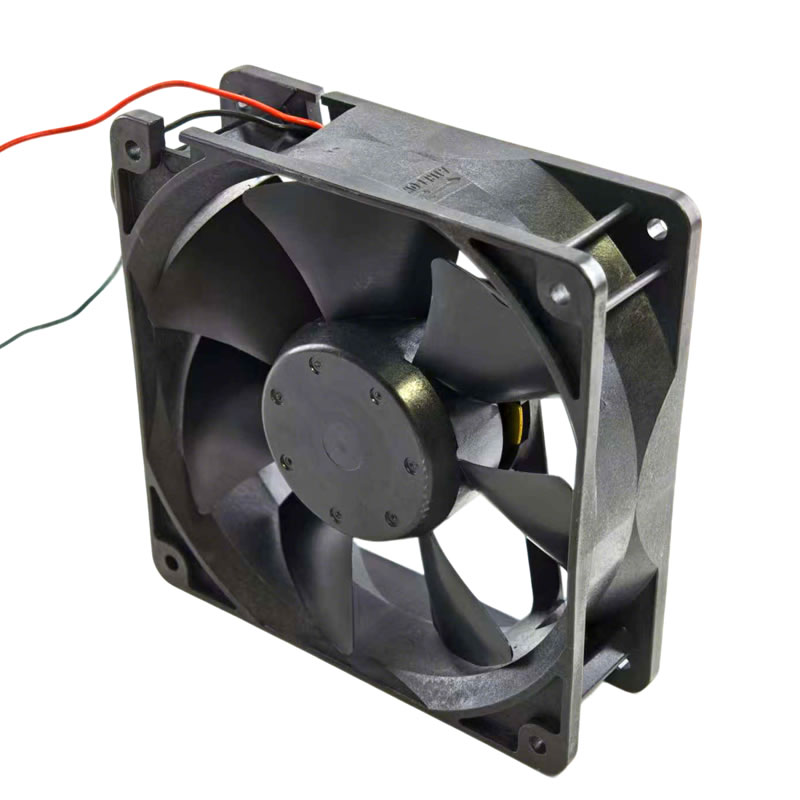

The NMB 4715KL-05W-B50-E01 is a DC axial fan with dimensions of 120 x 120 x 38 mm. It operates on 24V DC, drawing 0.65 A of current and consuming 15.6 W of power. The fan provides an airflow of 130 CFM (221.0 m³/h) and generates a static pressure of 0.44 inch H₂O (109.6 Pa). It runs at a speed of 3600 RPM with a noise level of 50 dB(A). The fan uses ball bearings for enhanced durability and features two-wire leads. This fan is suitable for demanding cooling applications.
4715KL-05W-B50-E01 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 4715KL-05W-B50-E01
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Current Rating: 0.65 A
Power Consumption: 15.6 W
Airflow: 130 CFM (221.0 m³/h)
Static Pressure: 0.44 inch H₂O (109.6 Pa)
Speed: 3600 RPM
Noise Level: 50 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94-0)
Impeller Material: Thermoplastic (UL94-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 260 g
Application: The 4715KL-05W-B50-E01 is a powerful DC axial fan designed for effective cooling in applications requiring substantial airflow and moderate static pressure. Its specifications make it suitable for industrial equipment, server cooling, telecommunications devices, and other systems where reliable thermal management is essential. The robust construction and performance characteristics ensure efficient heat dissipation for components that generate significant heat.
