Description

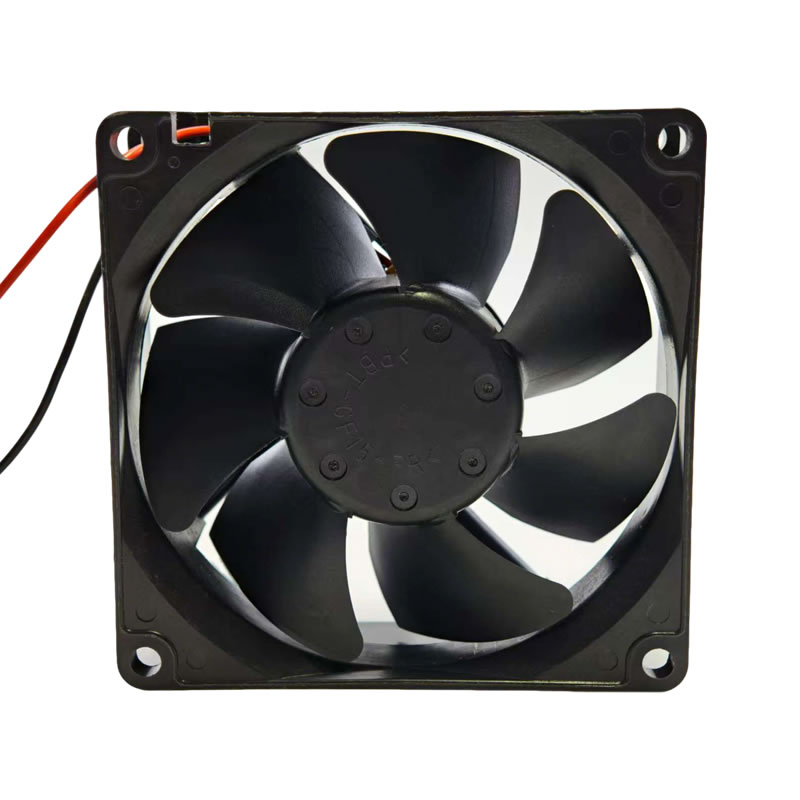

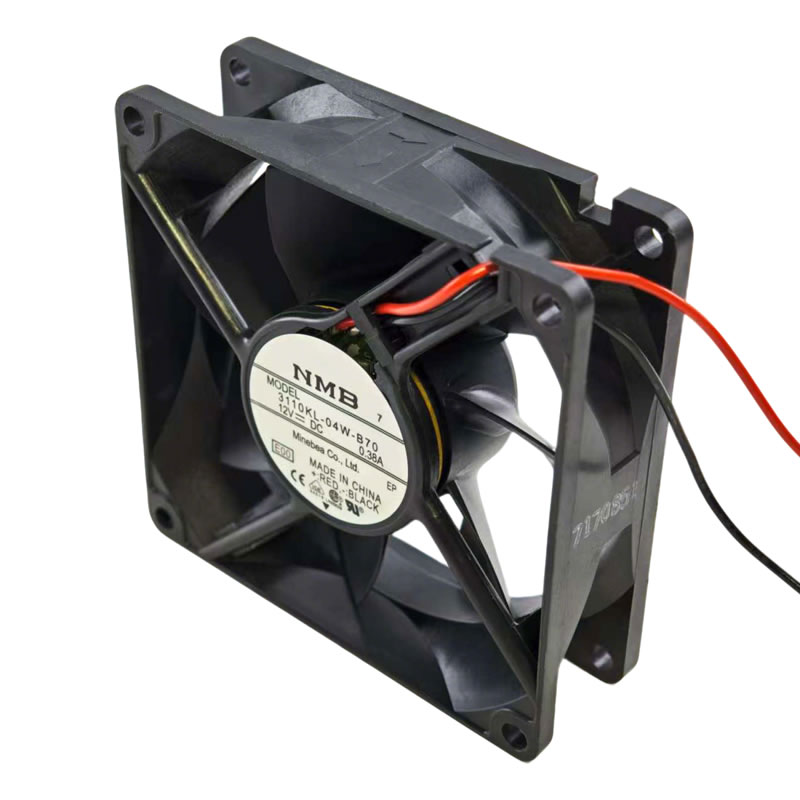

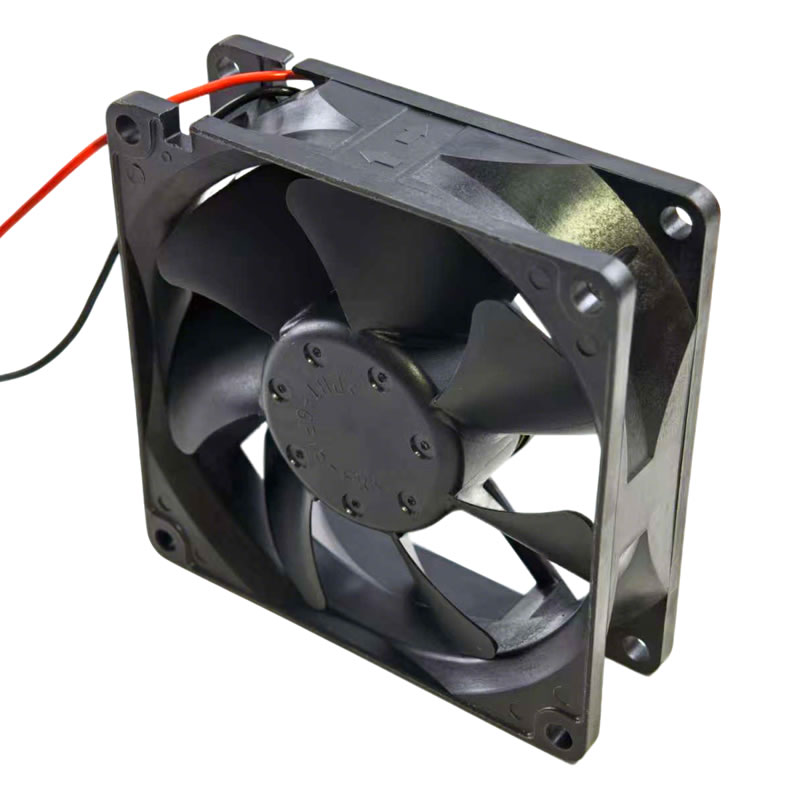

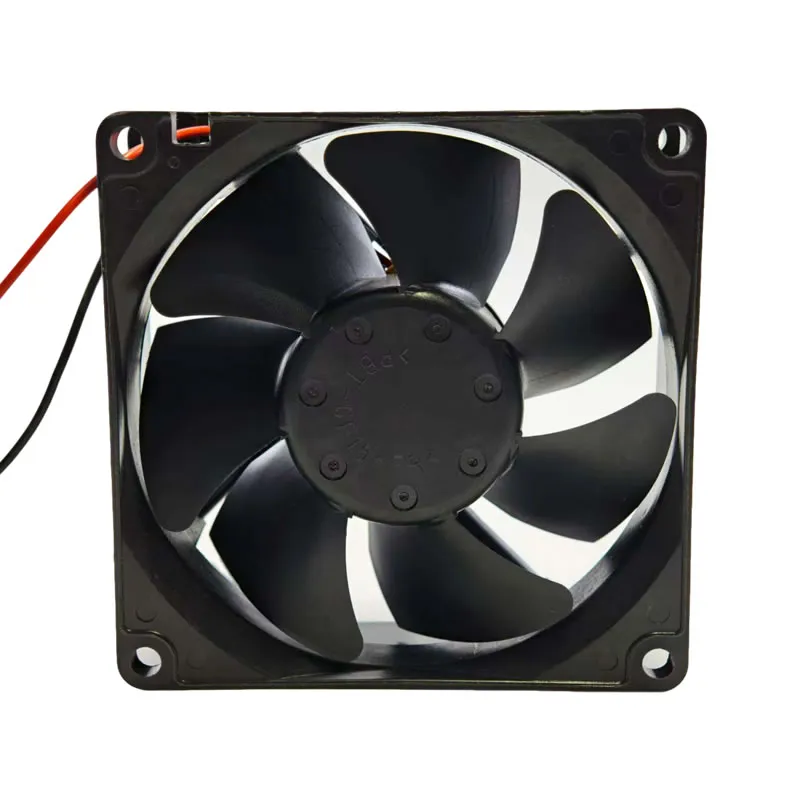

The NMB 3110KL-04W-B70-E00 is a DC axial fan measuring 80 x 80 x 25 mm. It operates on 12V DC, drawing a current of 0.209 A and consuming 3.86 W of power. The fan provides an airflow of 45.9 CFM (78.0 m³/h) and generates a static pressure of 0.258 inch H₂O (64.3 Pa). It runs at a speed of 4000 RPM with a noise level of 40 dB(A). The fan uses ball bearings for enhanced durability and features two-wire leads. This fan is suitable for cooling applications that require a good balance of performance and quiet operation.
3110KL-04W-B70-E00 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 3110KL-04W-B70-E00
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.209 A
Label Current: 0.38 A
Power Consumption: 3.86 W
Airflow: 45.9 CFM (78.0 m³/h)
Static Pressure: 0.258 inch H₂O (64.3 Pa)
Speed: 4000 RPM
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 95 g
Application
The 3110KL-04W-B70-E00 is a versatile DC axial fan designed for efficient cooling in various electronic systems. Its performance characteristics make it a reliable choice for industrial control cabinets, network routers, power supplies, and other electronic enclosures. The fan’s robust construction and reliable operation ensure effective thermal management for components that generate heat.
