Description

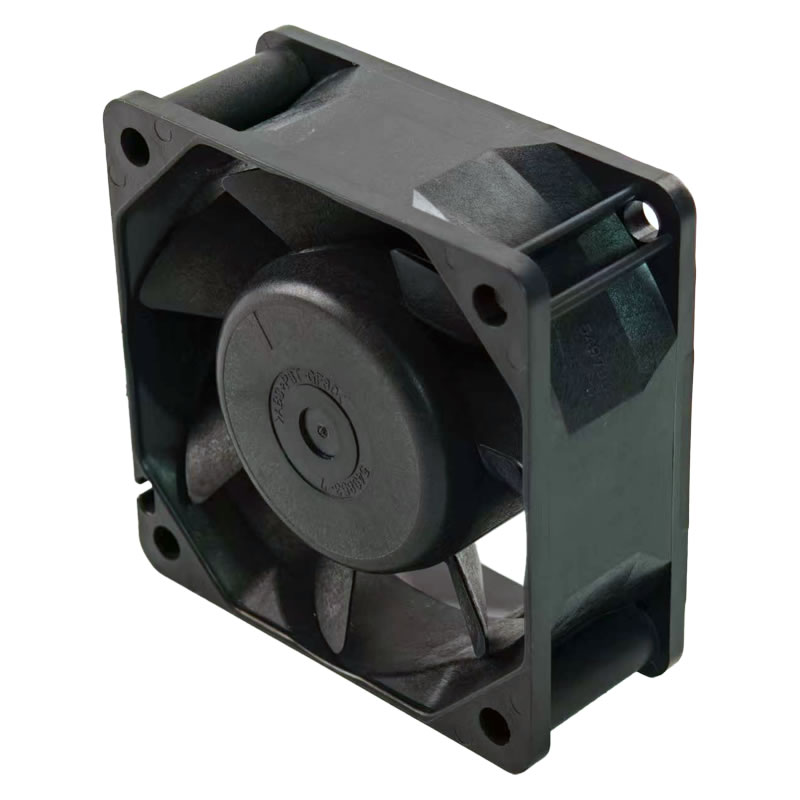

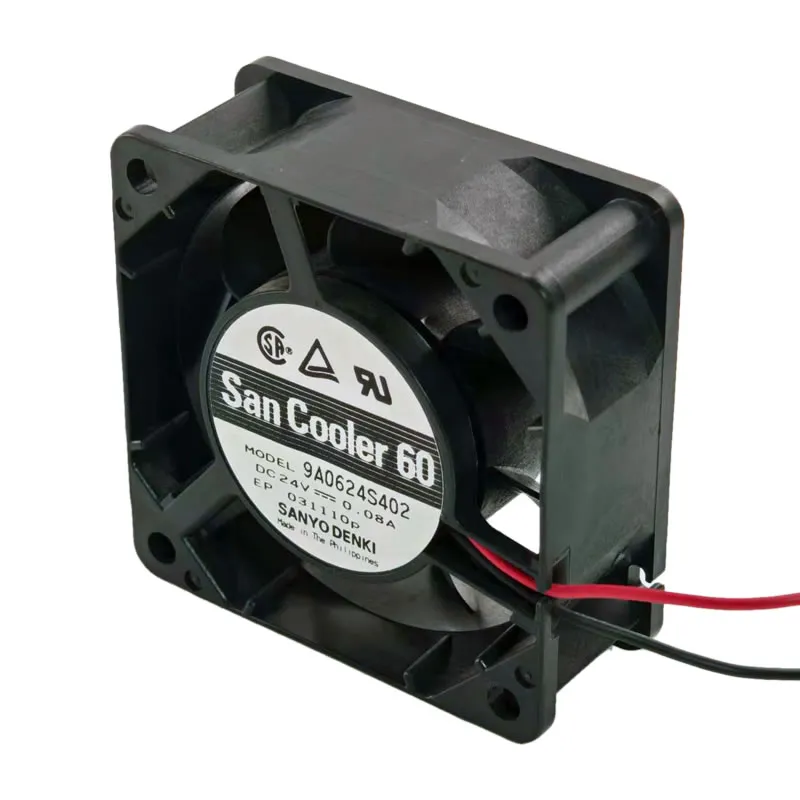

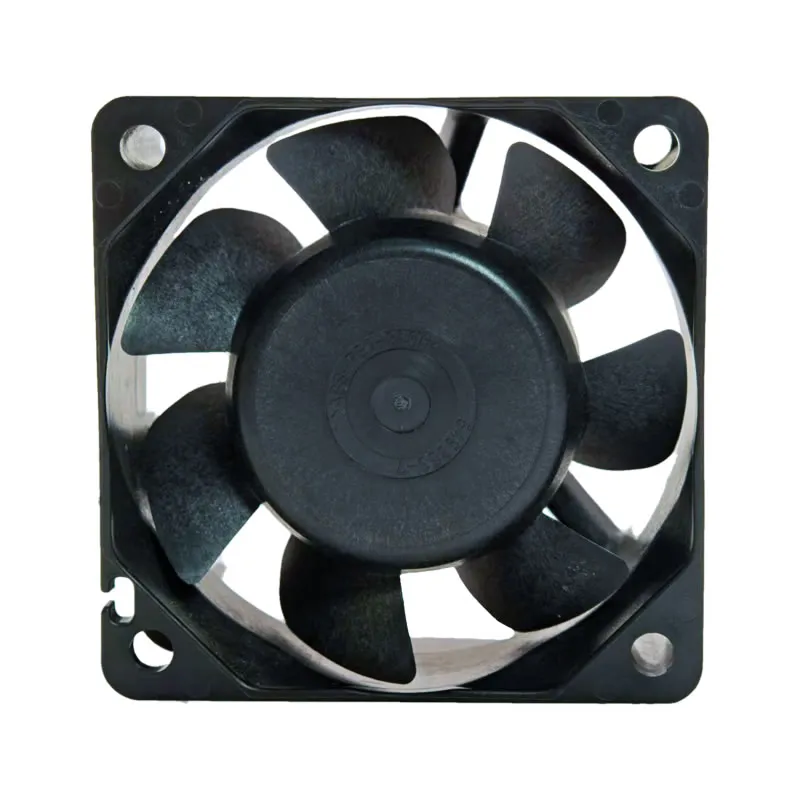

The Sanyo Denki 9A0624S402 is a compact 24V DC Axial Fan from the San Cooler 60 series, with dimensions of 60x60x25mm. Its rated current is 0.08A, resulting in a power consumption of 1.92W. The fan achieves a speed of 4600RPM, providing a maximum airflow of 65m³/h (23 CFM) and a maximum static pressure of 56.8Pa (0.23 inchH2O), with a noise level of 33dB(A). It is equipped with ball bearings and features a locked rotor sensor. The fan frame and impeller are typically made of plastic. It utilizes a 2-wire termination. This model is designed to operate within an ambient temperature range of -10 to 70°C and has a life expectancy of 60000 hours at 40°C. It is approved by CSA, TUV, and UL standards.
9A0624S402 Fan Parameters
Model: 9A0624S402
Manufacturer: Sanyo Denki
Series: San Cooler 60
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 24 V DC
Rated Current: 0.08 A
Power Rating: 1.92 W
Speed: 4600 RPM
Airflow: 65 m³/h (23 CFM)
Static Pressure: 56.8 Pa (0.23 inchH2O)
Noise: 33 dB(A)
Bearing Type: Ball Bearing
Housing Material: Plastic
Impeller Material: Plastic
Termination: 2-wire leads
Features: Locked Rotor Sensor
Approval: CSA, TUV, UL
Operating Temperature: -10 to 70 °C
Life Expectancy L10 at 40°C: 60000 h
Application: Suitable for electronic device cooling, compact space ventilation, and various cooling applications requiring reliable DC airflow.
