Description

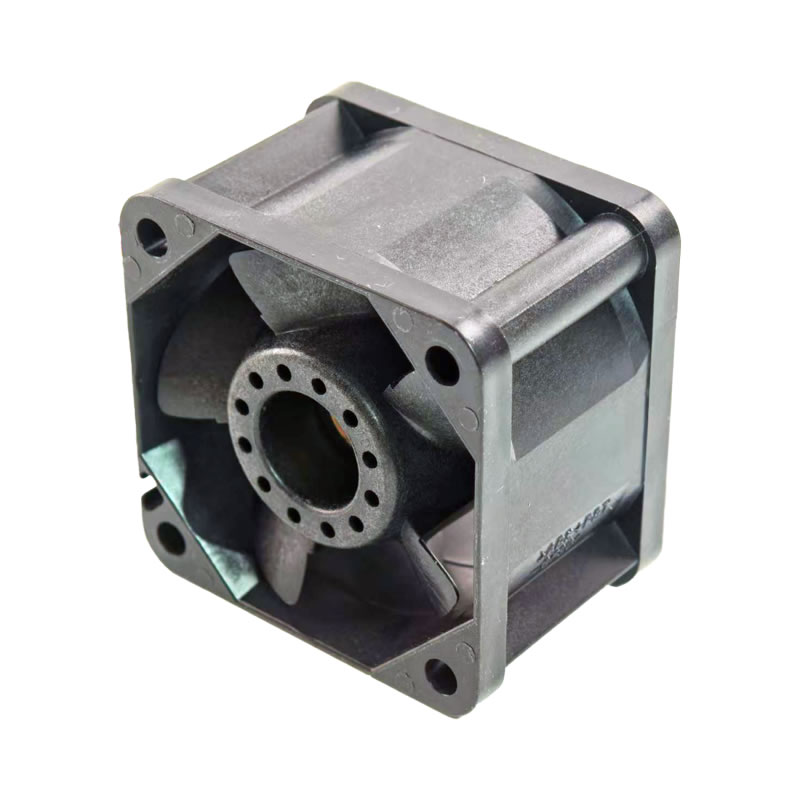

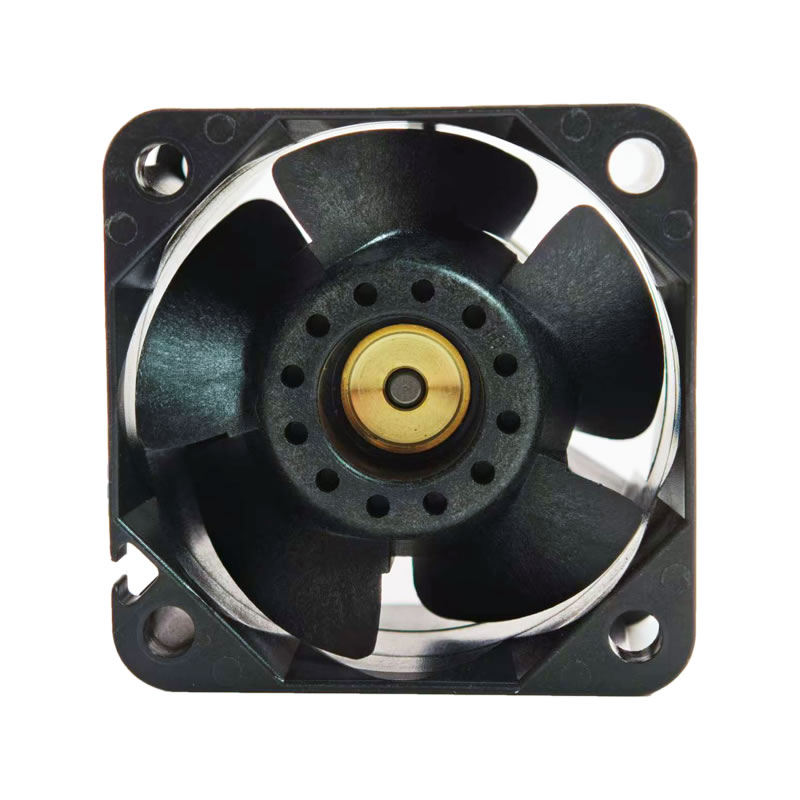

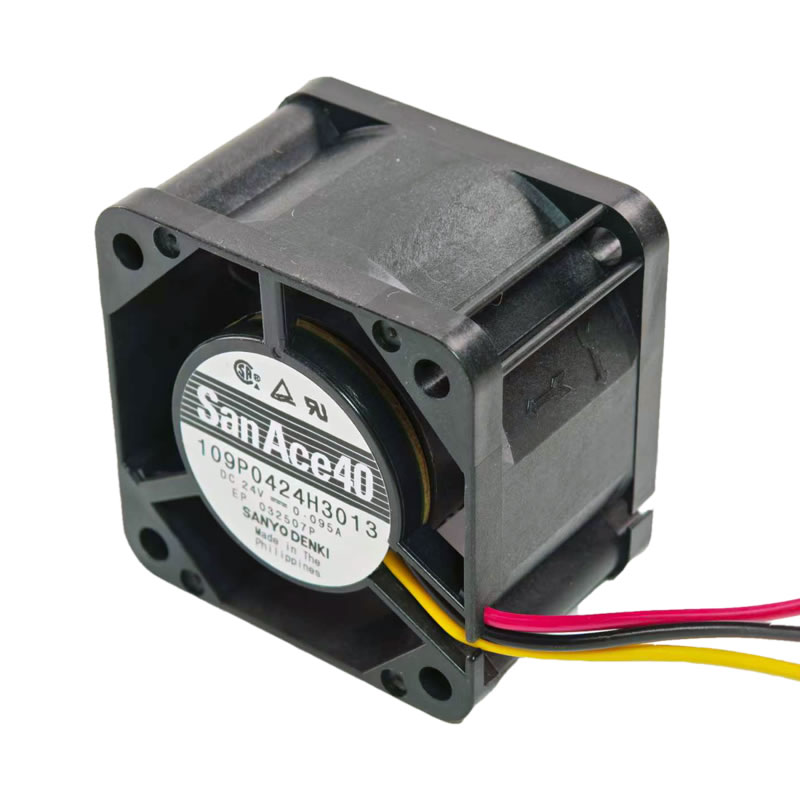

The Sanyo Denki 109P0424H3013 is a compact 24V DC Axial Fan with dimensions of 40x40x28mm. It operates within a voltage range of 13.8 to 27.6V DC. The fan has a rated current of 0.095A and a power consumption of 2.28W, achieving a speed of 2800RPM. It provides an airflow of 19.2m³/h (11.3 CFM) and a static pressure of 103.1Pa (0.414 inchH2O), with a noise level of 37dB(A). It is equipped with ball bearings for a life expectancy of 60000 hours at 40°C. Both the frame and impeller are typically made of plastic (PBT). It commonly features a 3-wire termination, including a pulse sensor for speed monitoring. This model is designed to operate within an ambient temperature range of -10 to 70°C.
109P0424H3013 Fan Parameters
Model: 109P0424H3013
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 13.8 .. 27.6 V DC
Rated Current: 0.095 A
Power Consumption: 2.28 W
Speed: 2800 RPM
Airflow: 19.2 m³/h (11.3 CFM)
Static Pressure: 103.1 Pa (0.414 inchH2O)
Noise Level: 37 dB(A)
Bearing Type: Ball Bearing
Material Frame: Plastic (PBT)
Material Impeller: Plastic (PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 40 °C: 60000 h
Termination: 3-wire leads (with Pulse Sensor)
Motor Protection: Locked Rotor Sensor, Reverse Polarity Protection
Application: Suitable for compact electronic devices, small form-factor servers, industrial control systems, and other applications requiring efficient and quiet DC airflow.
