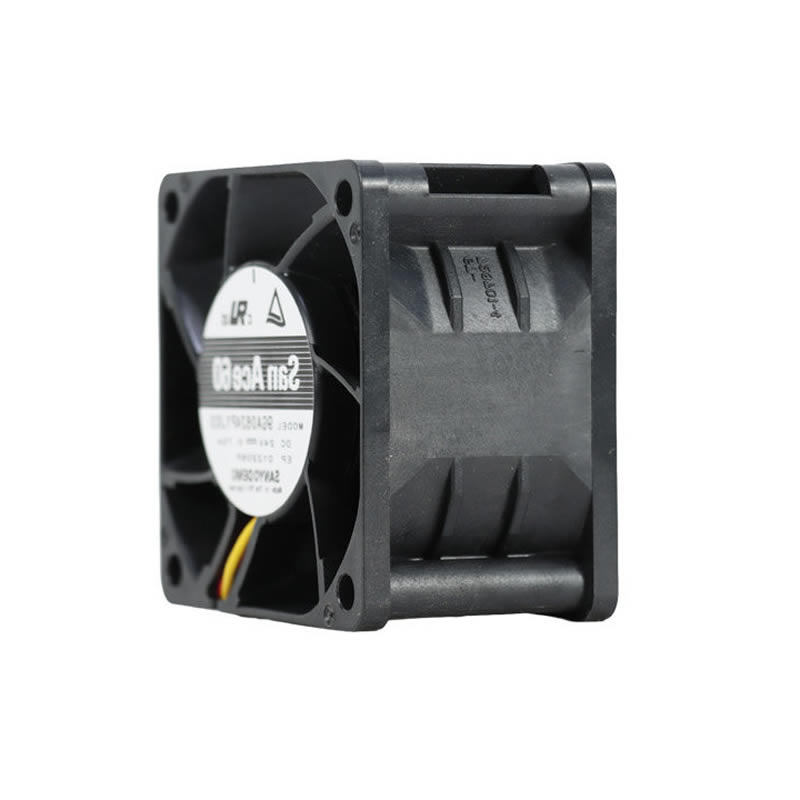

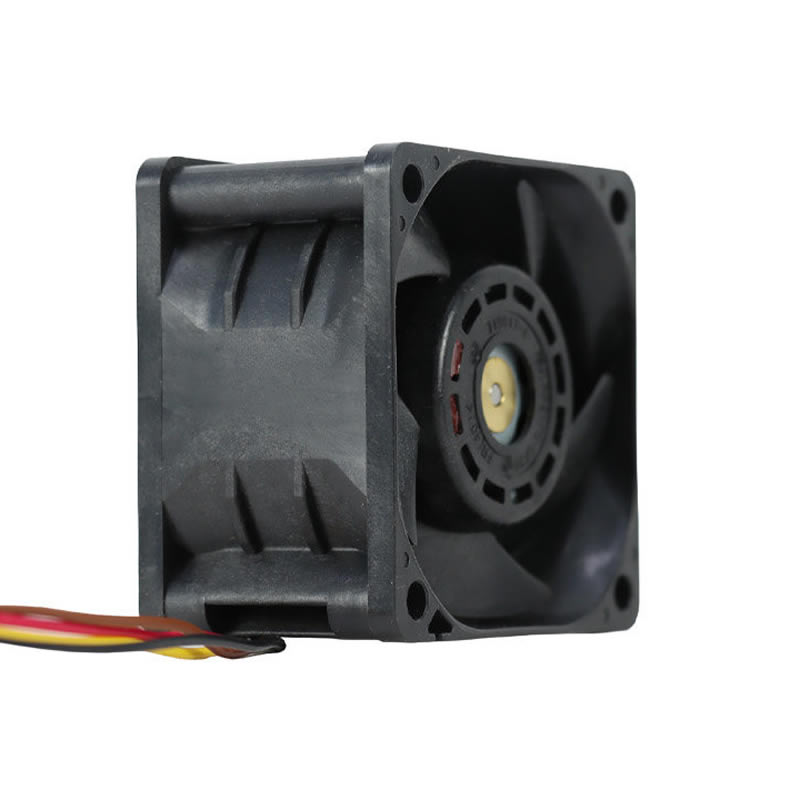

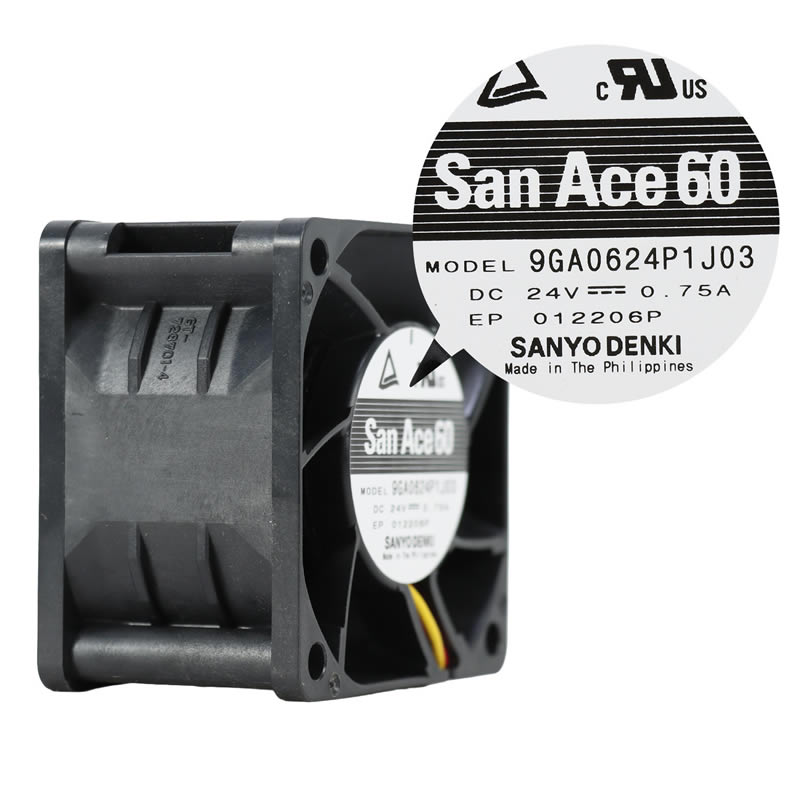

9GA0624P1J03 Sanyo Denki 24V 0.75A 60x60x38mm DC Axial Fan

Description

The Sanyo Denki 9GA0624P1J03 is a high-performance 24VDC axial fan with dimensions of 60 x 60 x 38 mm, specifically engineered for extreme thermal management in high-density industrial and ICT equipment. As part of the San Ace 60 (9GA type) low power consumption series, this cooling solution features a robust plastic frame and a specialized 5-blade high-efficiency impeller (UL 94V-0), optimized for superior aerodynamic throughput and industry-leading static pressure. It operates at an ultra-high rated speed of 17,500 min⁻¹, delivering a maximum air flow of 62 CFM (105.3 m³/h) and an exceptional static pressure of 3.3 inH₂O (820 Pa). Equipped with a precision dual ball bearing system and PWM control functionality, the 9GA0624P1J03 ensures a reliable service life of 70,000 hours at 40 °C. This model is characterized by its high power-to-size ratio and integrated speed monitoring, making it a critical component for 1U/2U servers, networking hardware, and high-performance power supplies.

9GA0624P1J03 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GA0624P1J03
Type: DC Axial Fan
Series: San Ace 60 (9GA type)
Dimensions: 60 x 60 x 38 mm
Weight: 130 g
Frame Material: Plastic
Impeller Material: Plastics (UL 94V-0)
Bearing Type: Dual Ball Bearing
Number of Blades: 5
Rated Voltage: 24 VDC
Operating Voltage Range: 21.6 – 25.2 VDC
Rated Current: 0.75 A
Rated Input Power: 18.0 W
Rated Speed: 17,500 min⁻¹ (RPM)
Max. Air Flow: 62 CFM (105.3 m³/h / 1.75 m³/min)
Max. Static Pressure: 3.3 inH₂O (820 Pa / 83.6 mmH₂O)
Sound Pressure Level: 63 dB(A)
Termination: 4 Lead Wires (300 mm)
Wire Functions: Red (+), Black (-), Yellow (Tachometer), Brown (PWM)
Control Interface: PWM Control / Pulse Sensor
Operating Temperature: -20 – +60 °C
Storage Temperature: -30 – +70 °C
Expected Life: 70,000 h (at 40 °C) / 40,000 h (at 60 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, TUV, RoHS

Application
The Sanyo Denki 9GA0624P1J03 high-speed axial fan is specifically designed for cooling 1U/2U server chassis, high-density network switches, telecommunications rectifiers, industrial frequency converters, and high-wattage power supplies where maximum static pressure is required for dense airflow paths.
