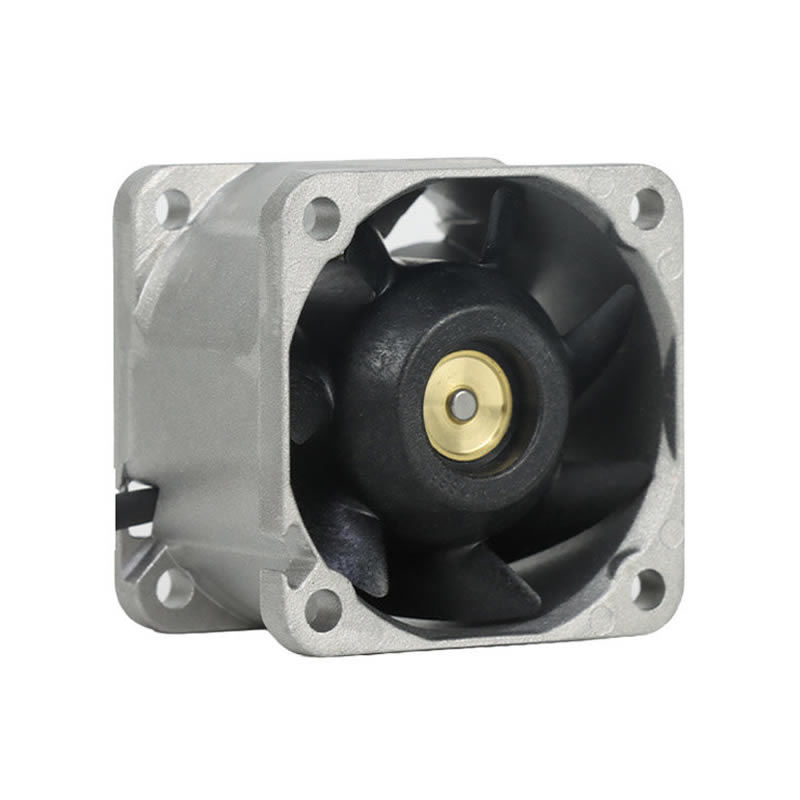

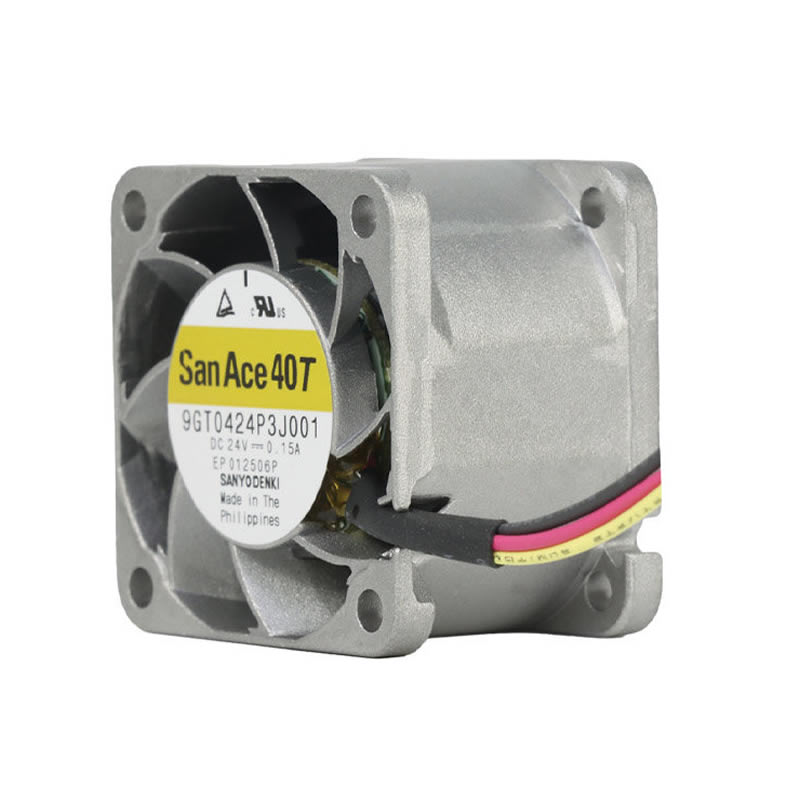

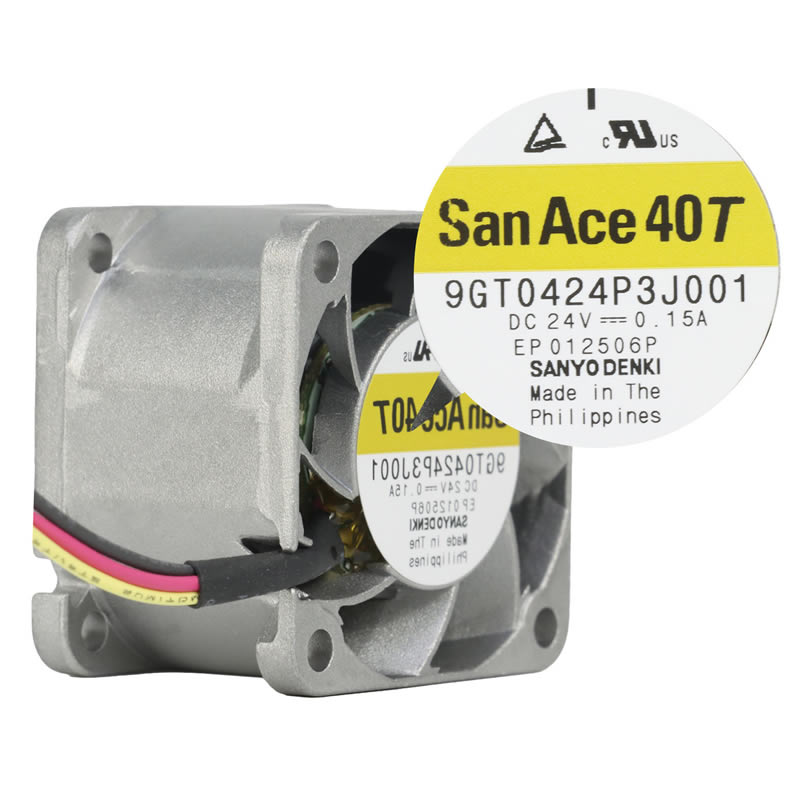

9GT0424P3J001 Sanyo Denki 24V 40x40x28mm DC Axial Fan

Description

The Sanyo Denki 9GT0424P3J001 is a high-performance 24VDC wide temperature range axial fan with dimensions of 40 x 40 x 28 mm, specifically engineered for extreme environmental thermal management in industrial and outdoor applications. As part of the San Ace 40T series, this cooling solution features a robust aluminum frame and a specialized high-efficiency impeller (UL 94V-0), optimized for superior aerodynamic throughput and stable operation across a vast temperature spectrum. It operates at a rated speed of 11,700 min⁻¹, delivering a maximum air flow of 18.4 CFM (31.2 m³/h) and a static pressure of 0.827 inH₂O (206 Pa). Equipped with a precision dual ball bearing system and PWM control functionality, the 9GT0424P3J001 ensures an exceptional service life of 40,000 hours even at extreme temperatures of 85 °C. This model is characterized by its superior thermal resilience and integrated speed monitoring, making it a critical component for 5G base stations, solar inverters, and high-density power modules.

9GT0424P3J001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GT0424P3J001
Type: DC Axial Fan
Series: San Ace 40T
Dimensions: 40 x 40 x 28 mm
Weight: 55 g
Frame Material: Aluminum
Impeller Material: Plastics (UL 94V-0)
Bearing Type: Dual Ball Bearing
Number of Blades: 7
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.15 A
Rated Input Power: 3.6 W
Rated Speed: 11,700 min⁻¹ (RPM)
Max. Air Flow: 18.4 CFM (31.2 m³/h / 0.52 m³/min)
Max. Static Pressure: 0.827 inH₂O (206 Pa / 21 mmH₂O)
Sound Pressure Level: 48 dB(A)
Termination: 4 Lead Wires (300 mm)
Wire Functions: Red (+), Black (-), Yellow (Tachometer), Brown (PWM)
Control Interface: PWM Control / Pulse Sensor
Operating Temperature: -40 – +85 °C
Storage Temperature: -40 – +85 °C
Expected Life: 40,000 h (at 85 °C) / 162,000 h (at 40 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, TUV, RoHS

Application
The Sanyo Denki 9GT0424P3J001 wide-temperature axial fan is specifically designed for cooling 5G telecommunications base stations, outdoor solar power inverters, EV charging piles, high-wattage LED drivers, and aerospace or industrial equipment operating in extreme climatic conditions.
