Description

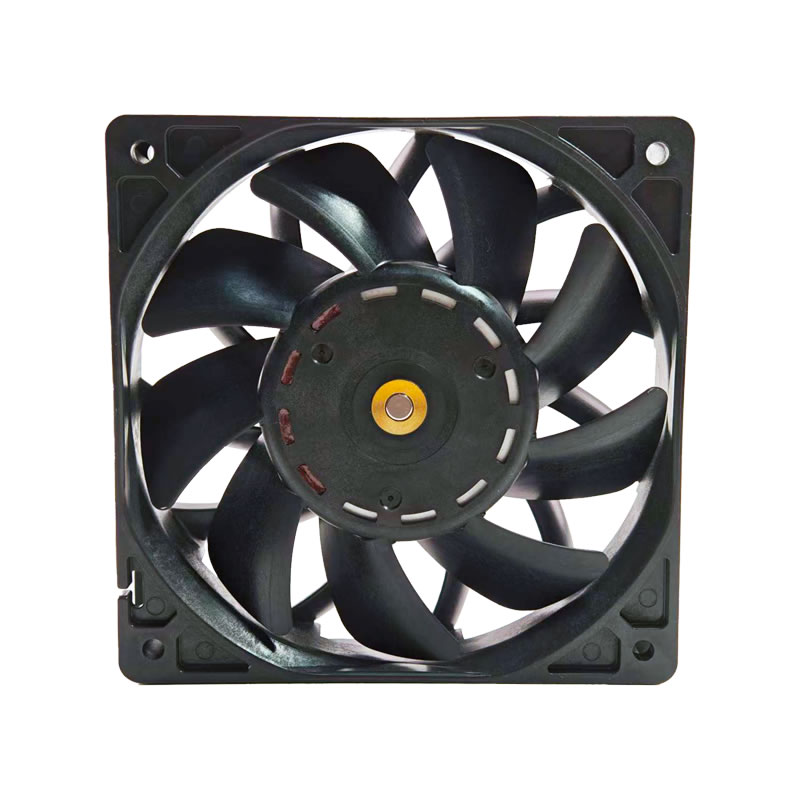

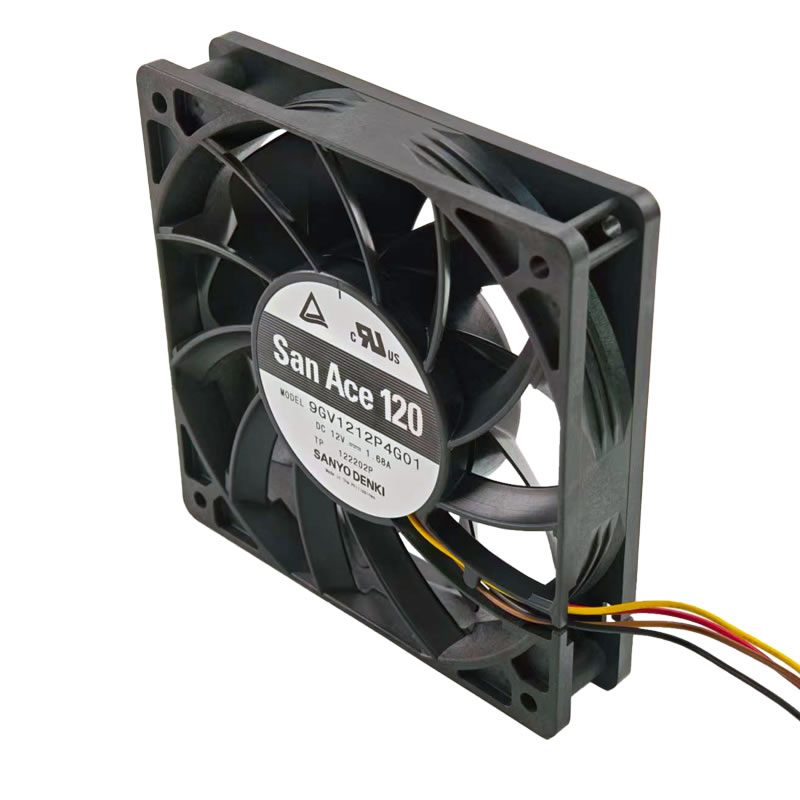

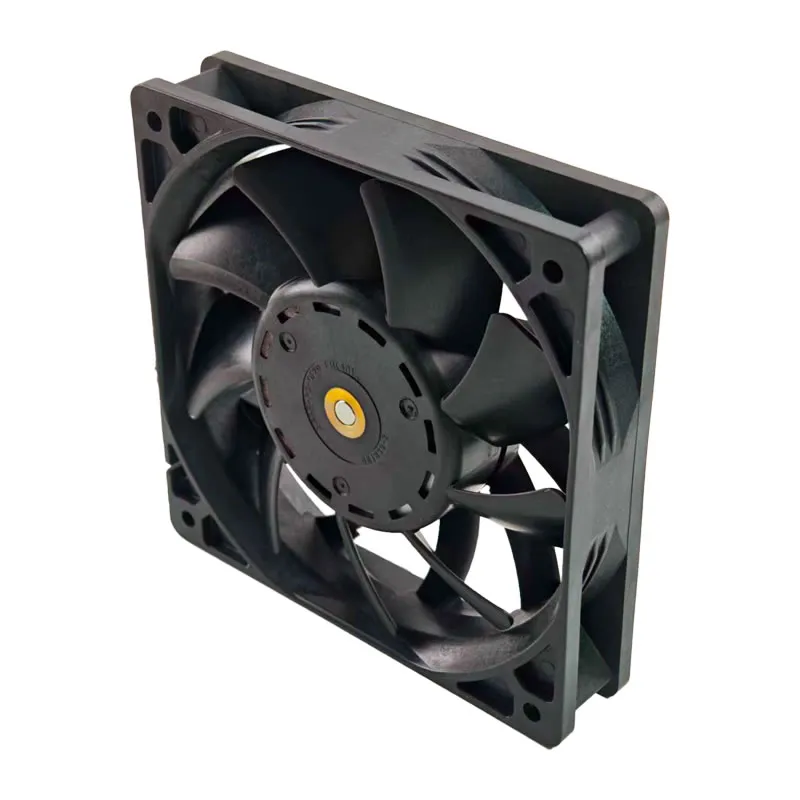

The Sanyo Denki 9GV1212P4G01 is a high-performance DC Axial Fan measuring 120 x 120 x 25 mm. It is designed for a nominal voltage of 12 VDC, with an operating range of 10.2 VDC to 13.8 VDC. This fan features Dual Ball Bearings, delivering a massive airflow of 290.5 m³/h (171 CFM) and an exceptionally high static pressure of 224 Pa (0.90 inAq) at a speed of 5100 RPM. It consumes 20.16 W of power and includes a Pulse Sensor (Tachometer) and a PWM Control function for precise speed and thermal management. Its high-pressure capability makes it ideal for dense electronic assemblies, servers, and ICT equipment where cooling against high impedance is necessary.
9GV1212P4G01 Fan Parameters
Model: 9GV1212P4G01
Manufacturer: Sanyo Denki
Type: DC Axial Fan (Tubeaxial)
Dimensions: 120 x 120 x 25.4 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.2 VDC to 13.8 VDC
Rated Current: 1.68 A
Power Consumption: 20.16 W
Speed: 5100 RPM
Airflow: 290.5 m³/h (4.83 m³/min / 171 CFM)
Static Pressure: 224 Pa (0.90 inAq)
Noise Level: 58 dB(A)
Weight: 260 g
Bearing Type: Ball Bearing
Life Expectancy (L10): 40,000 hours (at 60 °C) / 70,000 hours (at 40 °C)
Frame Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Features: PWM Control Function, Pulse Sensor (Tachometer)
Termination: 4 Wire Leads
Approval: CSA, TUV, UL
ApplicationThe Sanyo Denki 9GV1212P4G01 fan is part of the San Ace 120 series, known for its high performance in compact form factors. It is primarily used for the demanding cooling of high-density electronic assemblies, blade servers, network switches, data storage systems, and various ICT equipment where maximum heat dissipation and superior static pressure performance are critical.
