Description

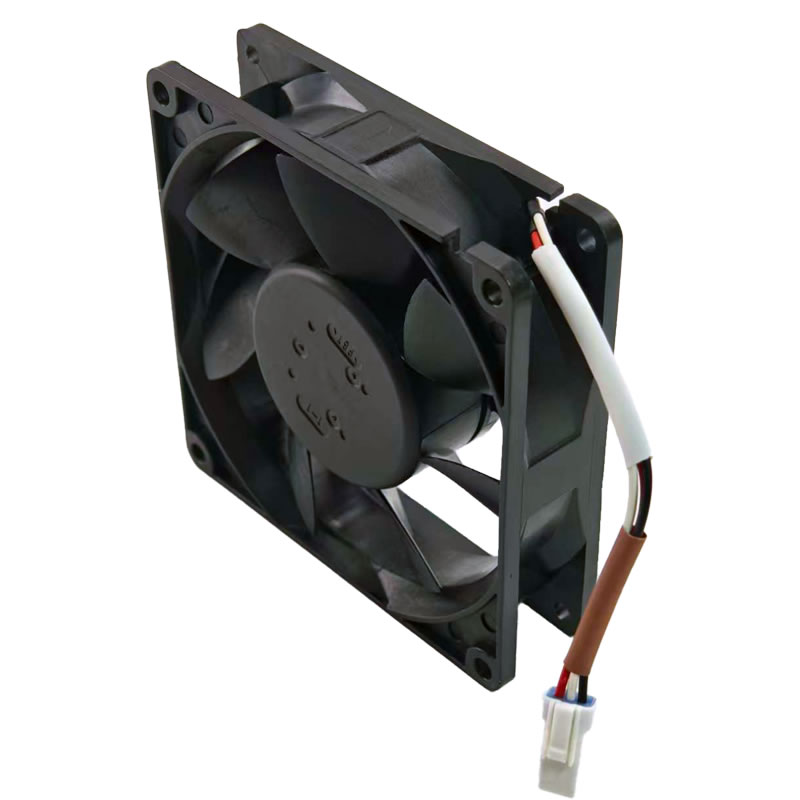

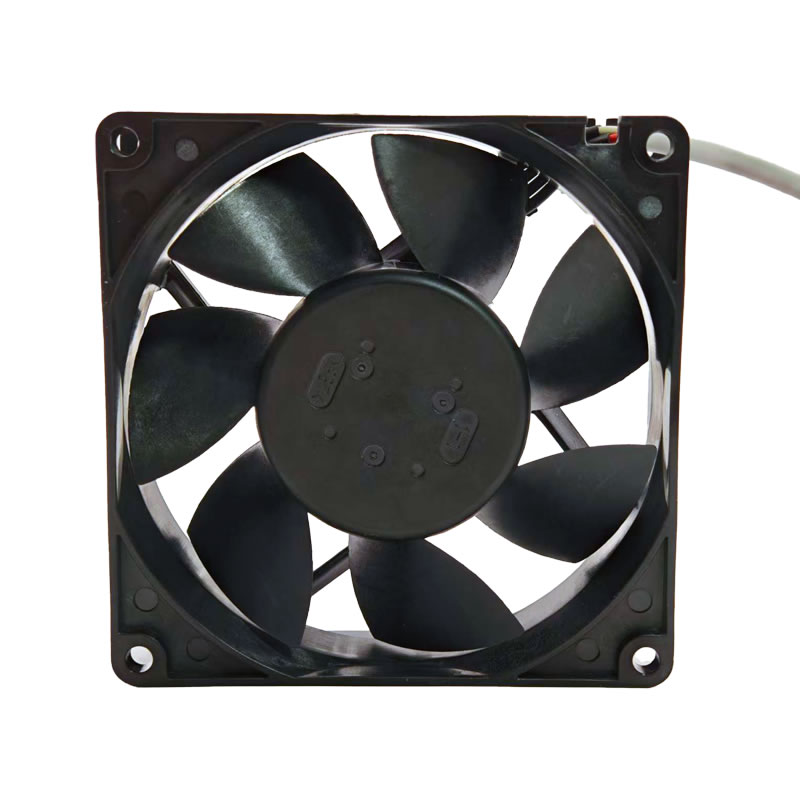

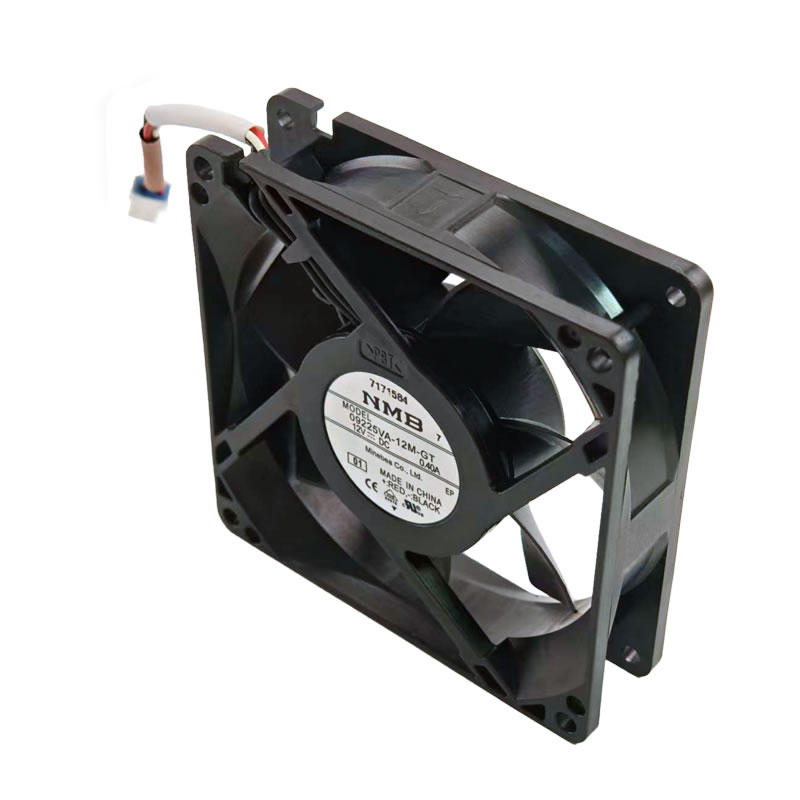

The NMB 09225VA-12M-GT is a high-performance DC Axial Fan with dimensions of 92×92×25 mm. This model operates on a 12 VDC Rated Voltage with a Rated Current of 0.40 A, resulting in a Rated Input Power of 4.8 W. It is built with a Ball Bearing system and 7 Blades, featuring a 3-wire lead for Tachometer output speed monitoring. The fan achieves a Rated Speed of 4,000 RPM, providing an Airflow of 68.10 CFM (115.7 m3/h) and a Static Pressure of 0.32 inAq (79.7 Pa) with a Noise Level of 42 dB/A. This product is commonly used in computer and telecom equipment where high airflow against resistance and speed monitoring are required from a 12 VDC source.
09225VA-12M-GT Fan Parameters
Model: 09225VA-12M-GT
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92×92×25 mm
Motor Design: Brushless DC Motor
Bearing Type: Ball Bearing
Rated Voltage: 12 VDC
Rated Current: 0.40 A
Rated Input: 4.8 W
Rated Speed: 4,000 RPM
Airflow: 68.10 CFM (115.7 m3/h)
Static Pressure: 0.32 inAq (79.7 Pa)
Noise Level: 42 dB/A
Number of blades: 7
Mass: 135 g
Operating Voltage Range: 6.0 VDC to 13.8 VDC
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Leads (Tachometer Output)
Life Expectancy: 60,000 h (at 40 ∘C)
Safety Approval: UL, CUL, TUV, CE
Application
The 09225VA-12M-GT’s high static pressure and strong airflow make it a preferred choice for cooling components behind restrictive filters or dense heat sinks in server power supplies, telecom switches, and networking equipment. Its Tachometer output is essential for system maintenance and reliable fan fault detection.
