Description

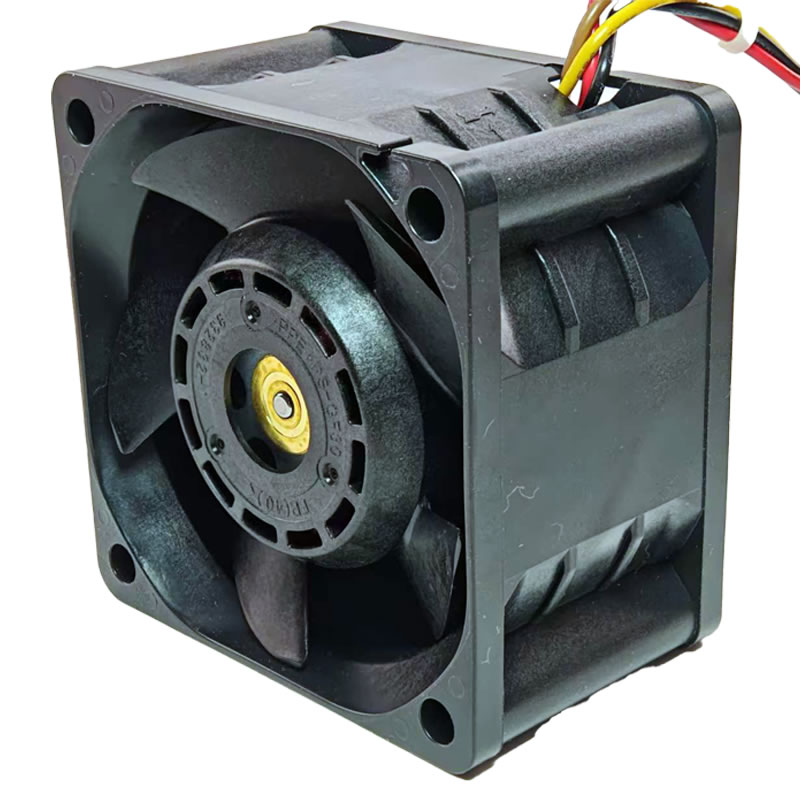

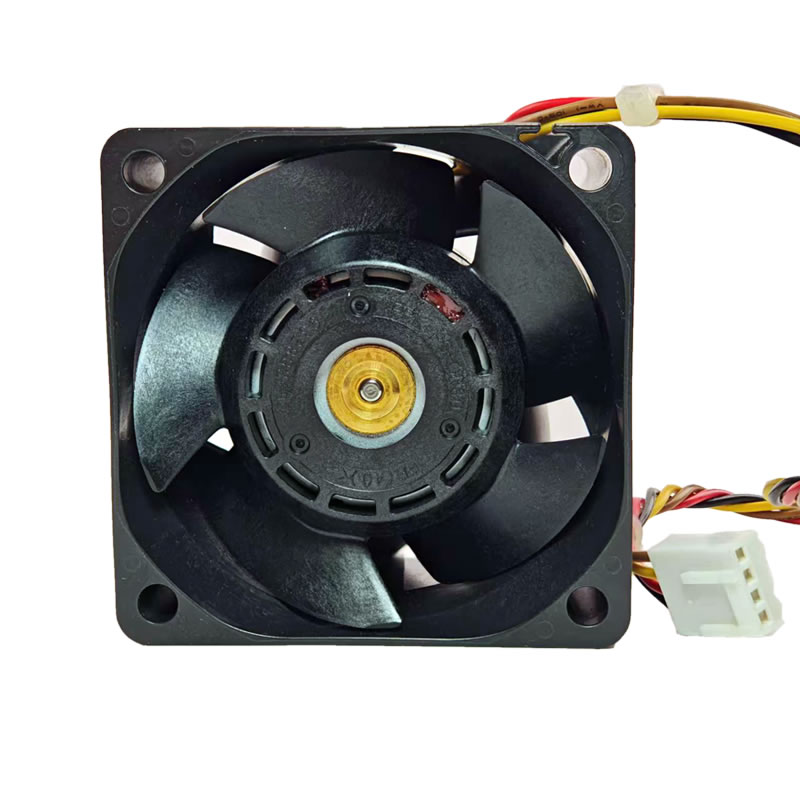

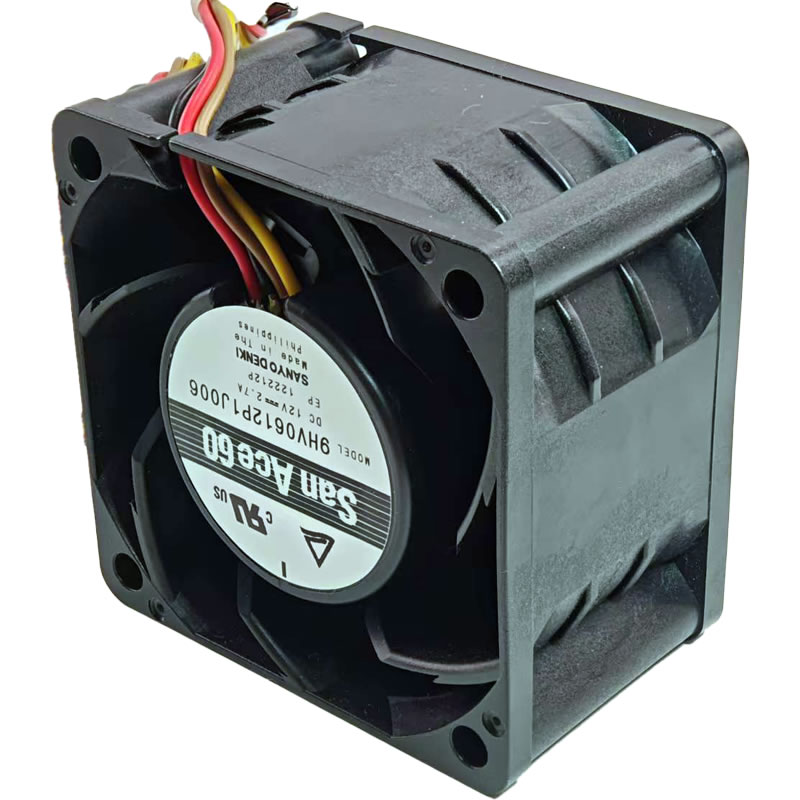

The Sanyo Denki 9HV0612P1J006 is an ultra-high static pressure 12V DC axial cooling fan. Measuring 60mm x 60mm x 38mm, this fan is engineered for extremely demanding thermal management scenarios, such as cooling high-density servers, network equipment, and other systems with significant airflow resistance. It operates at a rated voltage of 12V DC and draws a substantial current of 2.7A, resulting in a high power consumption of 32.4W. This immense power allows it to achieve an exceptionally high rotational speed of 21700 RPM, generating a high airflow of 66.4 CFM and an extremely high static pressure of 7.0 inch-H2O (1750 Pa). Due to its extreme performance, its noise level is 68 dBA. The fan features durable ball bearings for an extended operational lifespan of 40,000 hours at 60°C (or 70,000 hours at 40°C). It comes with 4-wire leads, which include power, ground, a pulse sensor (tachometer) output for speed monitoring, and a PWM input for speed control. The frame is constructed from durable plastic.
Model Number: 9HV0612P1J006
Manufacturer: Sanyo Denki
Series: San Ace60
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 38mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 12.6V DC
Rated Current: 2.7A
Rated Power: 32.4W
Speed: 21700 RPM
Airflow: 66.4 CFM (1.88 m³/min)
Static Pressure: 7.0 inch-H2O (1750 Pa)
Noise Level: 68 dBA
Connector: 4-Wire Leads (Power, Ground, Pulse Sensor/Tachometer, PWM Control)
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (70,000 hours at 40°C)
Frame Material: Plastic (ribbed)
Impeller (Blade) Material: Plastic
Features: PWM Control, Pulse Sensor (Tachometer), Locked Rotor Protection, Ribbed Frame
Operating Temperature: -20°C to +70°C
Weight: 135g
Approvals/Certifications: CSA, TUV, UL, RoHS Compliant
