Description

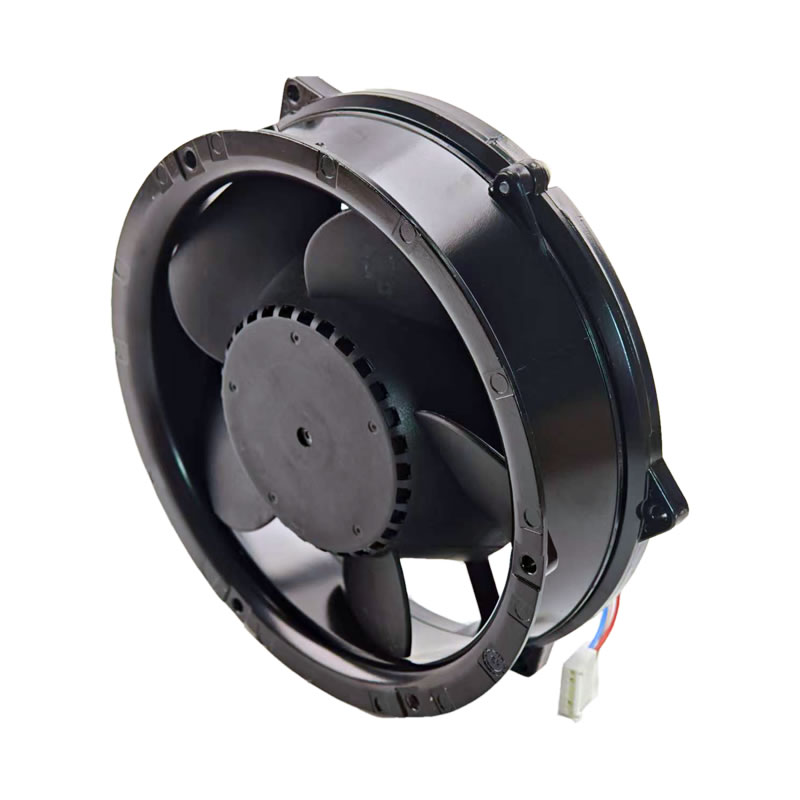

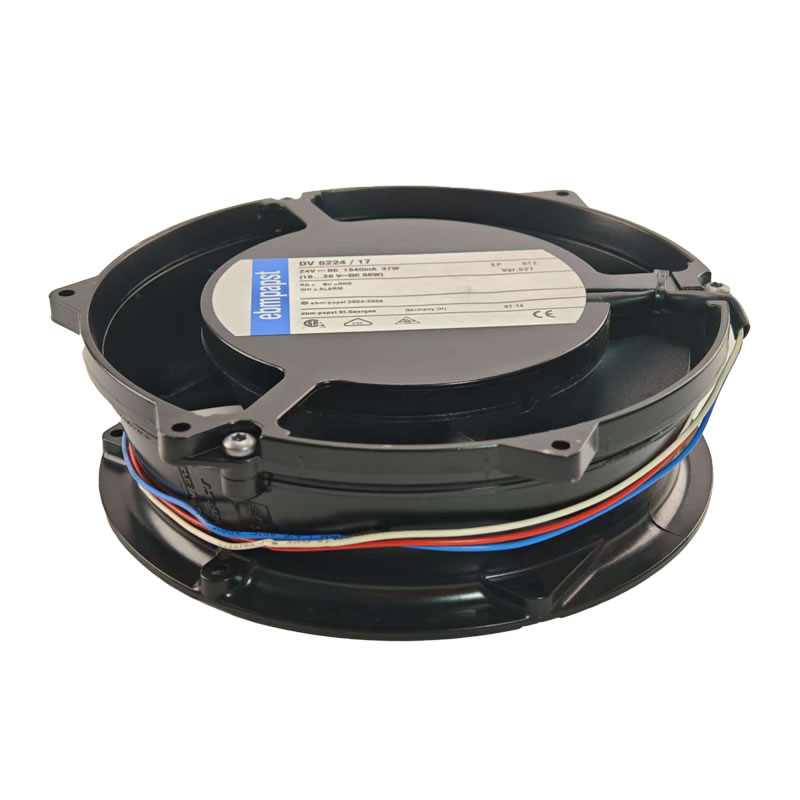

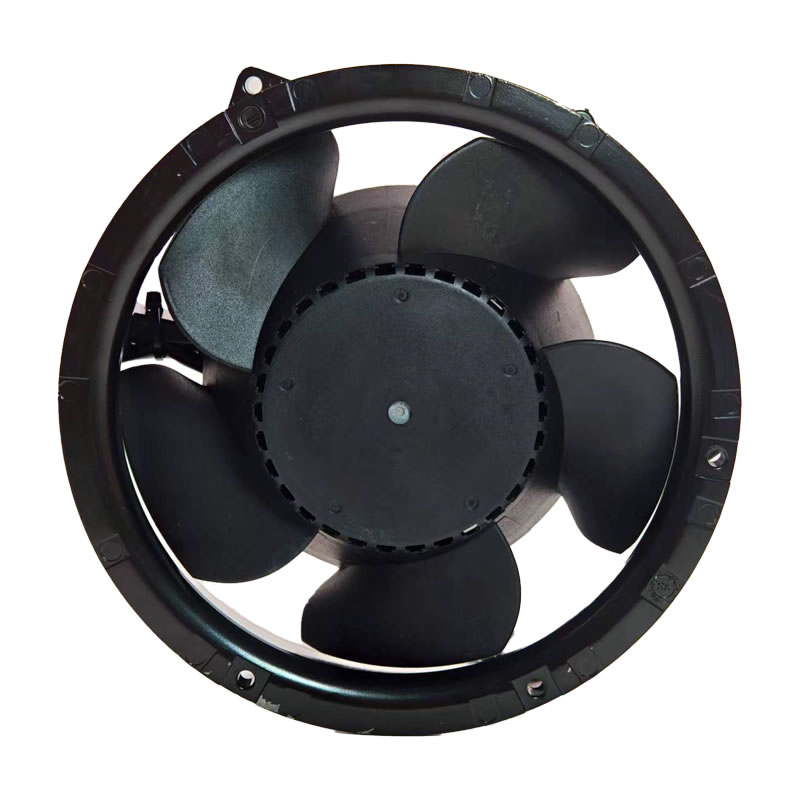

The ebmpapst DV6224/17 is a powerful DC diagonal fan with a circular design, measuring 172mm in diameter and 51mm in depth. It operates on 24 VDC, drawing 1.54A of current and consuming 37W of power. This fan is engineered for high airflow and static pressure, making it suitable for demanding cooling applications. It features a robust aluminum housing and a glass-fiber reinforced plastic impeller, along with ball bearings for exceptional durability and a long service life. With its three-wire termination, which typically includes a speed signal output, it is an ideal cooling solution for areas such as control cabinets, power electronics, and servers.
DV6224/17 Fan Parameters
Model: DV6224/17
Manufacturer: ebmpapst
Type: DC Diagonal Compact Fan(axial fan)
Dimensions: 172mm (diameter) x 51mm (depth)
Rated Voltage: 24 VDC
Operating Voltage Range: 16 VDC to 28 VDC
Rated Current: 1.54A
Power Consumption: 37 W
Speed: 4300 RPM
Airflow: 318 CFM (540 m³/h)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Termination: 3-Wire Leads (typically includes speed signal/tach output)
Operating Temperature: -20°C to +75°C
Life Expectancy: 90,000 hours (L10 at 40°C)
Weight: 0.82 kg
Features: Electronic locked-rotor protection, protection against reverse polarity, optional alarm signal.
Application: Control cabinets, power electronics, servers, IT equipment, cooling units, industrial machinery.
