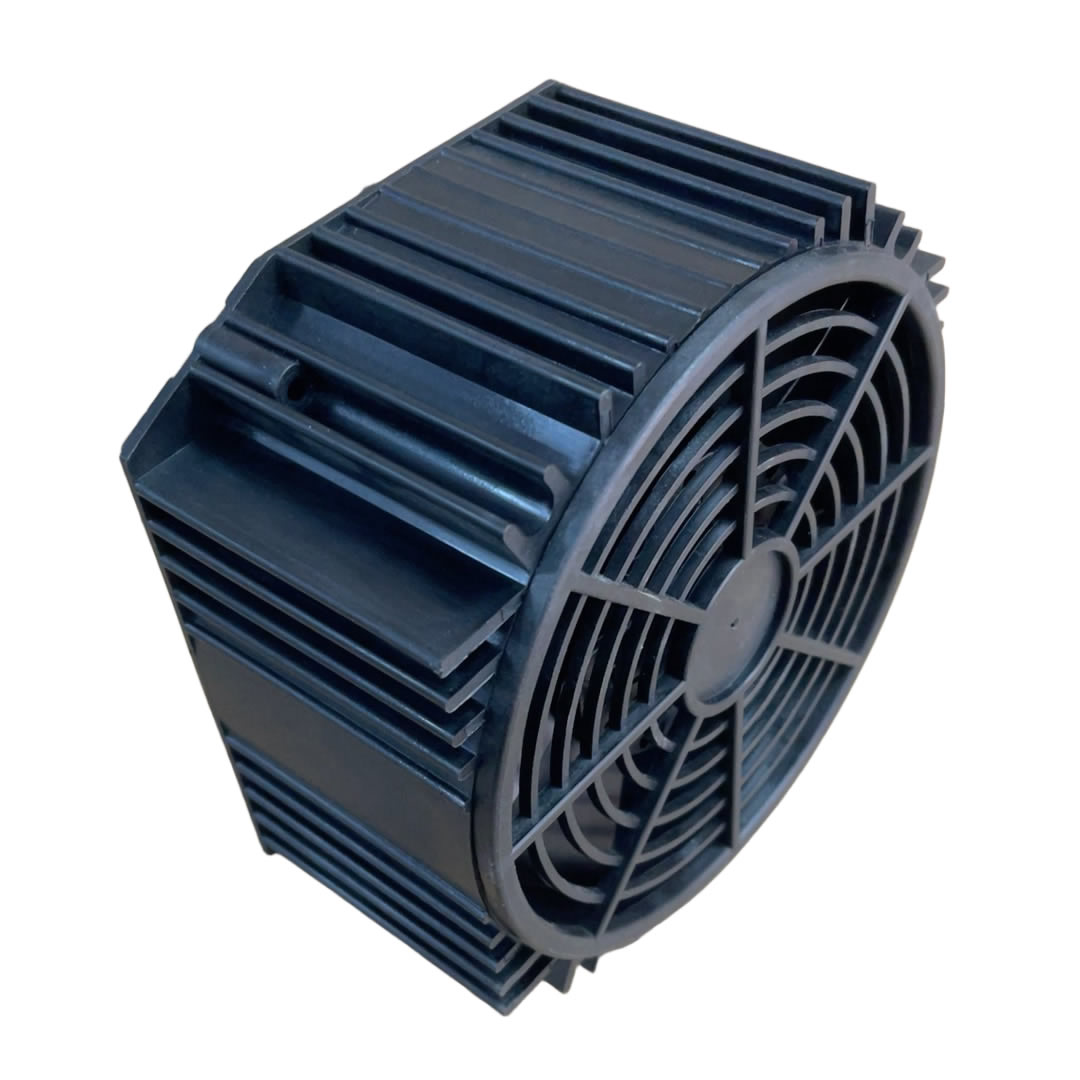

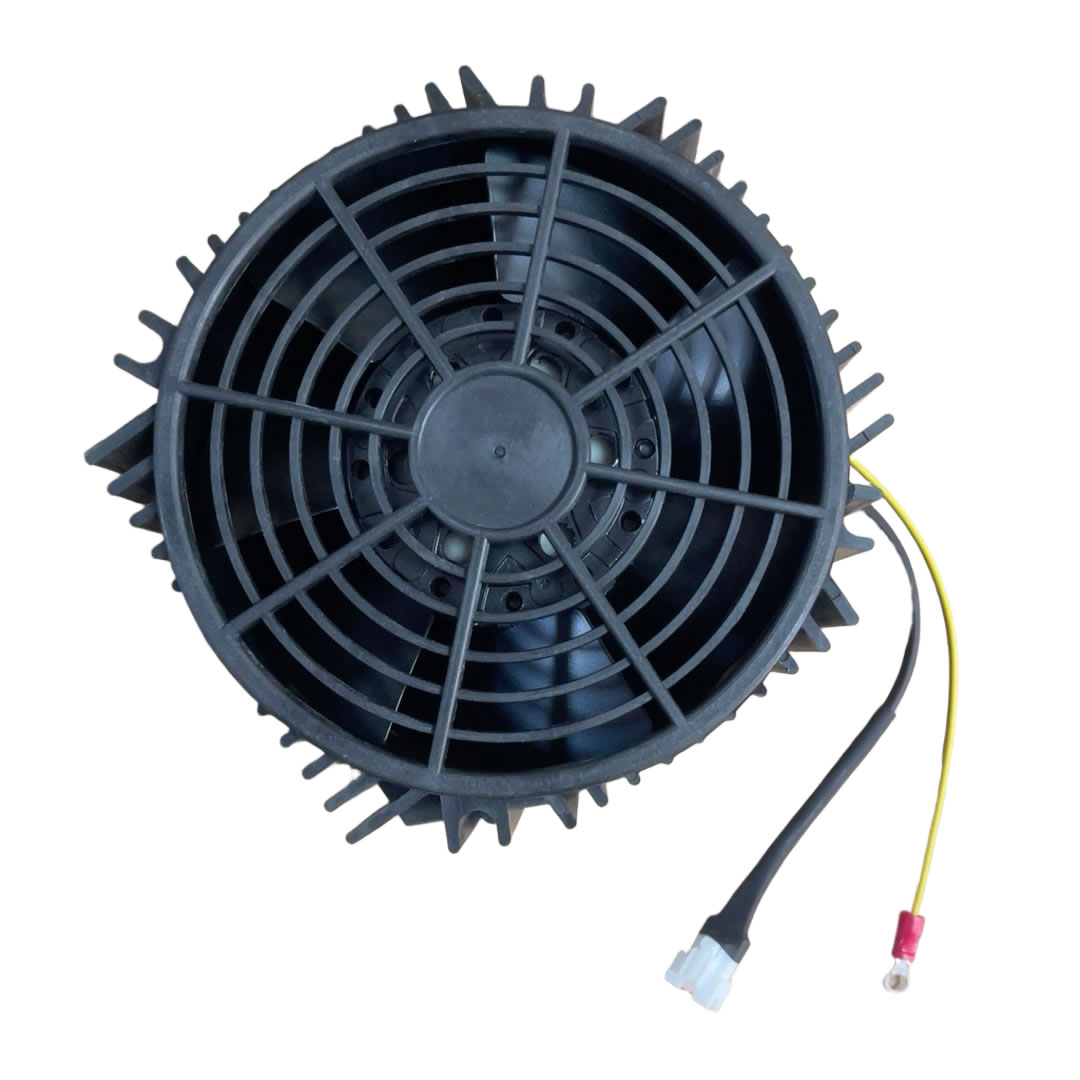

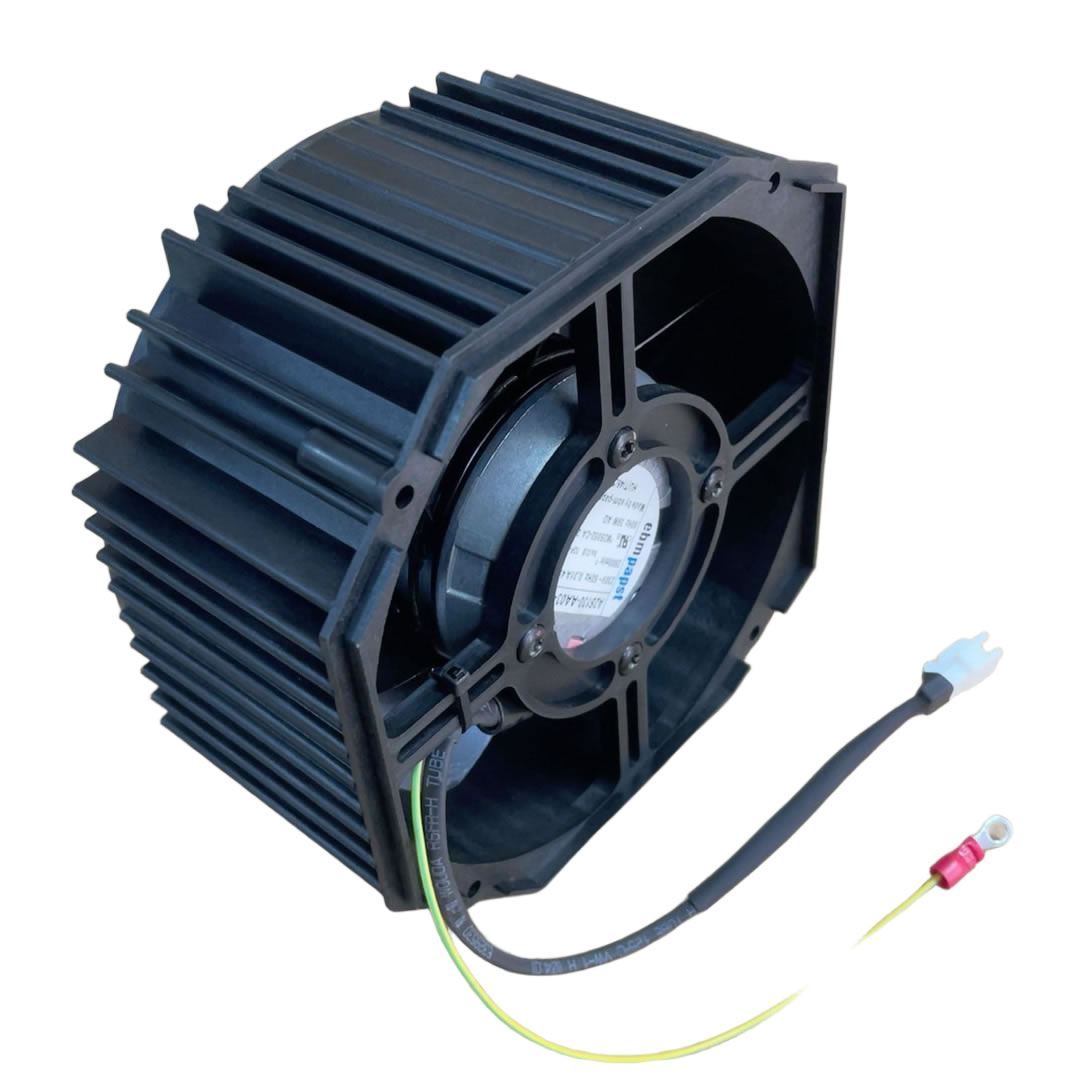

A2S130-AA03-39 ebmpapst 230VAC 0.31A axial fan

Description

Model:A2S130-AA03-39
Manufacturer:ebmpapst
Motor Type: M2S052-CA
Dimensions: Ø130mmx57mm
Number of Blades: 7
Bearing Type: Ball bearing
Protection Class: IP20
ated Voltage: 230VAC
Frequency Compatibility:50Hz/60Hz
Power Consumption:45W/39W
Current Draw:0.31A/0.25A
Starting Current:0.45A/0.40A
Rated Speed:2800RPM/3250RPM
Max. Airflow:340 m³/h,390 m³/h
Max. Static Pressure:80Pa/120Pa
Insulation Class: “B”
Min. Ambient Temperature: -25 °C
Max. Operating Ambient Temperature: 50 °C (at 50 Hz) / 70 °C (at 60 Hz)
Transport/Storage Temperature: -40 °C to +80 °C
Operating Mode: S1
Compliance Standards: EN 60335-1; CE
Certifications: CSA C22.2 Nr.100; UL 1004-1; EAC
Type: AC Axial Fan, sickle-bladed
