Description
Model:AFB0624H-R00
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan
Dimensions: 60x60x25.4mm
Rated Voltage: 24VDC
Operating Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.11A
Input Power: 2.16W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4250 RPM
Maximum Airflow: 23.4 CFM or 0.655 m³/min
Maximum Static Pressure: 0.211 in H2O or 52.6 Pa
Noise Level: 34.0dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Locked Rotor Sensor (Rotation Detect)
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: 80g
Safety Approvals: CE, CSA, UL, VDE

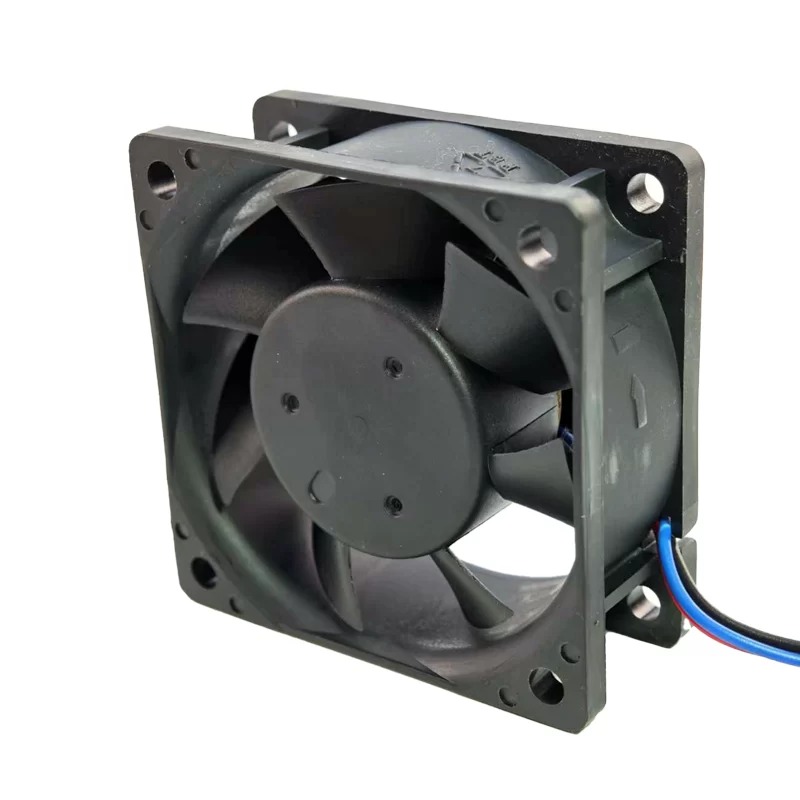

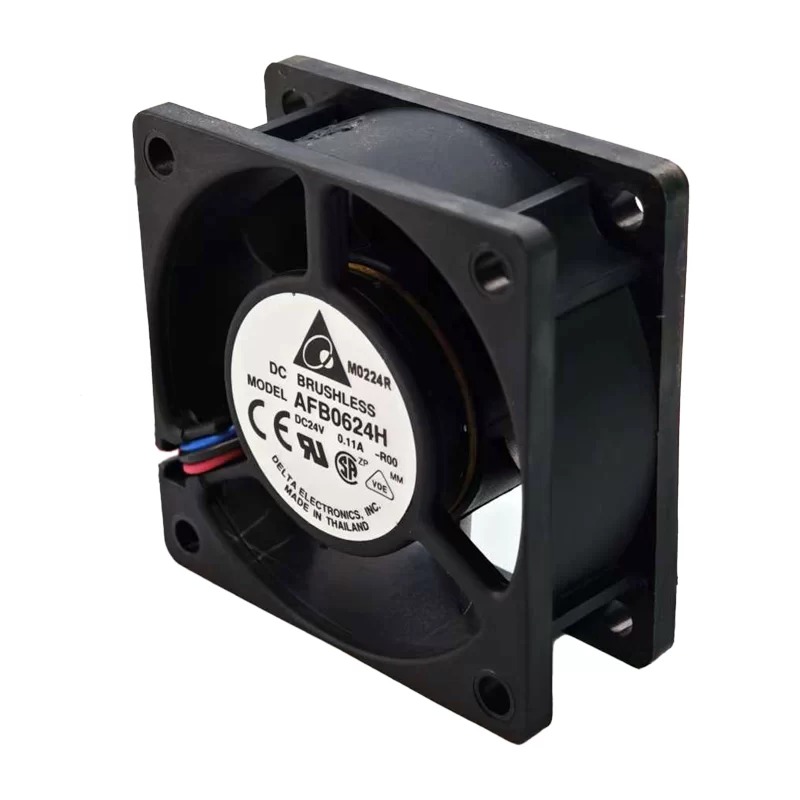

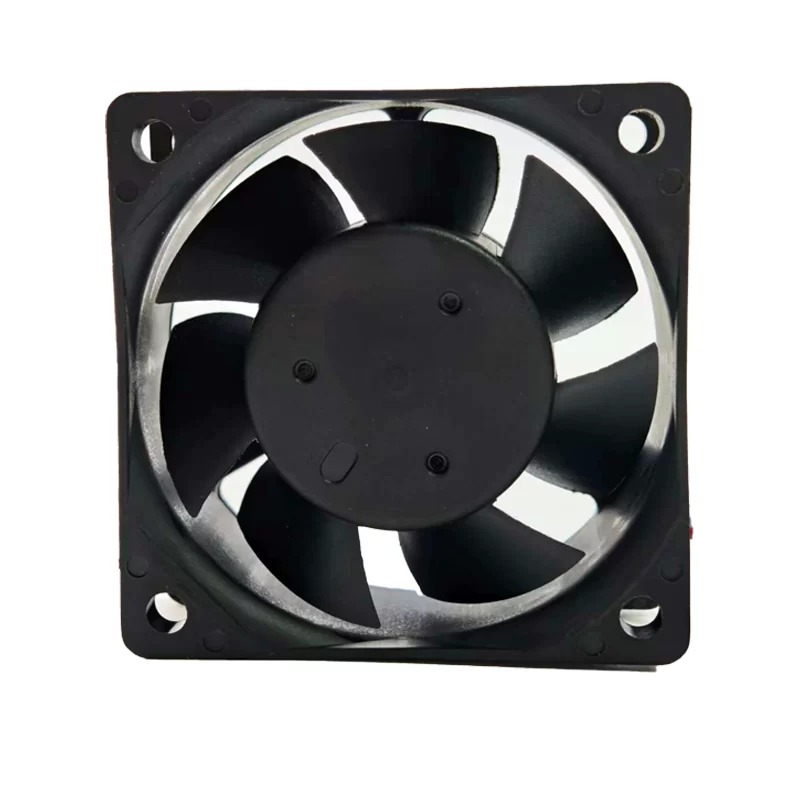

The Delta AFB0624H-R00 is a reliable 60x60x25.4mm DC axial fan from Delta’s AFB series. Operating on 24VDC, it consumes 2.16W of power with a current draw of 0.11A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers an airflow of 23.4 CFM at a speed of 4250 RPM, with a moderate noise level of 34.0 dBA. The 3-wire configuration provides a locked rotor sensor (rotation detect) output, which is crucial for monitoring fan operational status and ensuring system reliability. This fan is a common and effective choice for cooling various electronic enclosures, power supplies, industrial equipment, and other applications where stable airflow and monitoring capabilities are desired.
Delta Brand new original AFB0624H-R00 6CM 6025/24V inverter cooling fa
