Description
Model:AFB1224SHF-F00
Brand:Delta
Dimensions:120x120x32 mm
Rated Voltage: 24VDC
Operating Voltage Range: 14 VDC to 26.4 VDC
Rated Current: 0.90A
Input Power: 16.8W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4300RPM
Maximum Airflow: 174.5CFM
Maximum Static Pressure: 0.656 in H2O
Noise Level: 56.0dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: Approximately 276.24 g
Safety Approvals: CE, CSA, UL, VDE

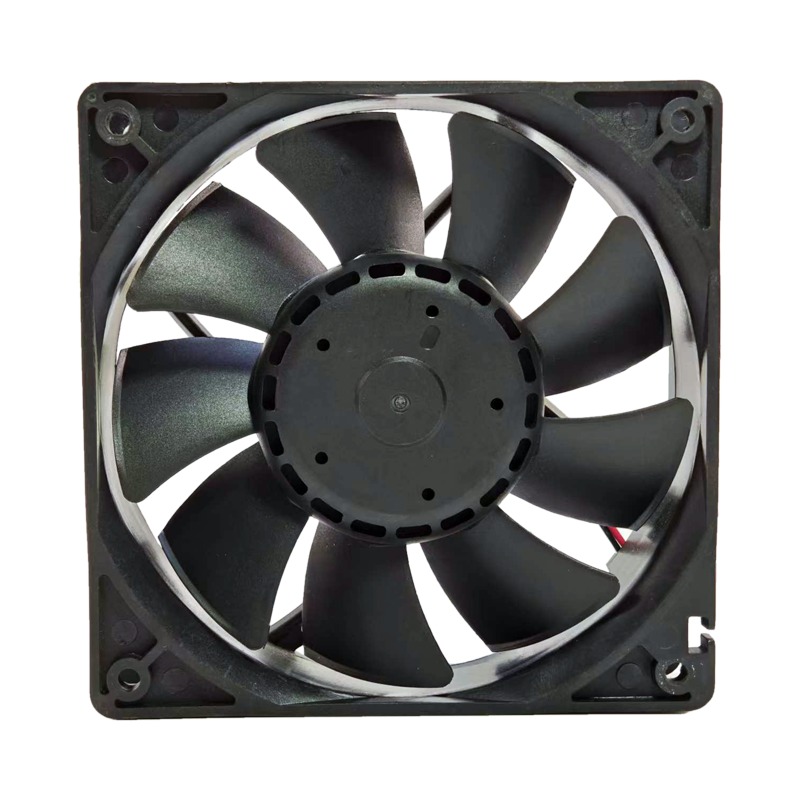

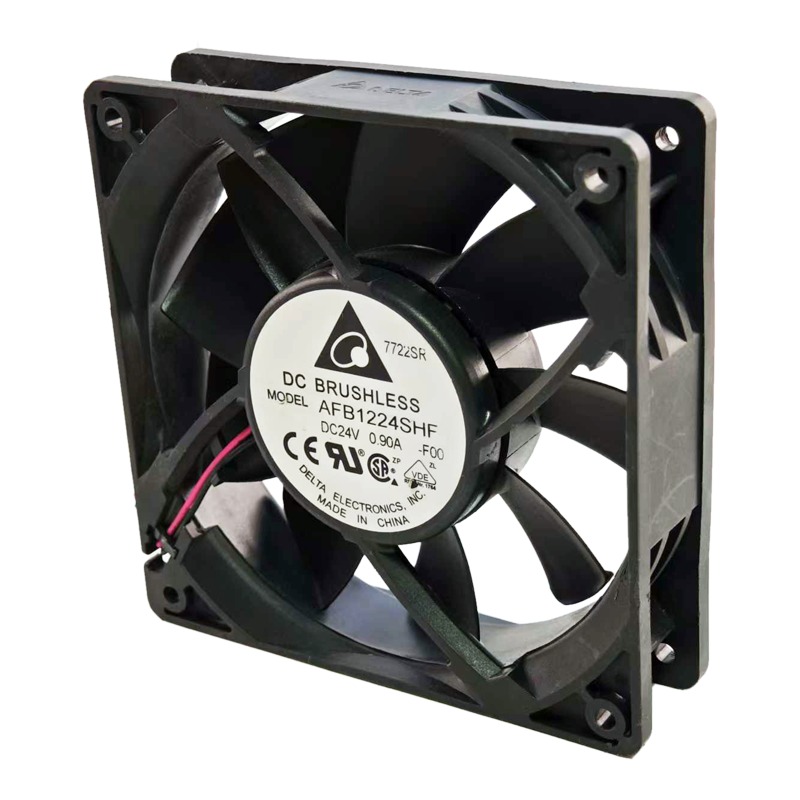

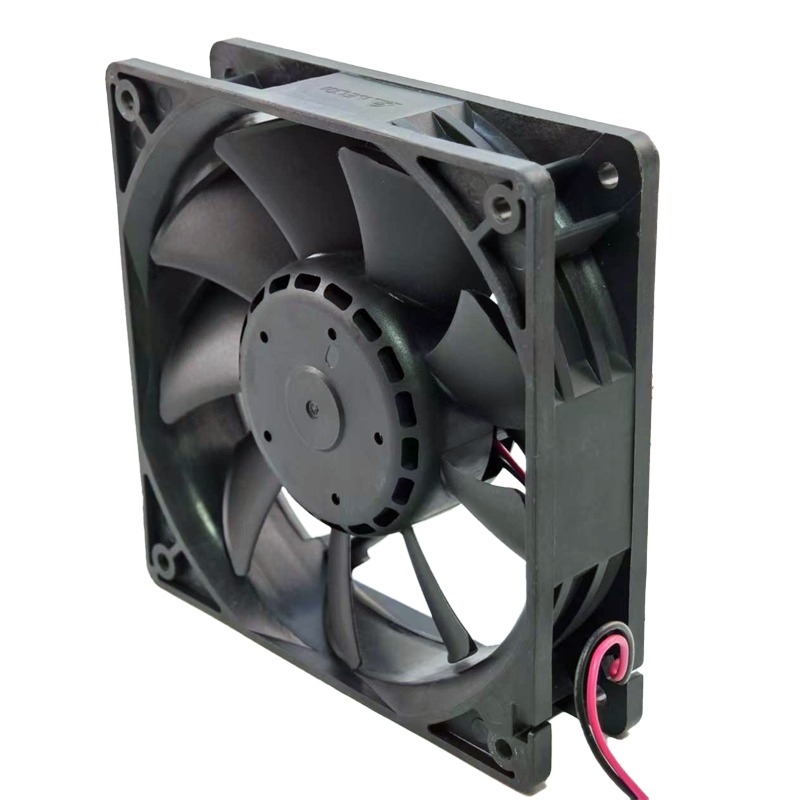

The Delta AFB1224SHF-F00 is a very high-performance 120x120x32mm DC axial fan from Delta’s AFB series. Operating on 24VDC, it consumes 16.8W of power with a current draw of 0.90A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a substantial airflow of 174.5 CFM at a high speed of 4300 RPM, generating significant static pressure of 0.656 in H2O. With a noise level of 56.0 dBA, it is designed for applications where maximum cooling performance is paramount, even if it results in higher audible noise. The 3-wire configuration provides a tachometer output for real-time speed monitoring, which is crucial for critical systems. This fan is an excellent choice for cooling servers, data centers, high-performance computing equipment, and other industrial systems that require robust and dependable thermal management with monitoring capabilities.
