Description

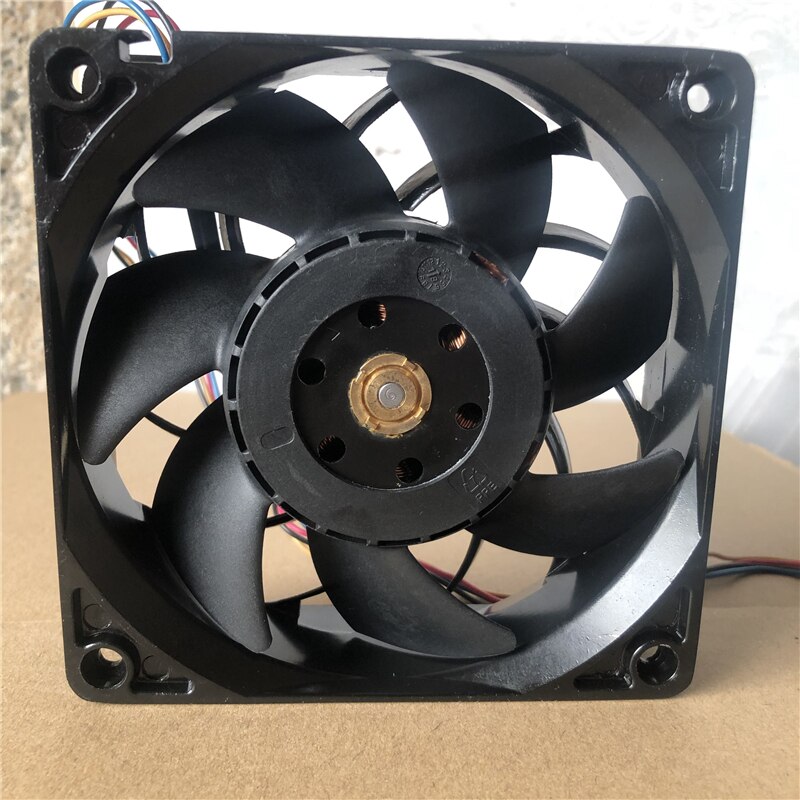

The AVC DBPF1238B8G is a high-performance DC axial fan measuring 120 x 120 x 38 mm. It operates on 48 VDC with a rated current of 4.5 A, delivering a powerful airflow of 210 CFM. It features a durable ball bearing system and is terminated with 4 wire leads, making it a robust cooling solution for demanding electronic applications.
DBPF1238B8G Fan Parameters
Model: DBPF1238B8G
Manufacturer: AVC
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 48 VDC
Rated Current: 4.5 A
Rated Input Power: 216 W
Rated Speed: 6200 RPM
Airflow: 210 CFM
Static Pressure: 43.62 mmH₂O
Noise Level: 66 dB(A)
Bearing Type: Ball Bearing
Termination: 4 wire leads
Application
The DBPF1238B8G is commonly used in high-performance computing, servers, and telecommunications equipment. Its high airflow and static pressure make it an excellent choice for applications that require efficient heat dissipation in confined spaces or against resistance.
