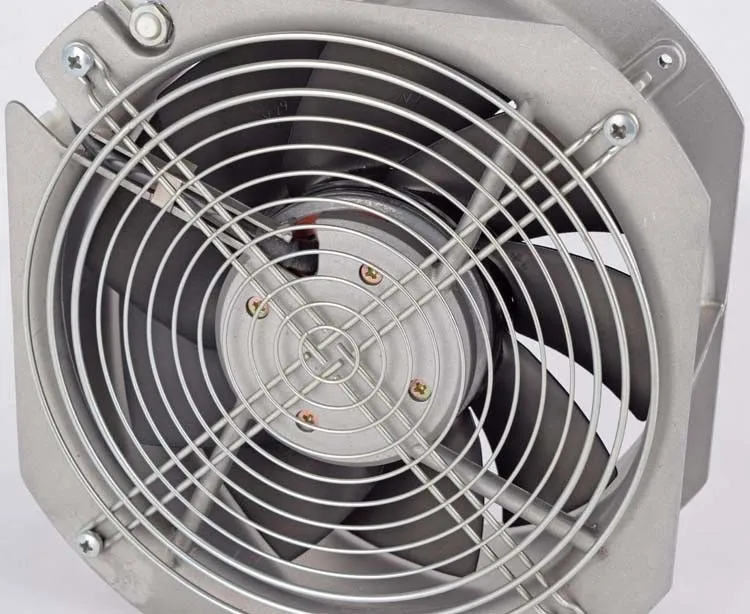

Ebm Papst W2E0-HH38-07 64/80W 607 CFM 225x80mm AC Axial Tubeaxial Fan

Description

The ebmpapst W2E0-HH38-07 is a high-performance AC axial compact fan designed for robust thermal management in industrial electronics and automation systems. Utilizing a reliable external rotor shaded-pole motor, this tubeaxial unit provides high air performance with moderate pressure build-up, making it suitable for continuous duty cycles in demanding environments. The construction features a rugged die-cast aluminum housing and a sheet steel impeller directly welded to the rotor, ensuring structural integrity and vibration resistance. This model is optimized for Original Engineering specifications, ensuring longevity and consistent cooling efficiency.

Technical Specifications:
Manufacturer: ebmpapst
Model Reference: W2E0-HH38-07
Fan Design: AC Axial Tubeaxial
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Power Input: 64 W (50 Hz) / 80 W (60 Hz)
Nominal Speed: 2550 RPM (50 Hz) / 2800 RPM (60 Hz)
Max Airflow: 607 CFM (1030 m³/h)
Dimensions: 225 mm x 80 mm
Bearing Type: Maintenance-free Ball Bearings
Housing Material: Die-cast Aluminum
Impeller Material: Sheet Steel, Black Coated
Motor Protection: Thermal Overload Protector (TOP) wired internally
Ingress Protection: IP44
Insulation Class: B
Acoustic Noise: 70 dB(A)
Operating Temperature Range: -25 °C to +75 °C
Direction of Rotation: Counter-clockwise viewed toward rotor
Electrical Connection: Terminal Block
Weight: 2.8 kg
Approvals: VDE, CSA, UL, CE

Industrial Application:
This fan is specifically engineered for forced convection cooling in high-density electrical cabinets, server rack assemblies, and power inverters requiring substantial airflow to counteract high thermal loads. Its specific pressure curve is ideal for ventilating heat exchangers and cooling variable frequency drives (VFDs) in manufacturing automation lines. The Technical Compatibility with standard 225mm mounting patterns facilitates seamless retrofit integration, minimizing system downtime during repairs. Please verify current Lead Time for critical spare parts procurement.
