Description

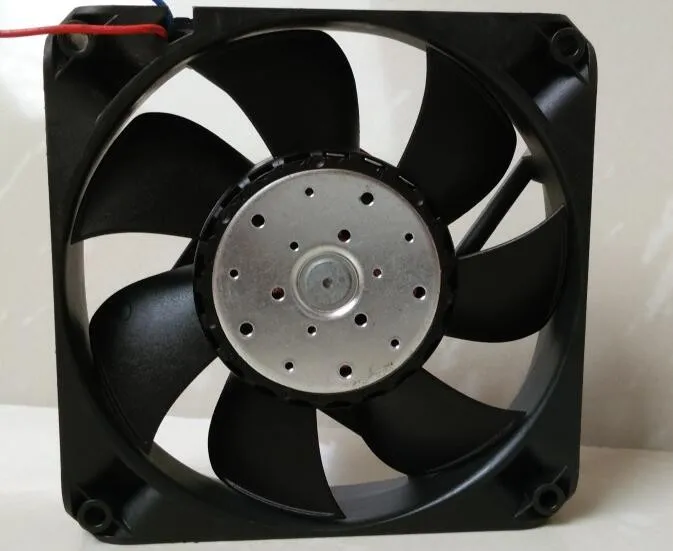

Model: 4414FNN
Brand：ebmpapst
Dimensions: 119x119x25mm
Series: 4400FN Series
Rated Voltage: 24 VDC
Voltage Range: 14 – 28 VDC
Rated Power: 8.5 W
Rated Current: 345mA
Motor Type: Electronically commutated external rotor motor
Rated Speed: 4850 min⁻¹
Airflow: 200 m³/h or 225 m³/h
Noise Level: 52 dB
Weight: 0.240 kg
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Airflow Direction: Air exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward the rotor
Bearing Type: Ball bearing
Electrical Connection: 2 leads
Lead Length: Approximately 0.31 m
Protection Class: IP20
Mounting: Mounts using four 4.3 mm mounting holes
Minimum Ambient Temperature: -20 °C
Maximum Ambient Temperature: +70 °C
Operating Mode: S1
Service life L10 at 40 °C: 60000 hours
Certifications: UL, CSA, VDE, EAC, etc.
Type: DC Axial Compact Fan
