Description

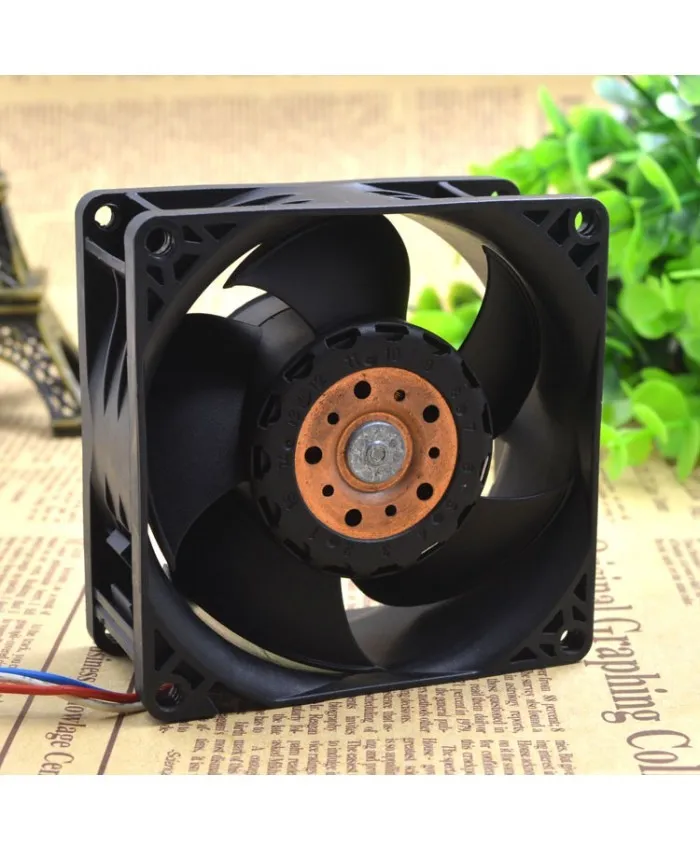

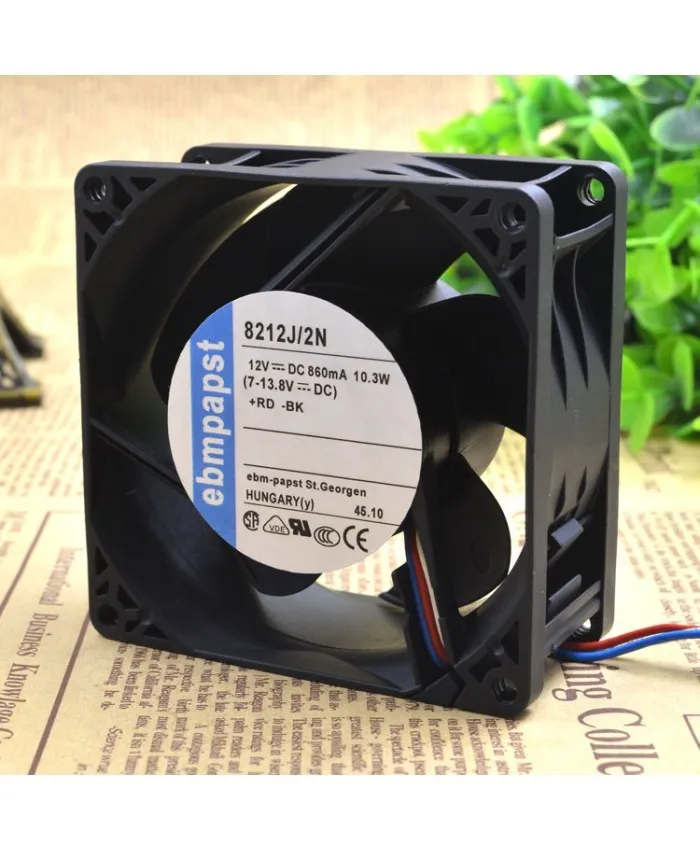

Model: 8212J/2N
Manufacturer:ebmpapst
Nominal Voltage: 12 VDC
Voltage Range: 7 – 13.8 VDC
Rated Power: 10W
Rated Current: 0.86A
Rated Speed: 8400 min⁻¹
Airflow: 132 m³/h
Noise Level: 55dBA
Series: 8000 J Series
Dimensions: 80x80x38mm
Bearing Type: Ball bearing
Electrical Connection: 3 leads, with 3-pin connector
Lead Length: Approximately 313mm
Mounting: Standard 80x80mm fan mounting holes
Motor Protection: Electronic protection against reverse polarity protection and blocking
Monitoring Output: Sensor signal for speed monitoring
Environmental and Certifications:
Minimum Ambient Temperature: -20 °C
Maximum Ambient Temperature: +70 °C
Operating Mode: S1
Service life L10 at 40 °C: 62500 hours
Service life L10 at maximum temperature: 32500 hours
Compliance: Typically conforms to relevant safety standards.
Type: DC Axial Compact Fan
