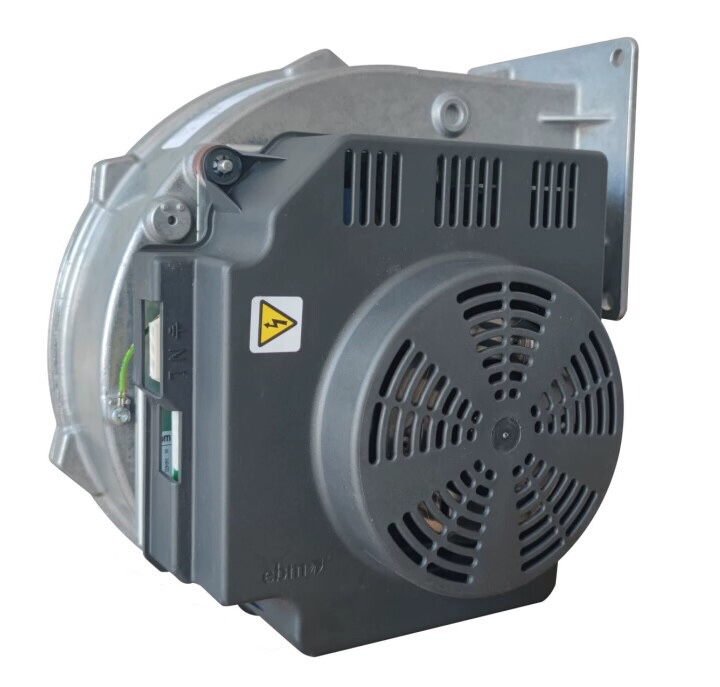

G1G170-AB53-80 ebm Printing machine fan

Description

Model: G1G170-AB53-80
Manufacturer: ebm-papst
Product Type: EC Centrifugal Fan

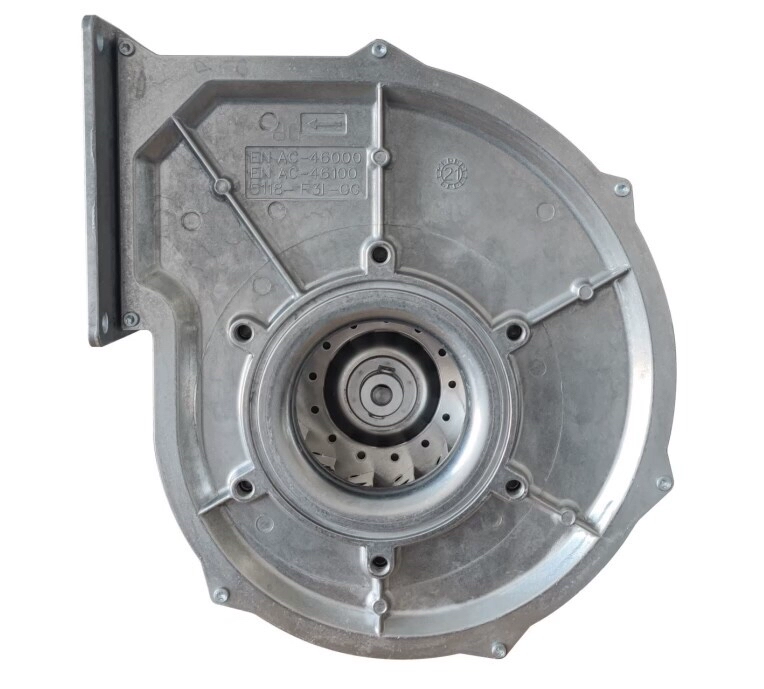

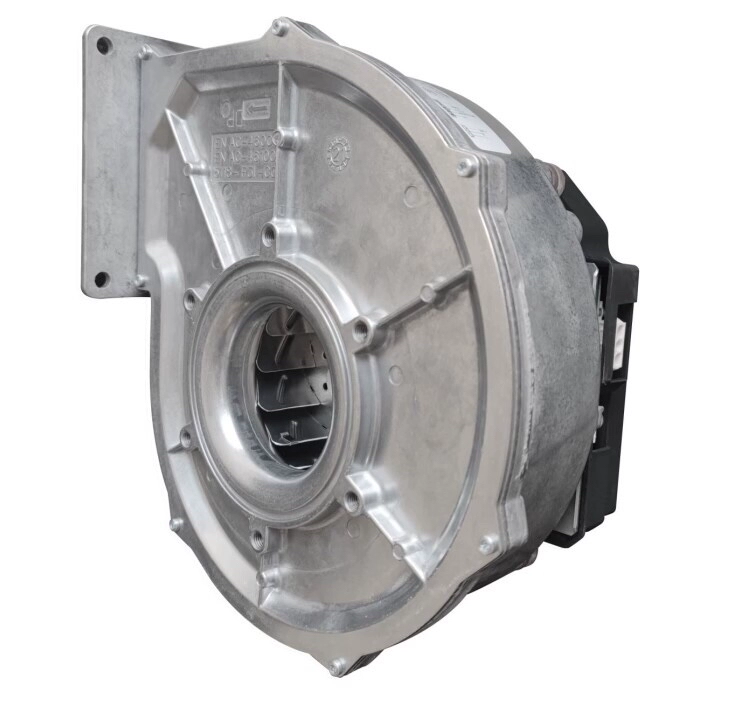

Structural Features: Backward-curved impeller, single inlet, with scroll housing (large flange), typically used as a gas blower.
Motor Type: M1G074-CF
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Power Consumption: 360 W
Rated Current: 1.6 A
PFC (Power Factor Correction): Active PFC
Leakage Current: ≤ 3.5 mA
Electrical Connection: Leads with plug
Speed: 5830 min⁻¹ (RPM)
Airflow: 380 CFM 645.6 m³/h
Direction of Rotation: Clockwise (viewed towards the rotor)
Operation Mode: S1 (Continuous operation)
Fan Size / Impeller Diameter: 170 mm
Overall Dimensions: Scroll housing dimensions approximately 257 x 273 mm
Mass: Approx. 4.47 kg
Bearing Type: Ball bearing
Impeller Material: Aluminum sheet
Scroll / Housing Material: Die-cast aluminium
Protective Cover Material: Polyflam RPP 374-ND CS1 (UL 97-V0 compliant)
Rotor Surface: Painted black
Cooling Bore / Aperture: Rotor-side
Degree of Protection: IP20
Insulation Class: “B”
Minimum Ambient Temperature: -25 °C
Maximum Ambient Temperature: 55 °C
Max. Permitted Motor Temp. (transport/storage): +80 °C
Min. Permitted Motor Temp. (transport/storage): -40 °C
Mounting Position: Any
Motor Protection: Internally wired thermal overload protector (TOP).
EMC Interference Immunity: According to EN 61000-6-2 (industrial environment)
EMC Interference Emission: According to EN 61000-6-3 (household environment)1
EMC Harmonics: According to EN 61000-3-2/3
Approvals: CSA C22.2 Nr.113; UL 507; CE

This fan is mainly used in printing presses. G1G170-AB53-80 ebm Printing machine fan
