K2E250-RA50-14 ebmpapst AC230V centrifugal fan

Description

The product model K2E250-RA50-14 is an AC centrifugal fan manufactured by ebm-papst, belonging to the RadiCal series. This fan is designed to provide efficient aerodynamic performance and is commonly used in ventilation and cooling systems where space and efficiency are critical.

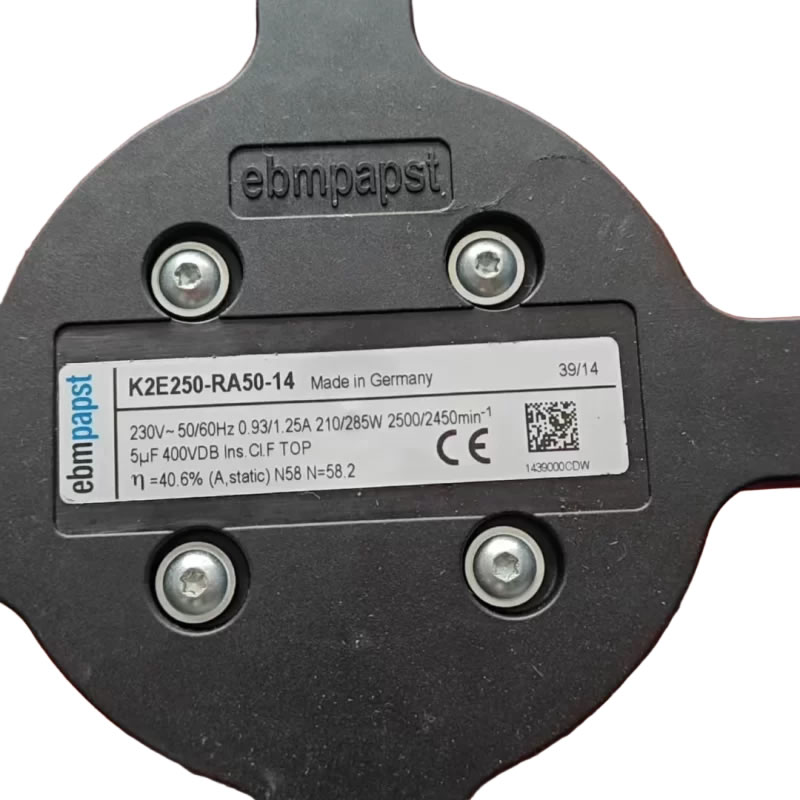

Model:K2E250-RA50-14
Manufacturer:ebm-papst
Type: AC centrifugal compact fan

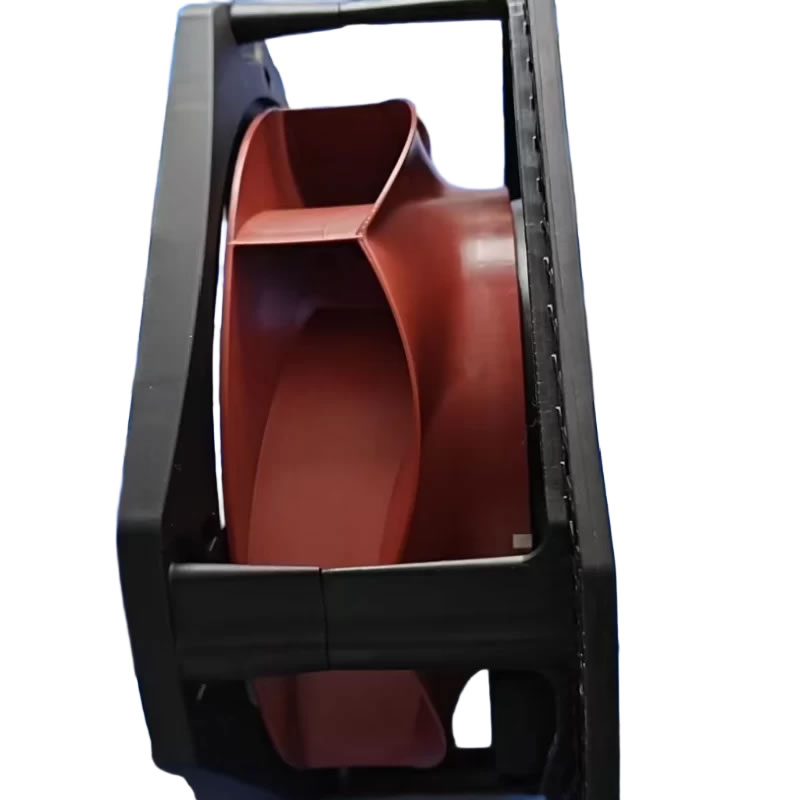

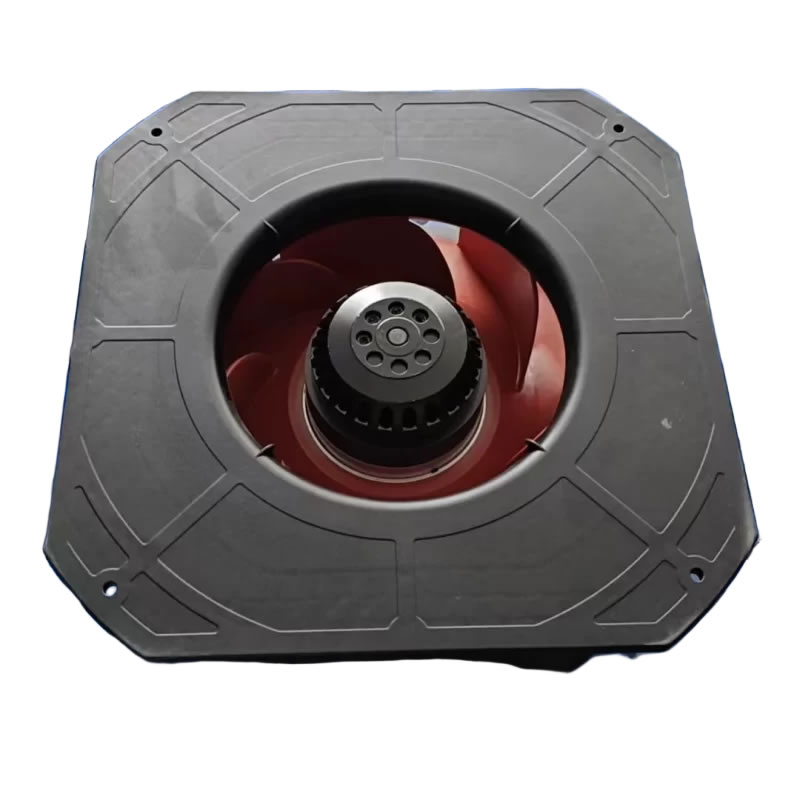

Structural Features: Backward-curved impeller, single inlet, with housing.
Motor Type: M2E068-EC
Phase: 1~ (Single phase)
Nominal Voltage: 230 VAC
Frequency: 60 Hz
Rated Current: 1.25 A
Power Consumption: 285 W
Fan Size: 250 mm
Speed: 2450 min⁻¹ (RPM) (Data point at 60Hz)
Capacitor: 5 µF
Capacitor Voltage: 400 VDB
Minimum Back Pressure: 0 Pa
Minimum Ambient Temperature: -25 °C
Maximum Ambient Temperature: 30 °C
Starting Current: 1.4 A (Data point at 60Hz)
Weight: Approximately 3.7 kg
Impeller Material: PA plastic
Housing Material: PA plastic
Number of Blades: 7
Direction of Rotation: Clockwise (viewed towards the rotor)
Degree of Protection: IP44 (installation and position-dependent as per EN 60034-5)
Insulation Class: “F”
Moisture (F) / Environmental (H) Protection Class: H1
Max. Permitted Ambient Temp. for Motor (transport/storage): +80 °C
Min. Permitted Ambient Temp. for Motor (transport/storage): -40 °C
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request.
Connection Type: Leads or connectors
