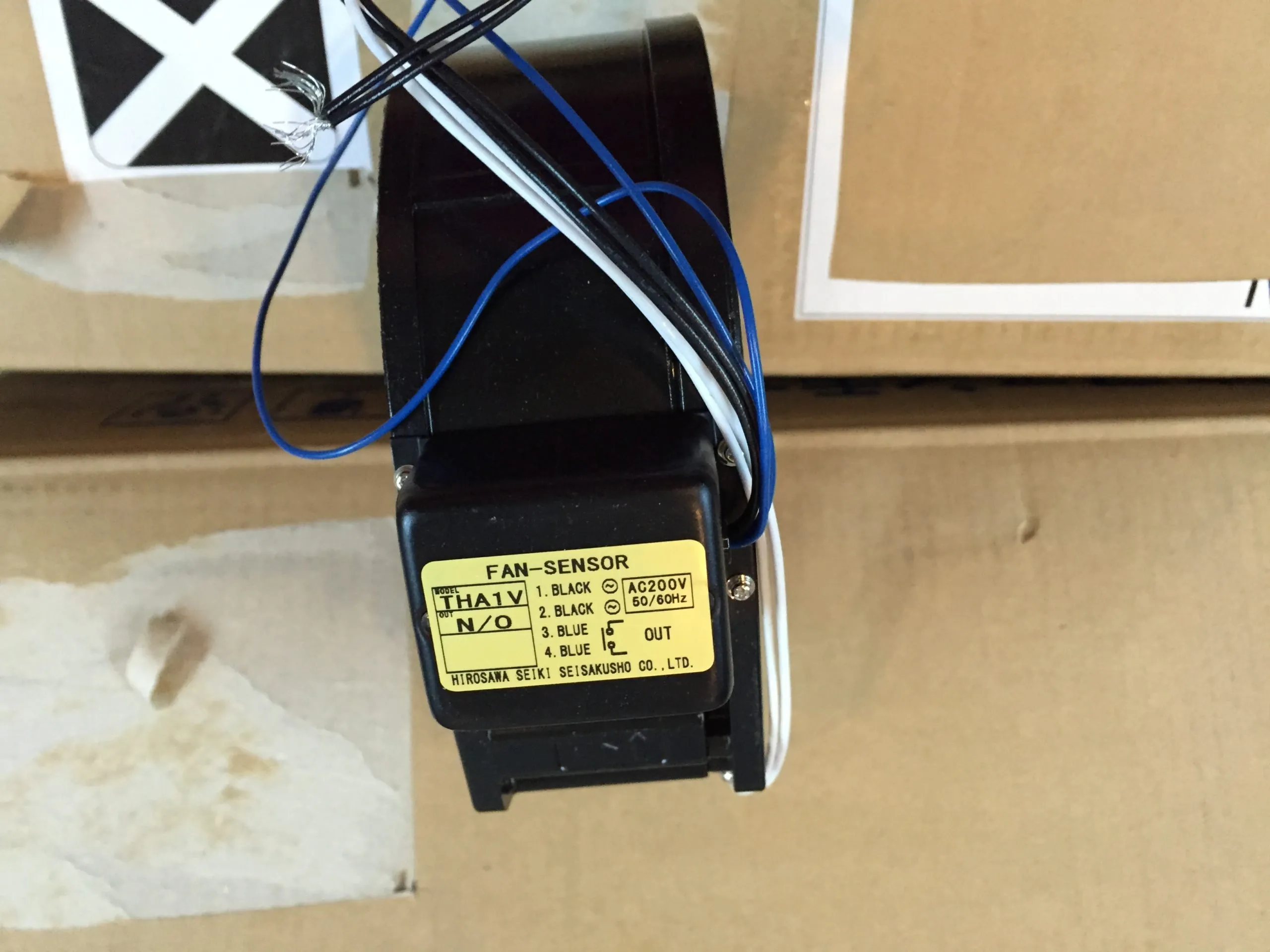

IKURA 1311-582 THA1V-7556XV-TP 200VAC 50/60Hz thermally protected 2ball bearing fan

Description

IKURA 1311-582 THA1V-7556XV-TP 200VAC 50/60Hz thermally protected 2ball bearing fan

Supplying Japanese Yuliang brand-new fans

Model: THA1X-7556X-TP

Size: 172*150*55MM

Voltage: 230VAC

Air volume: 211.CFM 360m3/h

Power: 43/40W

Turn: 2650 min-1

Origin Brand: IKURA FAN, Yuliang, Japan

Fan Frame: Black Baking Paint Aluminum Alloy Die Casting Anticorrosion

Wind blade: all-metal fan blade

Fan Direction: Anticlockwise Running from the Fan Blade Direction

Motor: Cover Pole Motor

Temperature: – 40 degrees Celsius to + 75 degrees Celsius

Storage temperature: – 50 degrees Celsius to + 90 degrees Celsius

Bearing: High Precision NIB Double Ball Bearing

Power supply range: positive or negative 15% of rated power supply

Insulation resistance: greater than 500 megaohms

Voltage withstand: drain current 0.5 A 500V/1 minute

Working life: 80,000 hours at 25 degrees ambient temperature

Application field

Medical Rail vehicle Drive cooling Hotel

Industrial cleaning Electronic product New energy vehicles Supermarket
