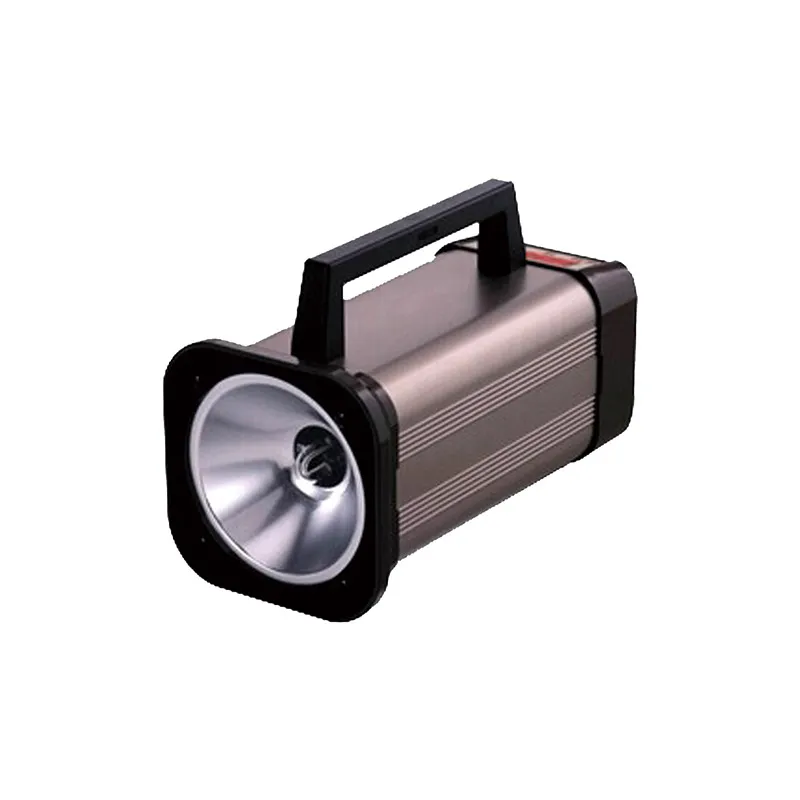

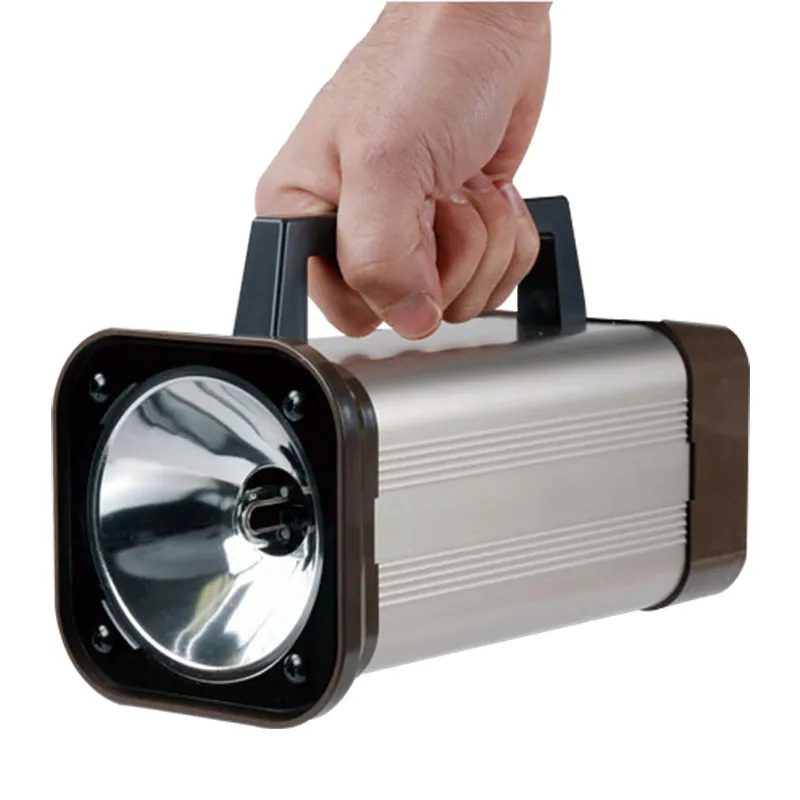

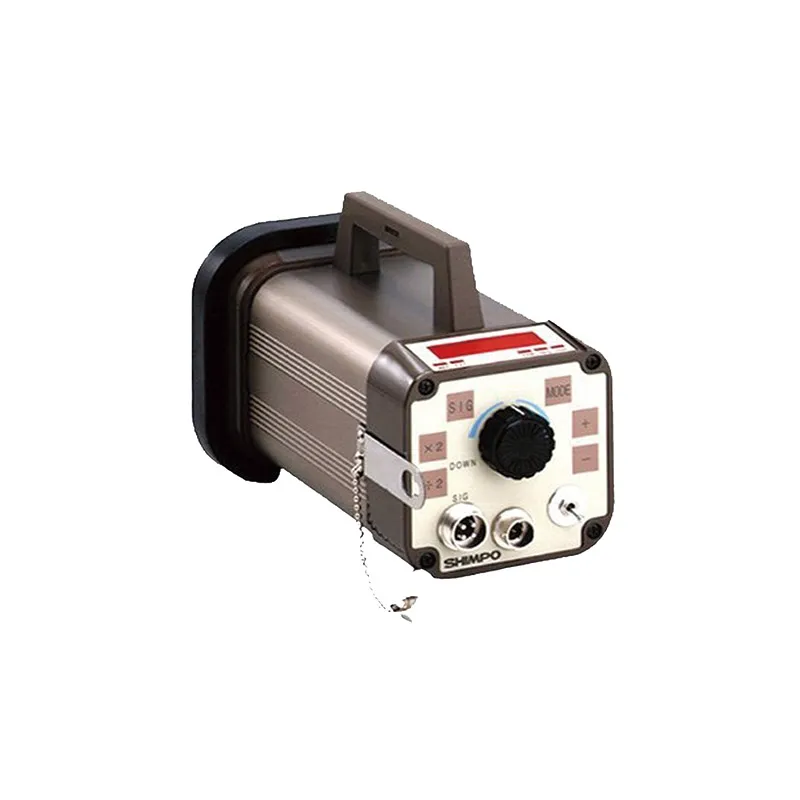

JAPAN SHIMPO DT-315N Multifunctional LED Digital Stroboscope Lamp

$1,203.56

387 in stock

SKU: DT-315N Category: Tag: Brand:

Description

Portable Rechargeable Digital Stroboscope JAPAN SHIMPO DT-315N Multifunctional LED Stroboscope Lamp For Textile Industry

Stroboscope DT-311N

Brand :SHIMPO

Place:JAPAN

Type: DT-311N-DT315N.

Suitable for: printing industry, textile industry, electronic industry, industrial production.

SHIMPO A new generation of digital stroboscope structure is more concise, more complete, more convenient to carry

1.Check the rotation measuring devices, engines, gears, pulleys

2. Fan shaft, etc. eccentric exercise

3.Check the turbo engine and other high-speed operation

Japan SHIMPO DT-311N Digital Stroboscope Parameter

TypeDT-311NDT315N
Internal modelsStrobe range40.0–35,000RPM
AccuracyError of ± 0.01%
Resolution0.1RPM:40.0-4,9999.9RPM
0.2RPM:5,000-7,999.8RPM
0.5RPM:8,000-9,999.5RPM
1RPM:10,000-35,000RPM
Phase shiftUse the + / – buttons (360-6 seconds)
Display update timeAbout 0.2 second
Output signalSynchronization, 400msec, pulse output 0 to +12 VDC amplitude (approximately), 4.7k Ohms impedance
amplifier / down scalerTake 2,divided 2
External ModeStrobe range0.0-35,000RPM
Accuracy±0.01% ±1
Phase shift0-359”. 1°resolution
Delay Time40-10,000RPM,0-2,000msec
External trigger internal signalLO:0-0.8VDC,HI:2.5-12VDC,Pulse Width: 50usec min
Input impedance12CV 4.7K, 0V 6.8K
OverallDisplay5 digit,10mm high,LED
Flash tube power / lifeXenon, max 10W. (Strobe 100,000,000)
Strobe duration10-40usec
Photoreceptors Power12VDC(40mA)
Low battery displayShow “L”
Power requirements230VAC,±10%60/50Hz,30VABuilt-in Battery
Operate temperature0-40
Weight1.2kg2kg
Dimension185×120×120mm250×120×120mm
Standard EquipmentHand shankHand shank and AC charger



Additional information

Weight1 kg
Type

Hand Tool Parts

Model Number

DT315N

is_customized

Yes

Material

Aluminium-copper Alloy

Usage

Commercial Manufacture

Strobe range

40.0–35, 000RPM

Display update time

About 0.2 second

Suitable for

Printing industry, textile industry, electronic industry

Input impedance

12CV 4.7K, 0V 6.8K

Display

5 digit, 10mm high, LED

brand

SHIMPO
