Description

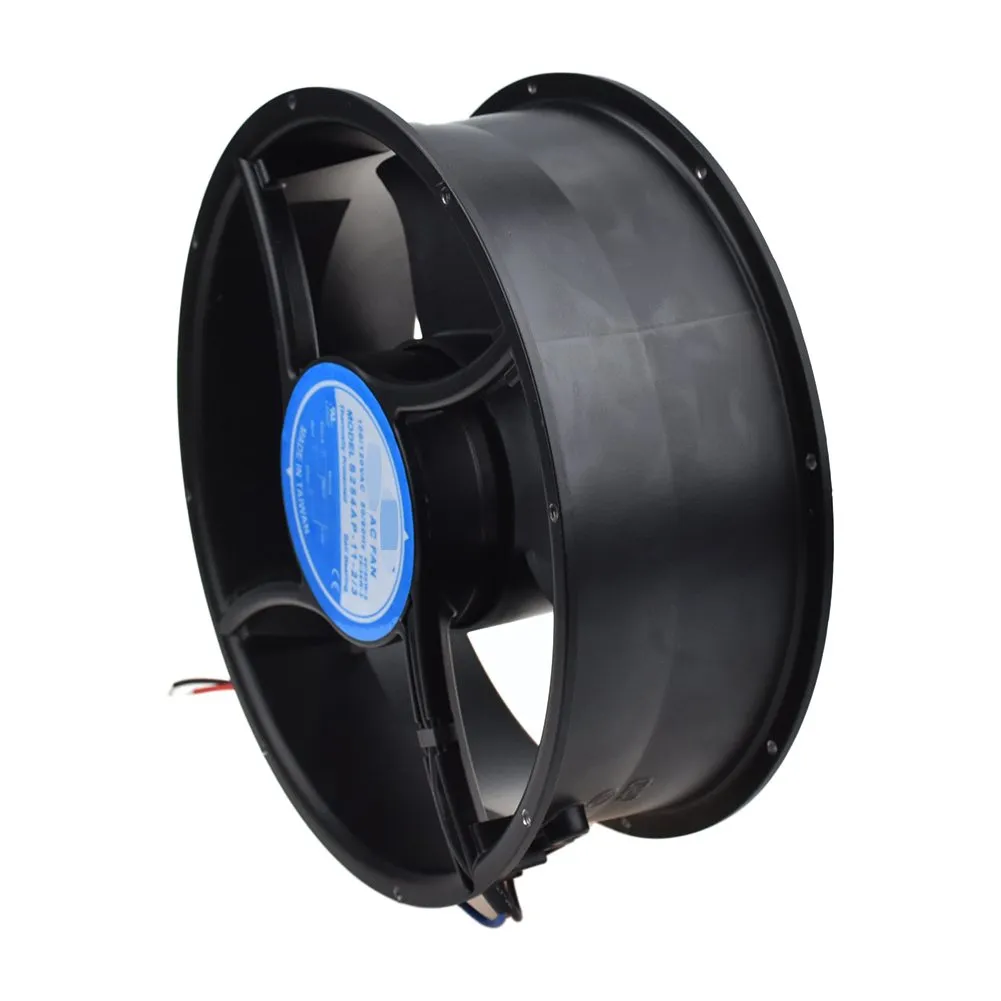

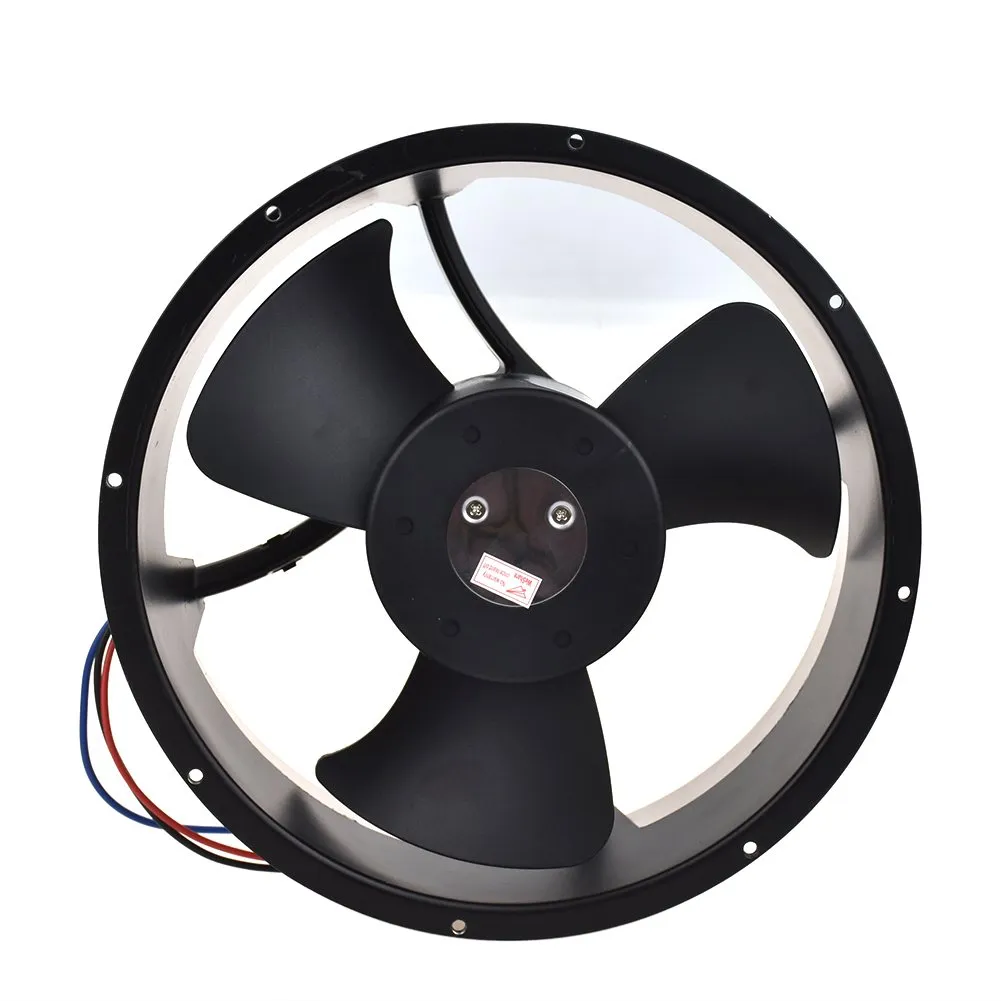

The Sinwan S254AP-11-2/3 is a heavy-duty AC axial cooling fan engineered for high-capacity thermal regulation in industrial environments. Constructed with a durable die-cast aluminum housing and a UL94V-0 rated thermoplastic PBT impeller, this unit is designed to withstand mechanical stress and elevated operating temperatures. The fan operates on a capacitor-run induction motor architecture, utilizing a precision dual ball bearing system to ensure extended service life and consistent performance under continuous duty cycles. With a 254mm diameter profile, it delivers significant air volume, making it an essential component for systems requiring rapid heat dissipation.
TECHNICAL SPECIFICATIONS
Manufacturer: Sinwan
Model Number: S254AP-11-2/3
Component Type: AC Axial Fan
Frame Dimensions: 254mm (Diameter) x 89mm (Depth)
Rated Voltage: 100 VAC / 120 VAC
Frequency: 50 / 60 Hz
Airflow Capacity: 470 CFM (50Hz) / 620 CFM (60Hz)
Rotational Speed: 1450 RPM (50Hz) / 1900 RPM (60Hz)
Bearing Type: Dual Ball Bearing
Housing Material: Die-Cast Aluminum (Black Painted)
Impeller Material: Thermoplastic PBT
Motor Structure: Capacitor-Run Induction Motor
Operating Temperature Range: -20°C to +70°C
Noise Level: 55 / 60 dBA

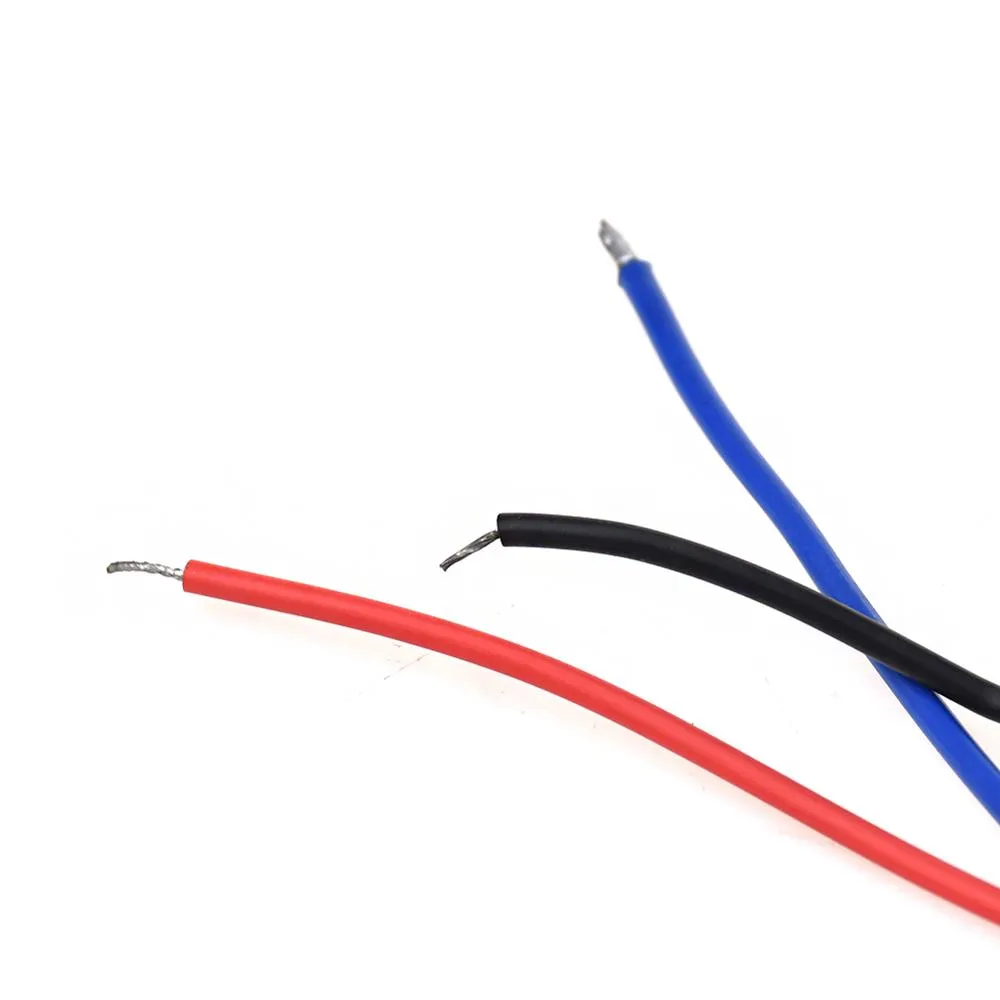

Termination Style: Terminal Block
Protection Class: Impedance Protected
Weight: 2.4 kg
INDUSTRIAL APPLICATION
This high-flow cooling solution is specifically calibrated for large-scale electrical cabinets, variable frequency drive (VFD) heat sinks, and industrial welding equipment where rapid heat exchange is mandatory to prevent thermal shutdown. The S254AP-11-2/3 ensures Technical Compatibility with legacy ventilation systems requiring 100V input, maintaining system integrity in regions with specific voltage standards. By utilizing Original Engineering specifications, this fan minimizes maintenance intervals and maximizes airflow efficiency. Contact us for current Lead Time and bulk integration support.
