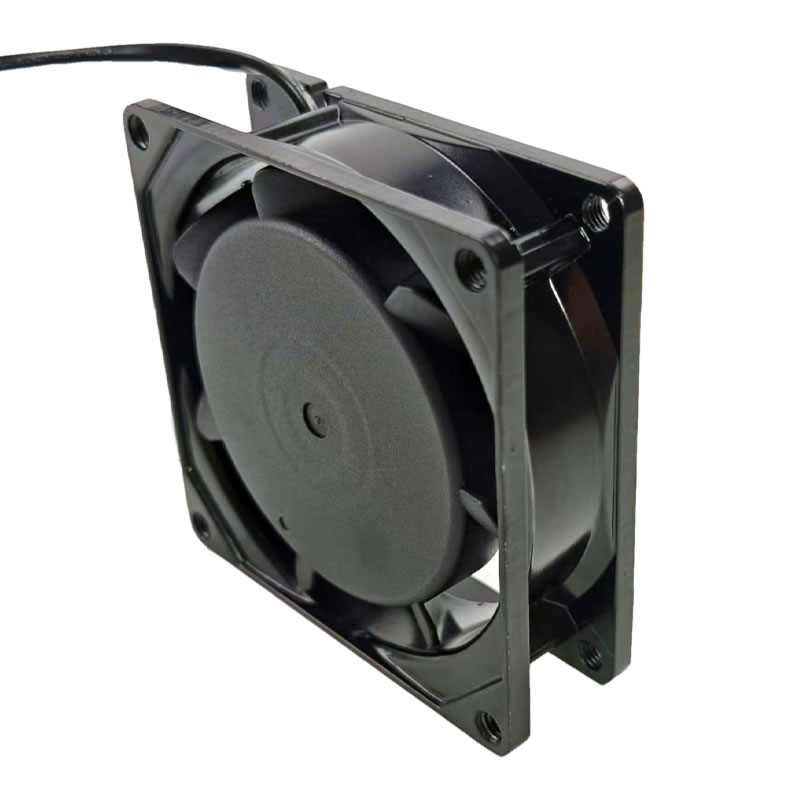

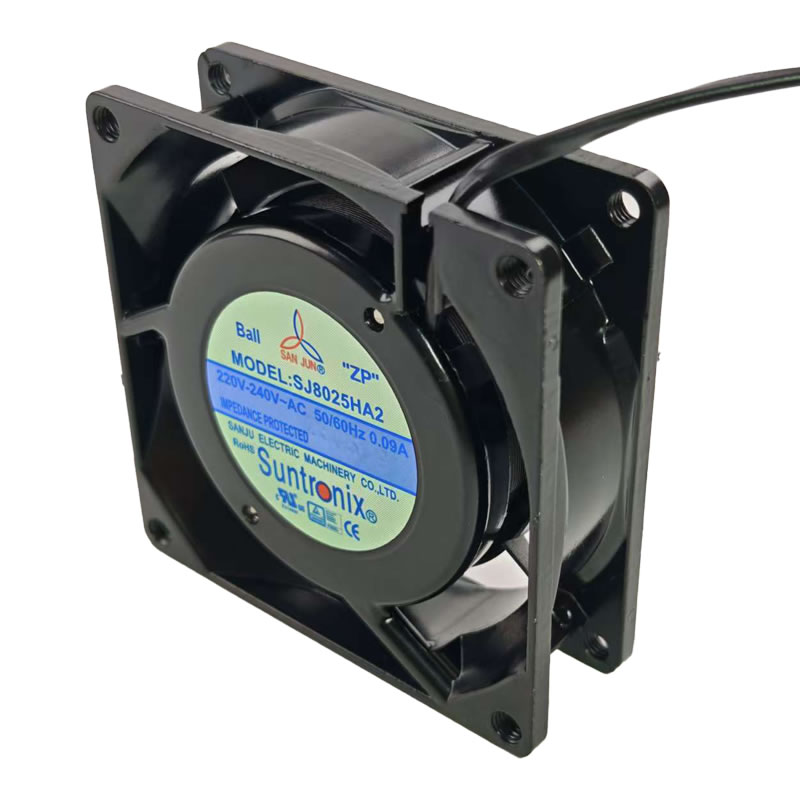

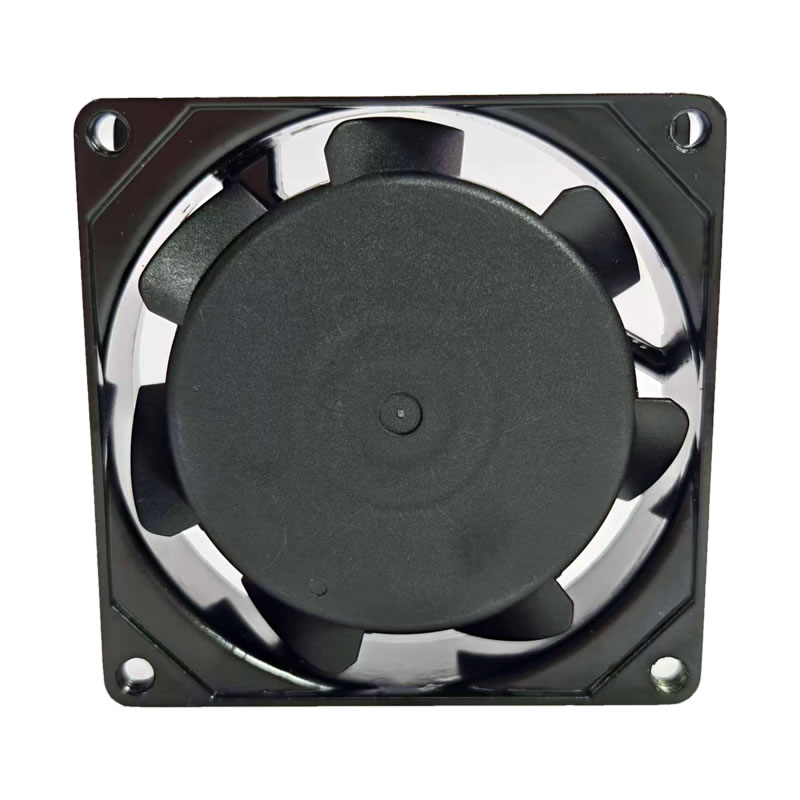

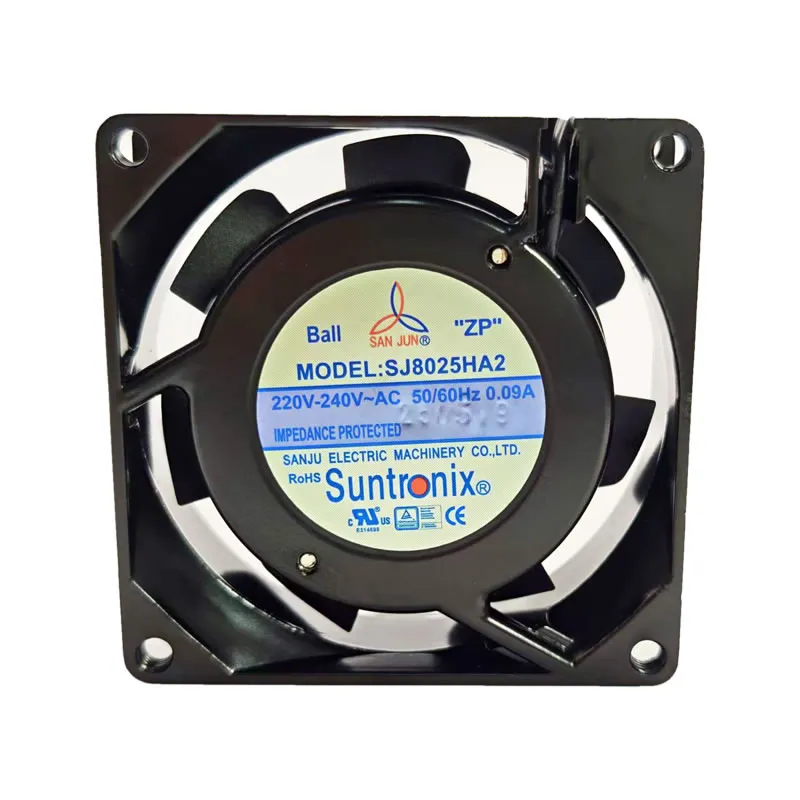

SJ8025HA2 SANJUN AC axial fan

Description

he SANJU SJ8025HA2 is a compact AC axial fan with dimensions of 80mm x 80mm x 25mm. It operates on 220-240 VAC at both 50 Hz and 60 Hz. This fan is designed for cooling in various electronic and industrial applications, emphasizing quiet and efficient airflow at lower speeds. At 50 Hz, it draws 0.09A of current and consumes 13W of power, reaching a speed of 1900 RPM and delivering an airflow of 15 CFM (25.5 m³/h) with a low noise level of 27 dB(A). At 60 Hz, the current is 0.07A, power consumption is 10W, with a speed of 2500 RPM, an airflow of 18 CFM (30.6 m³/h), and a noise level of 31 dB(A). It is available with either sleeve bearings, features a durable aluminum alloy frame, and weighs 250g, making it suitable for cooling sensitive equipment where lower noise is critical.

SJ8025HA2 Fan Parameters
Model: SJ8025HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.09A / 0.07A
Power Consumption (50Hz / 60Hz): 13 W / 10 W
Speed (50Hz / 60Hz): 1900 RPM / 2500 RPM
Airflow (50Hz / 60Hz): 15 CFM / 18 CFM (25.5 m³/h / 30.6 m³/h)
Static Pressure (50Hz / 60Hz): 0.09 inch H2O / 0.14 inch H2O
Noise Level (50Hz / 60Hz): 27 dB(A) / 31 dB(A)
Bearing Type: Sleeve Bearing
Frame Material: Aluminum Alloy (ADC-12)
Impeller Material: Thermoplastic
Termination: 2-Wire Leads or Terminals
Operating Temperature: -20°C to +85°C
Life Expectancy: 30,000 hours (sleeve bearing at 20°C), 60,000 hours (ball bearing at 20°C)
Weight: 250 g
Features: Corrosion-resistant, moisture-resistant structure, impedance protected.
Application: Electronic equipment, control cabinets, power supplies, test equipment, general cooling for noise-sensitive environments.
