Description

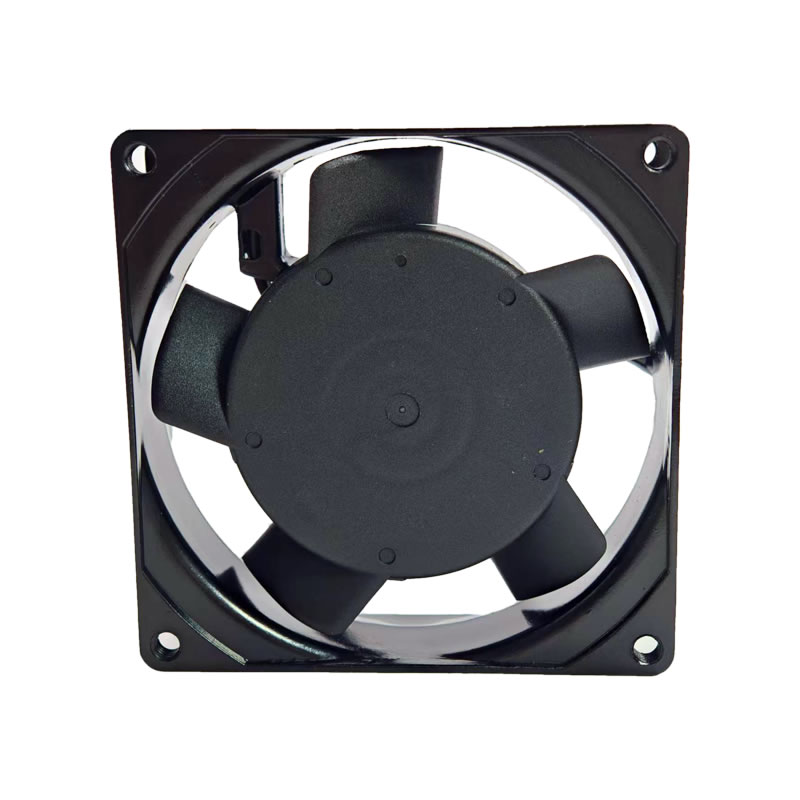

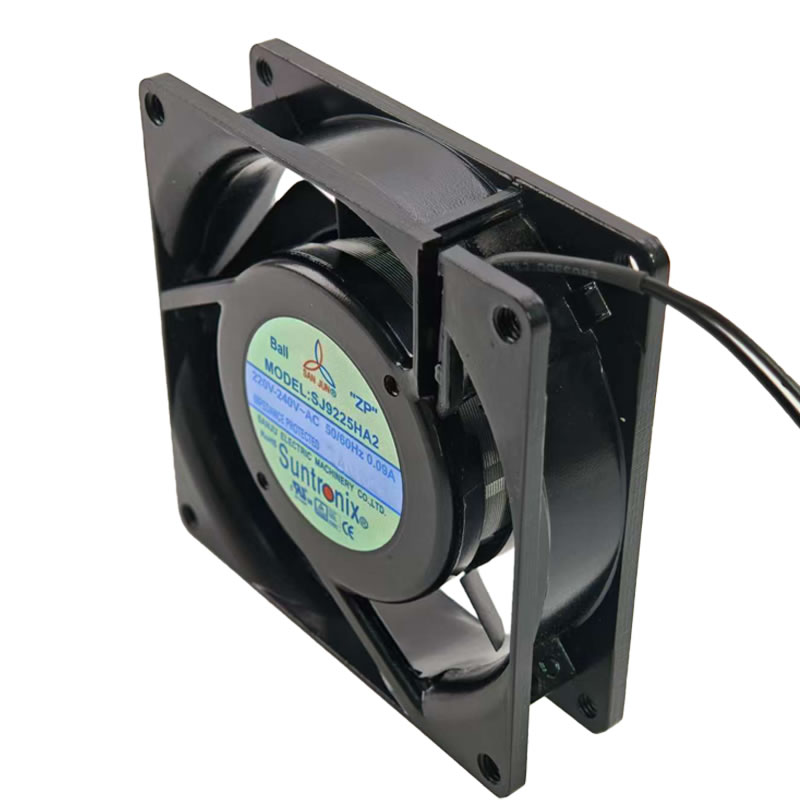

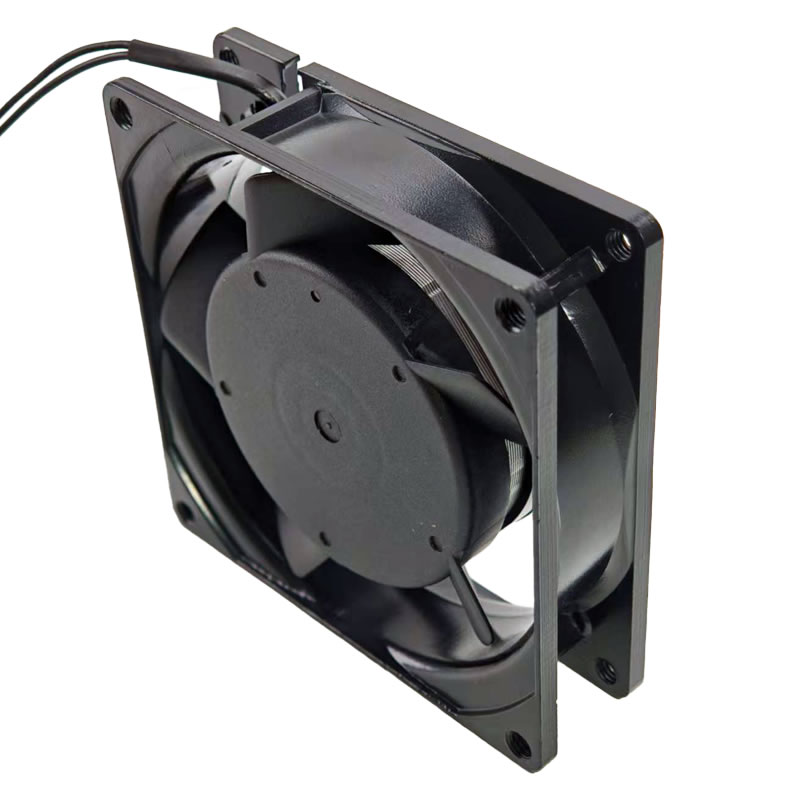

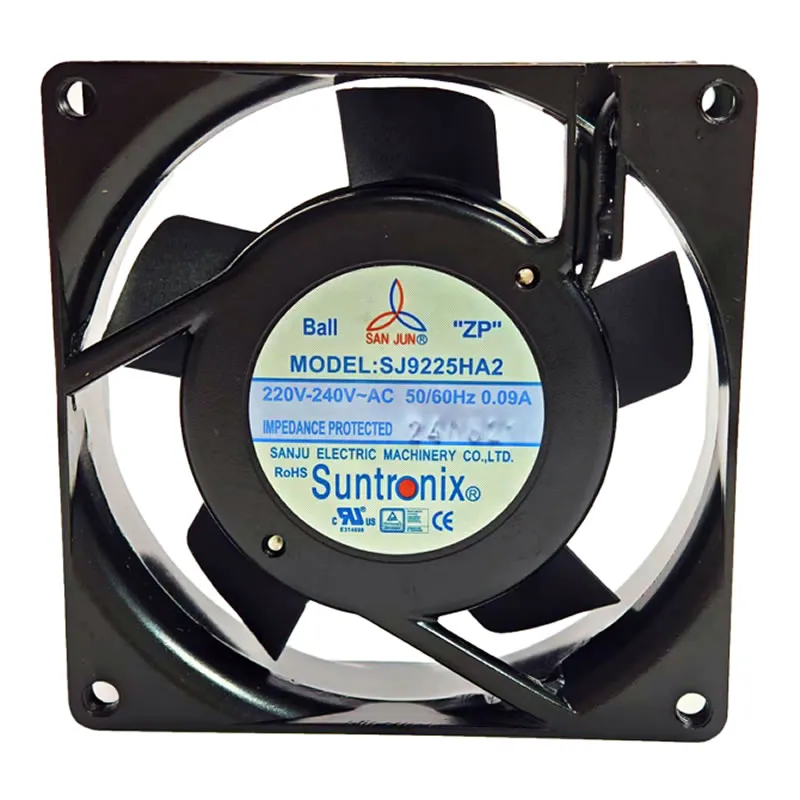

The SANJUN SJ9225HA2 is a standard AC axial fan with dimensions of 92mm x 92mm x 25mm. It operates on 220-240 VAC at both 50 Hz and 60 Hz, offering versatile power compatibility. This fan is designed for general cooling and ventilation applications. At 50 Hz, it draws 0.09A of current and consumes 13W of power, delivering an airflow of 33 CFM (56.1 m³/h) with a speed of 2500 RPM and a noise level of 32 dB(A). At 60 Hz, its performance includes 0.07A current, 10W power, 40 CFM (68 m³/h) airflow, a speed of 3000 RPM, and a noise level of 36 dB(A). It features a sleeve bearing and 2-wire leads, with a durable aluminum alloy frame and a thermoplastic impeller, weighing 260g, making it suitable for industrial machinery, control cabinets, and power supplies.
SJ9225HA2 Fan Parameters
Model: SJ9225HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.09A / 0.07A
Power Consumption (50Hz / 60Hz): 13 W / 10 W
Speed (50Hz / 60Hz): 2500 RPM / 3000 RPM
Airflow (50Hz / 60Hz): 33 CFM / 40 CFM (56.1 m³/h / 68 m³/h)
Static Pressure (50Hz / 60Hz): 0.18 inch H2O / 0.26 inch H2O
Noise Level (50Hz / 60Hz): 32 dB(A) / 36 dB(A)
Bearing Type: Sleeve Bearing
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic (UL94V-0 PBT)
Termination: 2-Wire Leads
Operating Temperature: -20°C to +85°C
Life Expectancy: 30,000 hours (at 40°C)
Weight: 260 g
Features: Impedance Protected
Application: Industrial machinery, control cabinets, power supplies, electronic enclosures, general cooling.
