SJ8025HE2 SANJUN 220V AC Axial Fan

Description

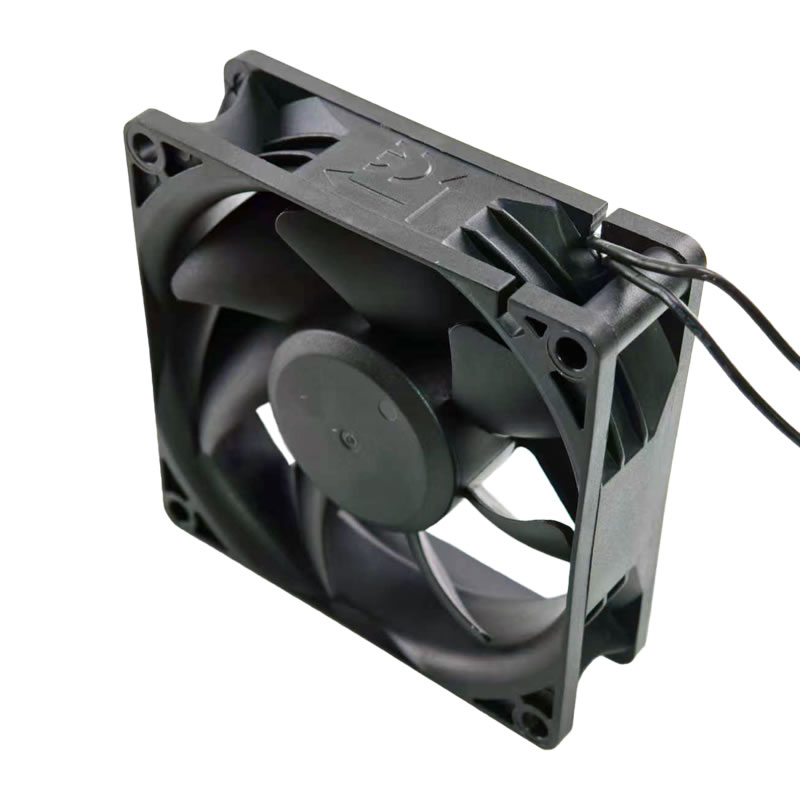

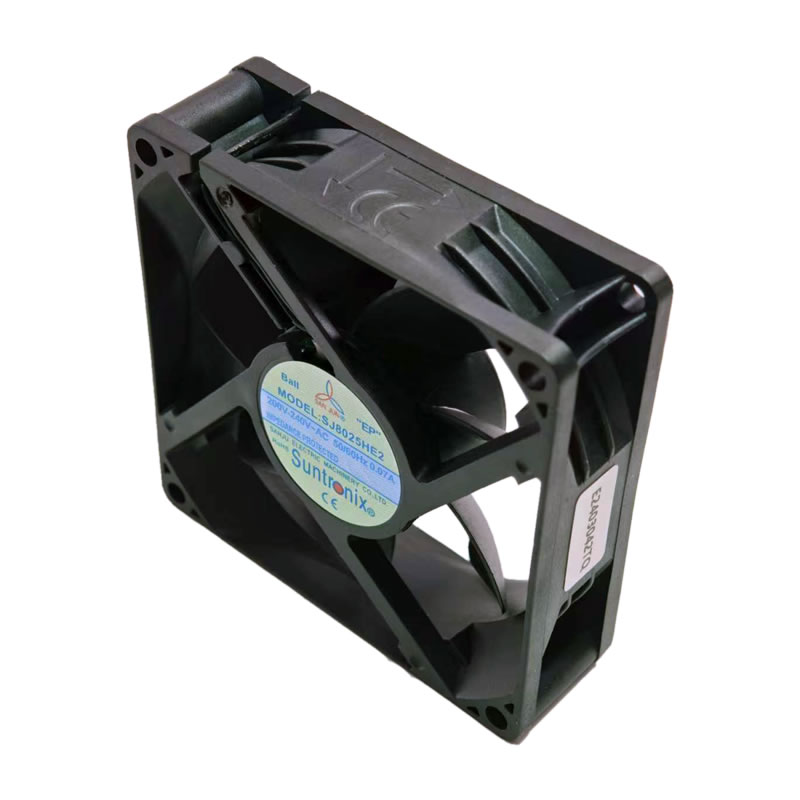

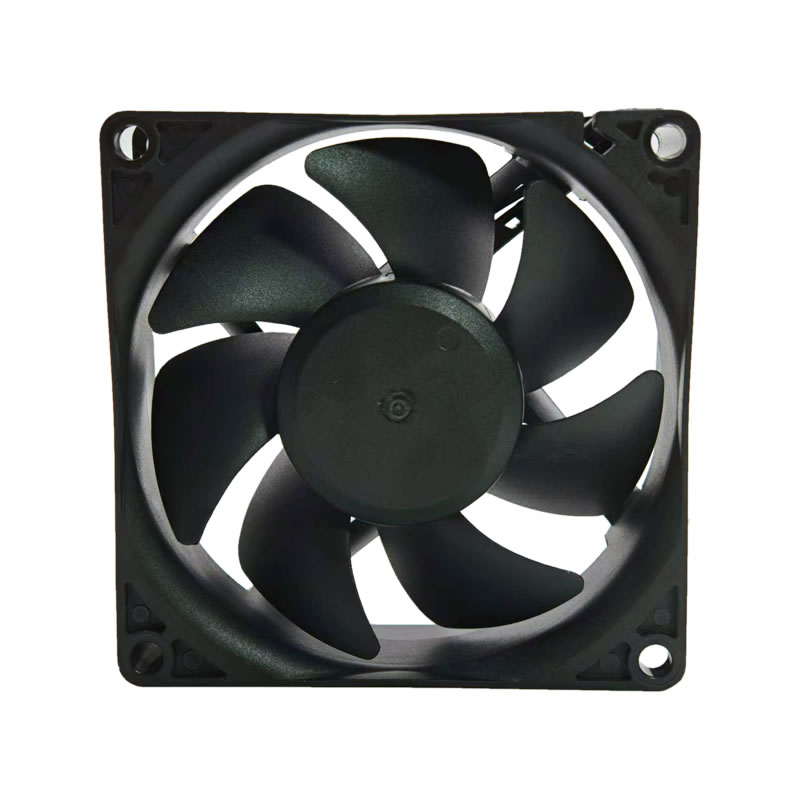

The SANJUN SJ8025HE2 is a high-performance AC Axial Fan measuring 80×80×25 mm. This fan operates on 220 VAC (Operating Voltage Range: 200 to 240 V) with a Rated Current of 0.07 A. It utilizes a robust Ball Bearing system and is designed to provide effective cooling for commercial and industrial applications like electrical cabinets and server racks.

SJ8025HE2 Fan Parameters
Model: SJ8025HE2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 220 V
Operating Voltage Range: 200 to 240 V
Frequency: 50/60  Hz
Rated Current: 0.07 A
Rated Input: 10.0 W
Rated Speed: 2,600 RPM
Airflow: 42.5 m3/h (25 CFM)
Static Pressure: 25 Pa (0.10 inAq)
Noise Level: 32 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: −10 to +70 ∘C
Expected Life: 50,000 h (40 ∘C)
Safety Approvals: CE

Application
The SJ8025HE2 is a widely used AC cooling solution, suitable for continuous duty in various industrial equipment, including control panels, power supplies, inverters, welding machines, and small enclosures requiring stable and reliable ventilation.
