Description

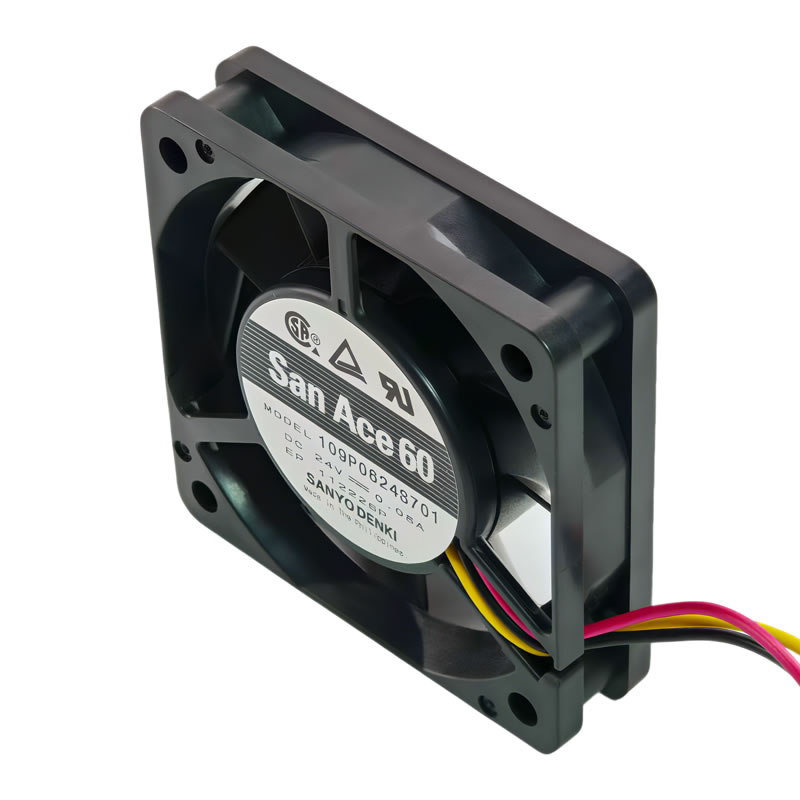

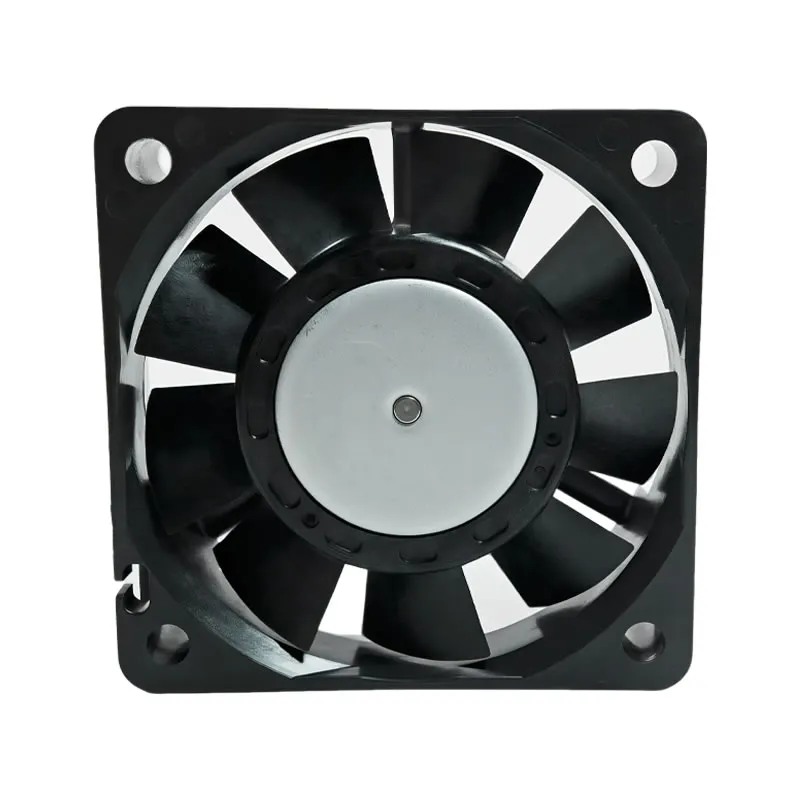

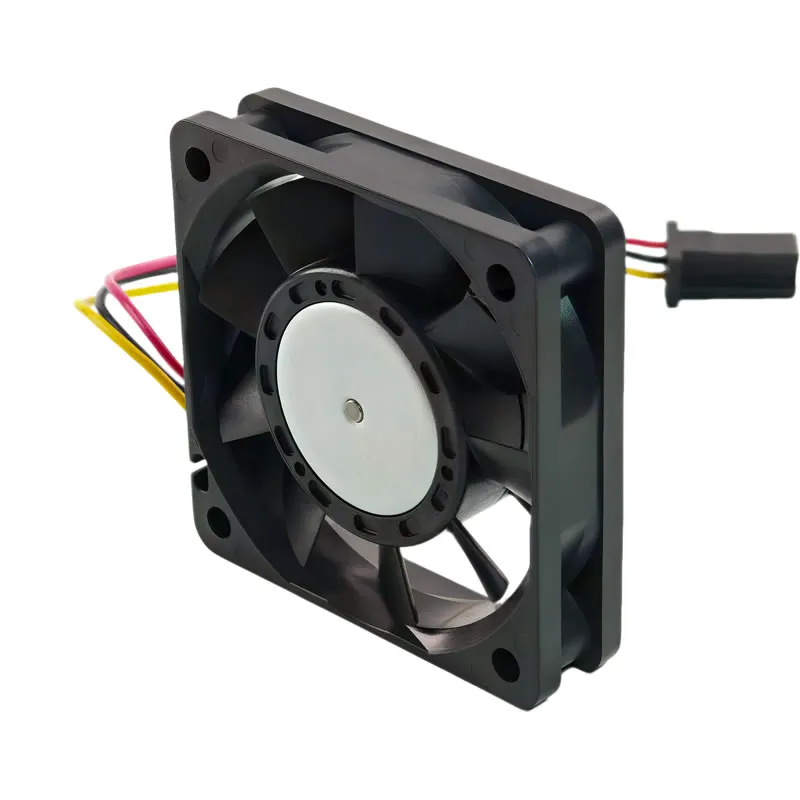

The Sanyo Denki 109P0624S701 is a standard 24VDC axial fan with dimensions of 60x60x15mm. It is designed for efficient cooling, providing 16.9CFM (28.7m³/h) of airflow and generating 6mmH₂O (58.8Pa) of static pressure. Operating at 5000RPM, the fan consumes 1.92W of power. It uses ball bearings for a long and reliable lifespan of 50,000 hours. The 3-wire termination provides a dedicated tachometer signal for monitoring fan speed. It is commonly used for cooling power supplies, automation equipment, and server components.
109P0624S701 Fan Parameters
Manufacturer: Sanyo Denki
Model: 109P0624S701
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 24 VDC
Current Rating: 0.08 A
Power Consumption: 1.92 W
Airflow: 16.9 CFM (28.7 m³/h)
Static Pressure: 6 mmH₂O (58.8 Pa)
Speed: 5000 RPM
Noise Level: 36 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 70 °C
Lifetime @ Temp: 50,000 Hours
Weight: 60 g
Application: This Sanyo Denki DC axial fan is suitable for cooling power supplies, automation equipment, and server components.
