Description

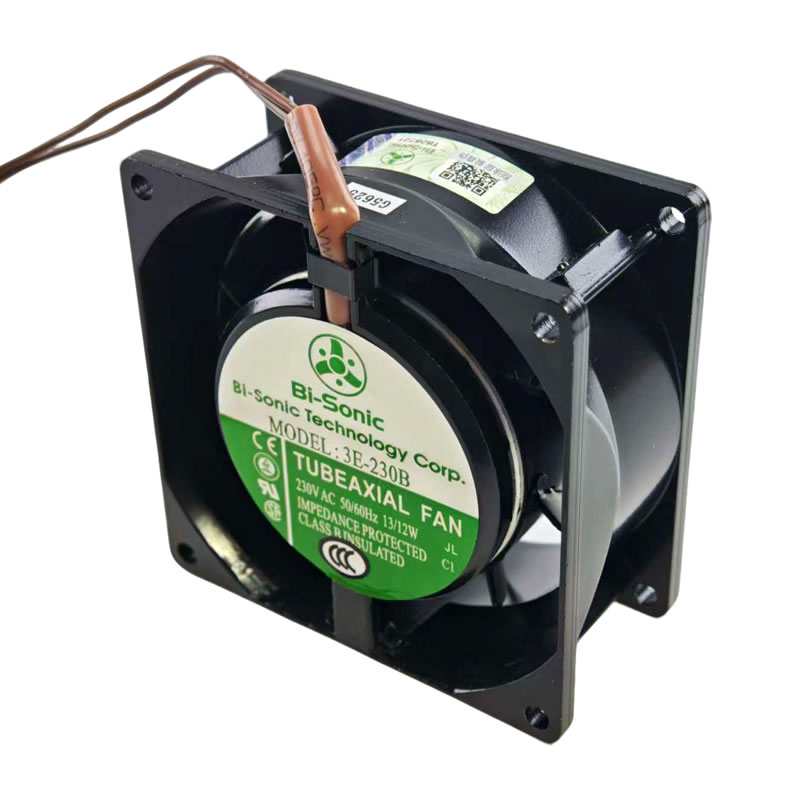

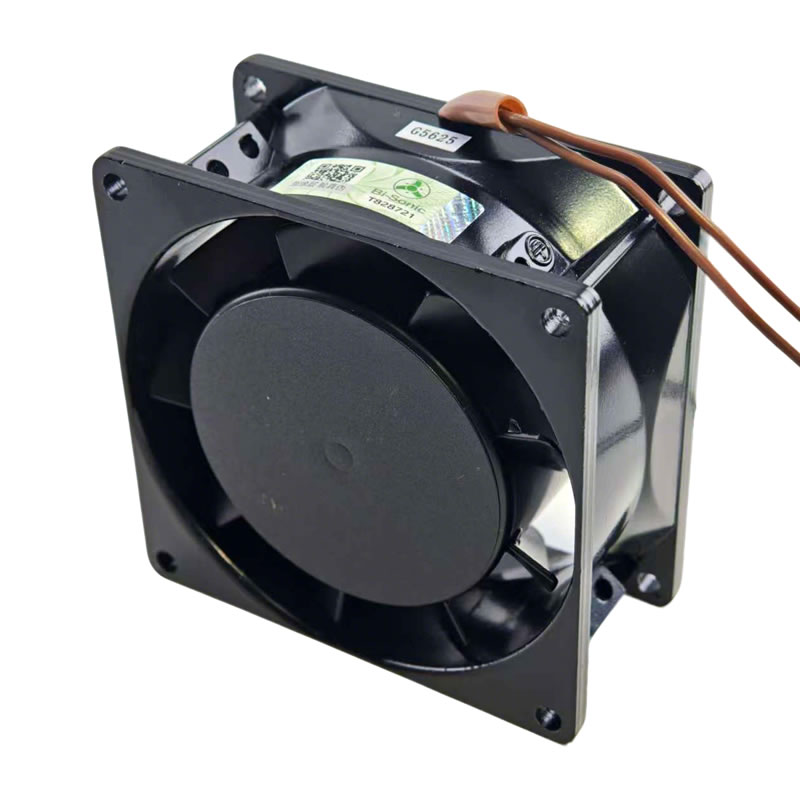

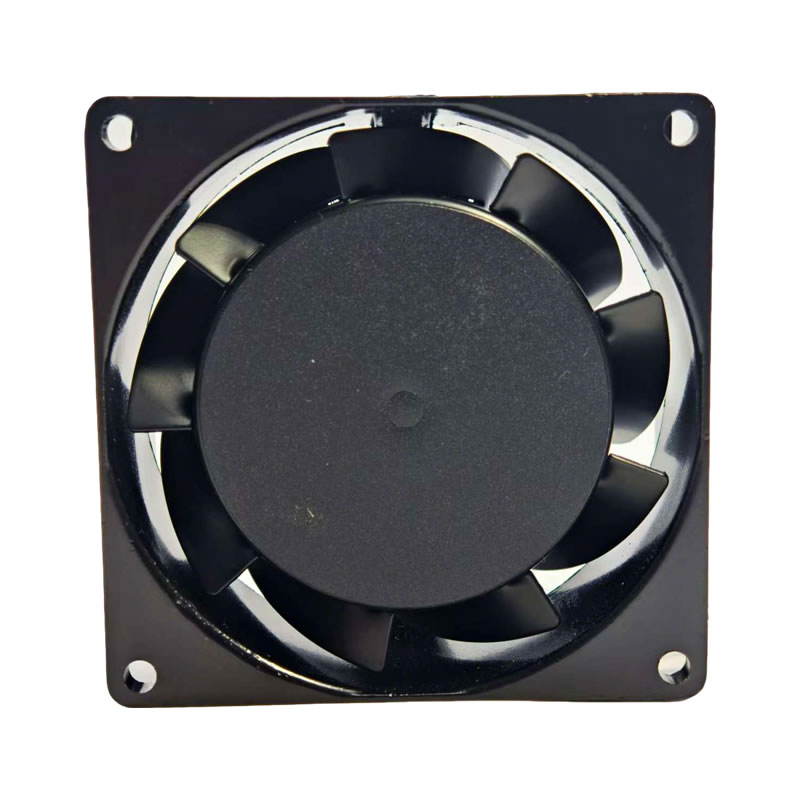

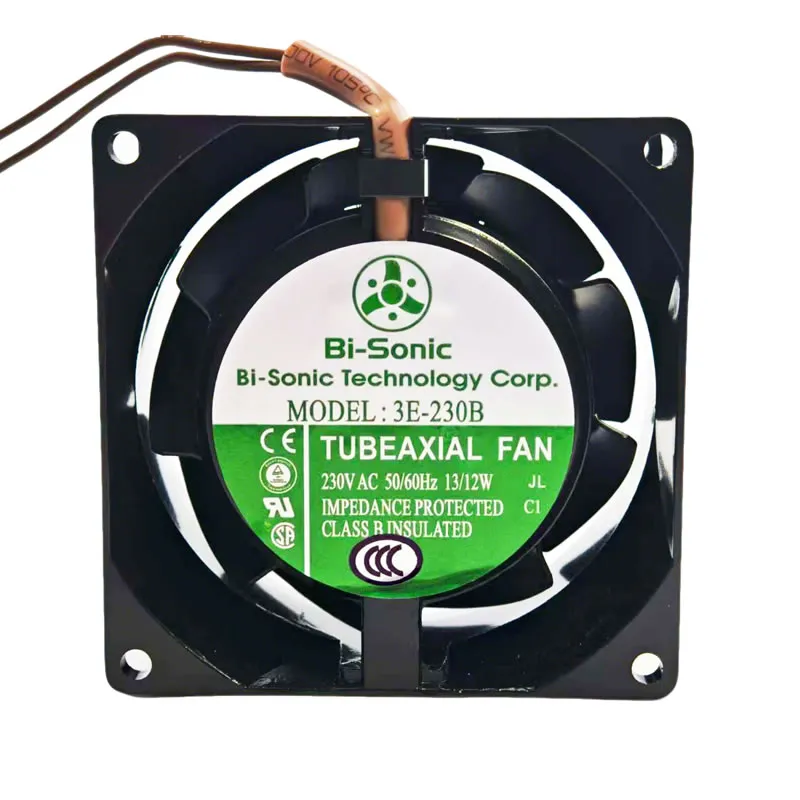

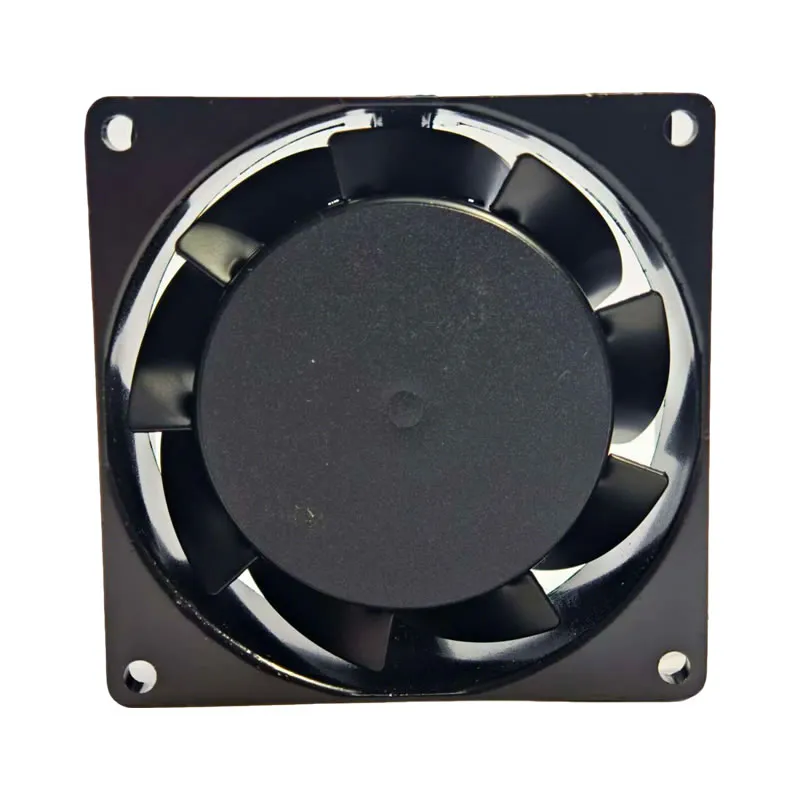

The Bi-Sonic 3E-230B is a reliable 230VAC axial fan with dimensions of 80x80x38mm. Designed for robust cooling, it operates efficiently on both 50Hz and 60Hz power frequencies. The fan features a durable die-cast aluminum frame, a plastic impeller, and ball bearings for enhanced longevity. The fan is terminated with two wire leads and is suitable for continuous operation across a wide temperature range. It is commonly used for cooling power supplies, control cabinets, and various electronic enclosures.
3E-230B Fan Parameters
Manufacturer: Bi-Sonic
Model: 3E-230B
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 230 VAC
Current Rating: 0.085 A (50 Hz), 0.075 A (60 Hz)
Power Consumption: 19.55 W (50 Hz), 17.25 W (60 Hz)
Airflow: 22 CFM (37.4 m³/h) @ 50 Hz, 26 CFM (44.2 m³/h) @ 60 Hz
Static Pressure: 3.0 mmH₂O (29.4 Pa) @ 50 Hz, 3.4 mmH₂O (33.3 Pa) @ 60 Hz
Speed: 2150 RPM @ 50 Hz, 2500 RPM @ 60 Hz
Noise Level: 27 dB(A) @ 50 Hz, 31 dB(A) @ 60 Hz
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Plastic
Operating Temperature: -40 °C ~ 80 °C
Weight: 420 g
Application: This Bi-Sonic AC axial fan is suitable for cooling power supplies, control cabinets, and electronic enclosures.
