Description

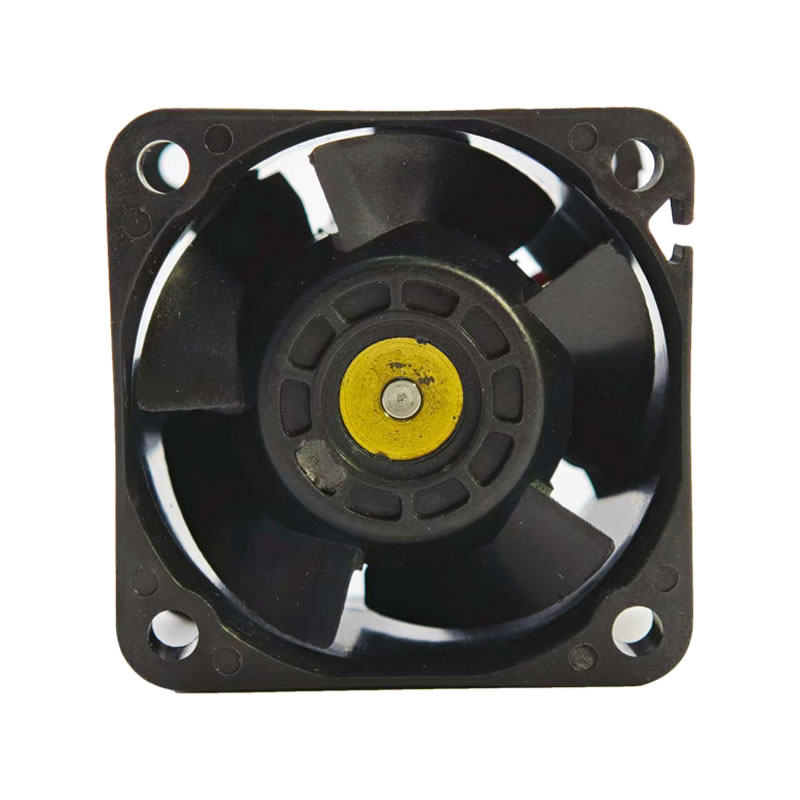

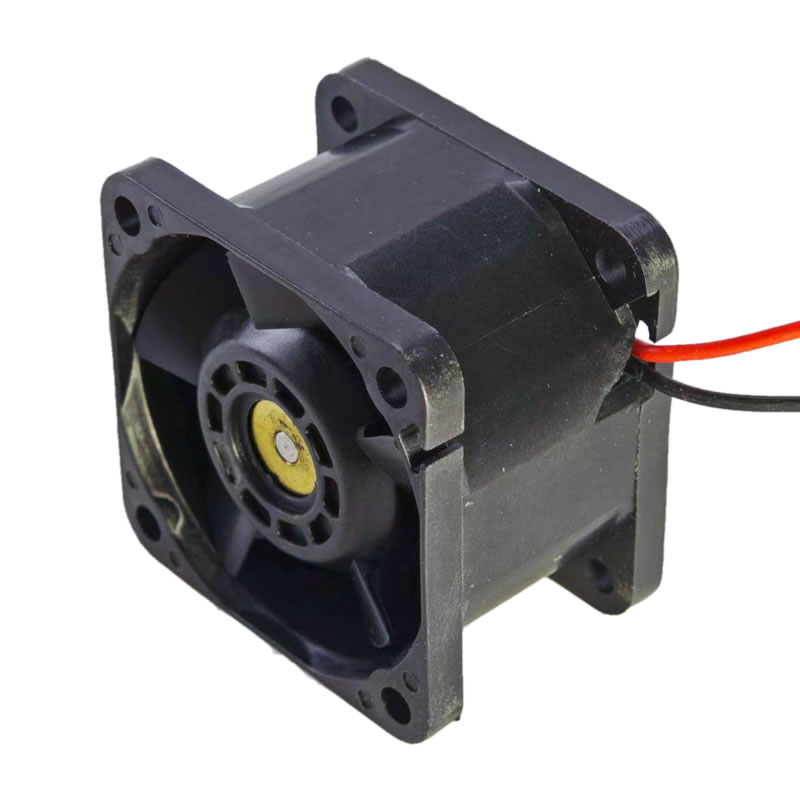

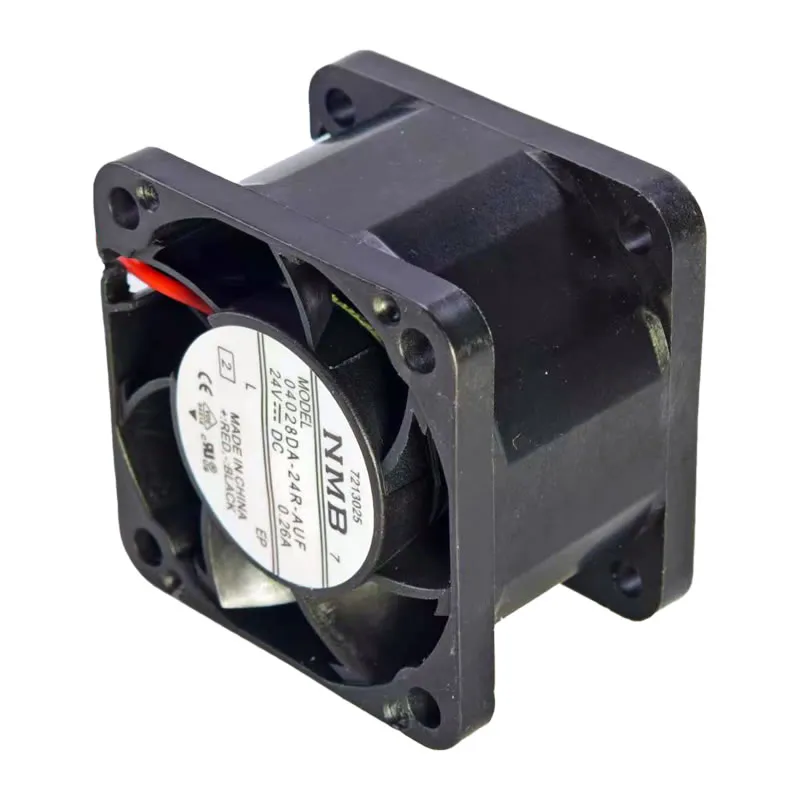

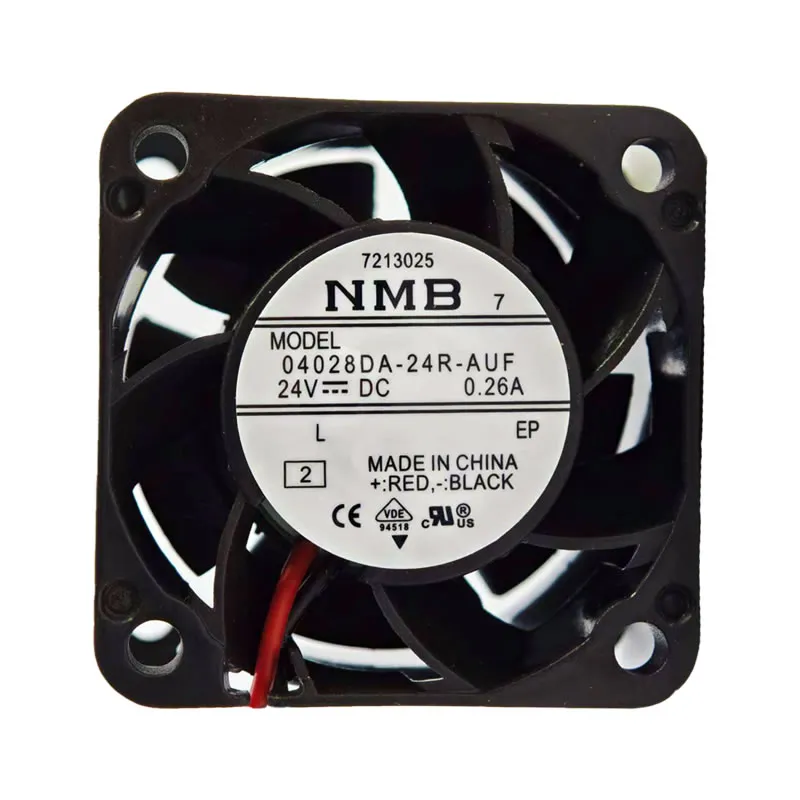

The Nidec 04028DA-24R-AUF is a high-performance 24VDC axial fan with dimensions of 40x40x28mm. It is designed for compact applications that require very high static pressure and concentrated airflow. It delivers 26CFM (44.2m³/h) of airflow and generates 1.93inchH₂O (480.9Pa) of static pressure. Operating at a high speed of 18000RPM, the fan consumes 6.24W of power and is built with durable plastic materials. It uses ball bearings for a long and reliable lifespan of 60,000 hours. The two-wire termination provides a direct power connection. It is commonly used for cooling high-density electronics, servers, and telecommunications equipment.
04028DA-24R-AUF Fan Parameters
Manufacturer: Nidec
Model: 04028DA-24R-AUF
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 24 VDC
Current Rating: 0.26 A
Power Consumption: 6.24 W
Airflow: 26 CFM (44.2 m³/h)
Static Pressure: 1.93 inch H₂O (480.9 Pa)
Speed: 18000 RPM
Noise Level: 55 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 70 °C
Lifetime @ Temp: 60,000 Hours @ 40 °C
Weight: 53 g
Application: This Nidec DC axial fan is suitable for cooling high-density electronics, servers, and telecommunications equipment.
