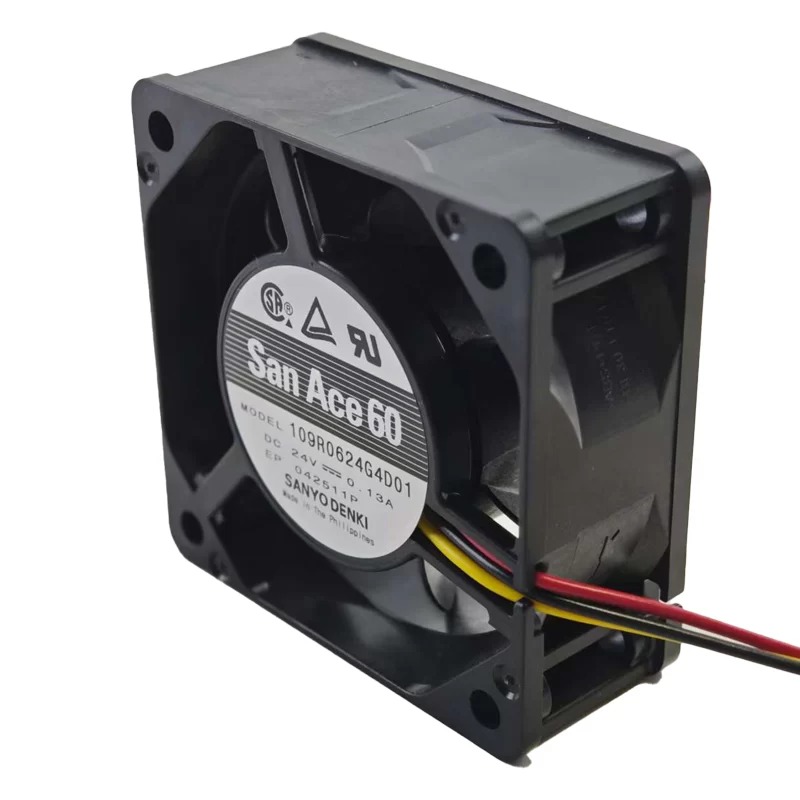

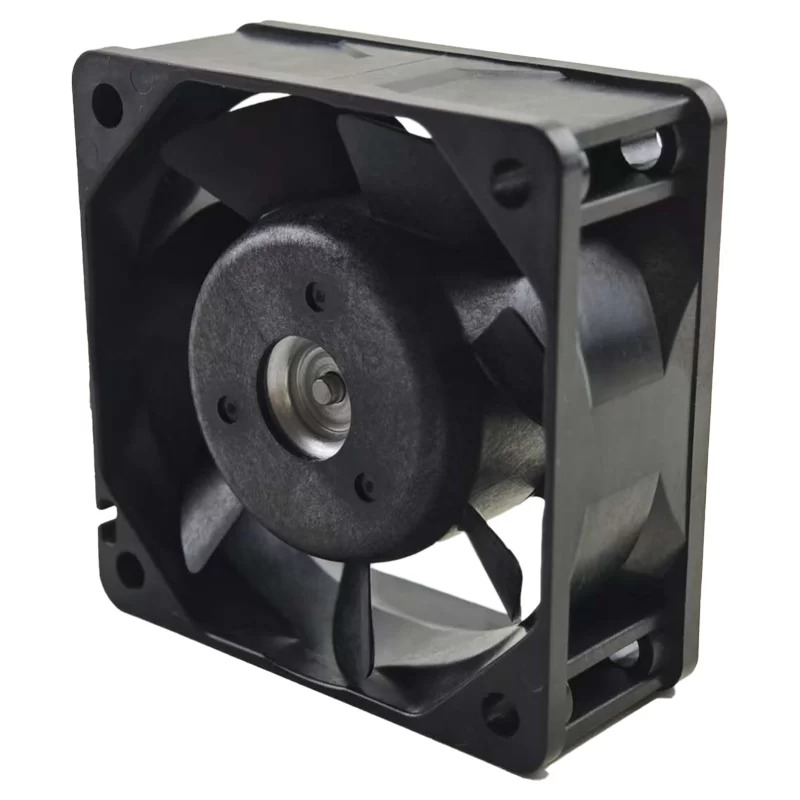

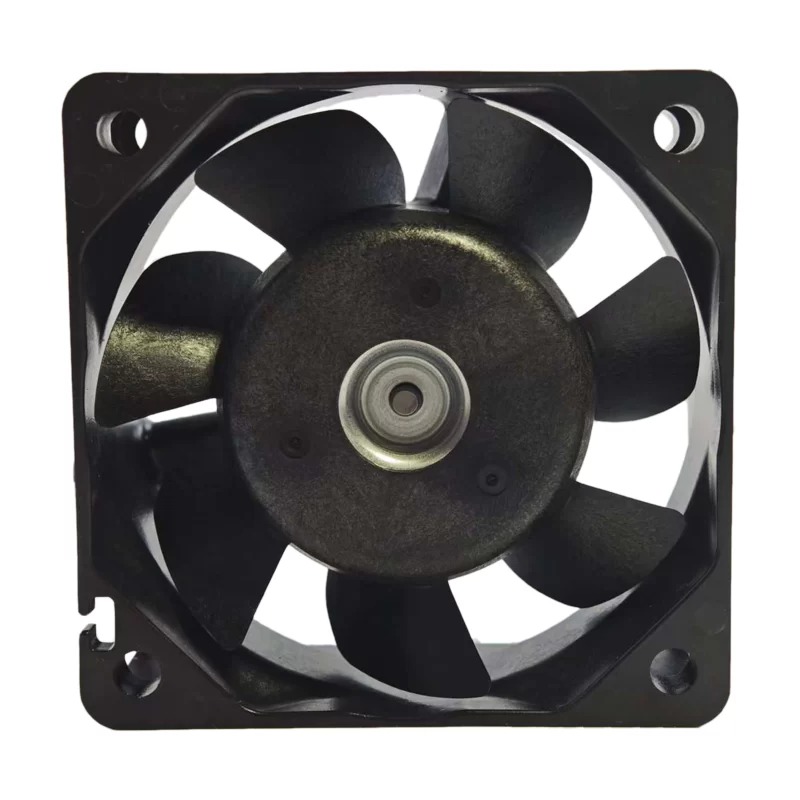

109R0624G4D01 Sanyo 24V 0.13A axial fan

Description

Model: 109R0624G4D01
Manufacturer: Sanyo Denki
Series: San Ace 60
Type: DC Axial Fan
Dimensions: 60x60x25mm
Nominal Voltage: 24VDC
Current: 0.13A
Power Consumption: 3.12W
Speed: 5600 RPM
Airflow: 27.5CFM (0.78 m³/min)
Static Pressure: 0.351 In H2O (87.3 Pa)
Noise Level: 39 dBA
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (or 70,000 hours at 40°C)
Termination: 3-wire leads (typically includes a sensor output)
Frame Material: Plastic
Blade Material: Plastic
Features: Locked Rotor Sensor, Auto-Restart, Reverse Polarity Protection

The Sanyo Denki San Ace 60 109R0624G4D01 is a high-performance 24V DC axial fan, measuring 60x60x25mm, designed for reliable cooling in compact electronic systems. Built with ball bearings, it ensures excellent durability and a long operational lifespan. This fan delivers a strong 27.5 CFM of airflow and a static pressure of 0.351 In H2O at 5600 RPM, providing effective heat dissipation for densely packed components. With a noise level of 39 dBA, it offers a balanced performance of cooling capacity and acoustic output. Its 3-wire termination includes a locked rotor sensor, providing critical feedback for system monitoring. This fan is an ideal choice for small servers, industrial control panels, communication equipment, and other applications where robust, controllable, and reliable thermal management in a compact form factor is essential.
