Description

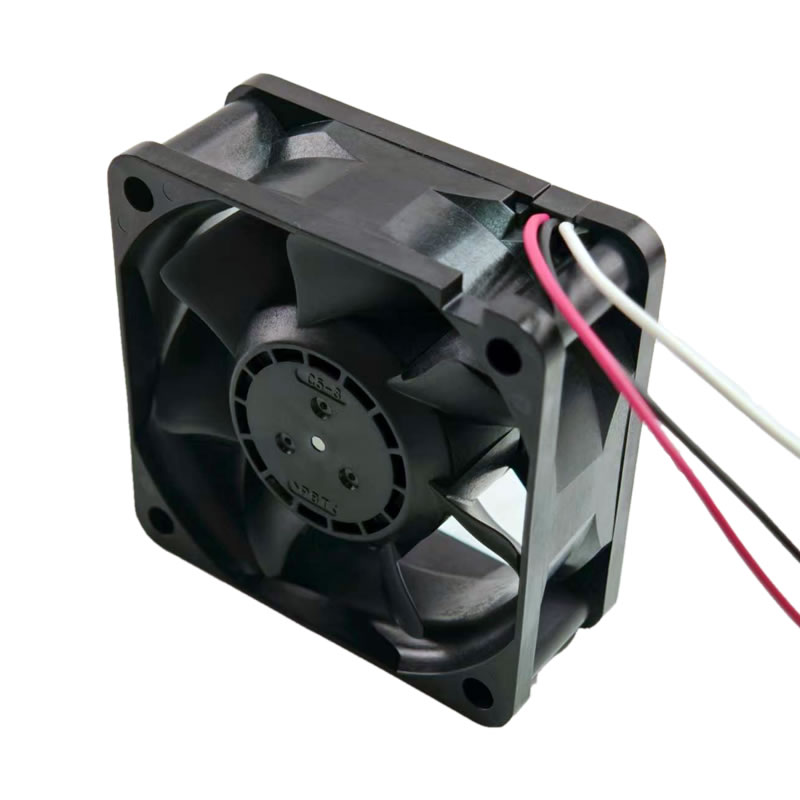

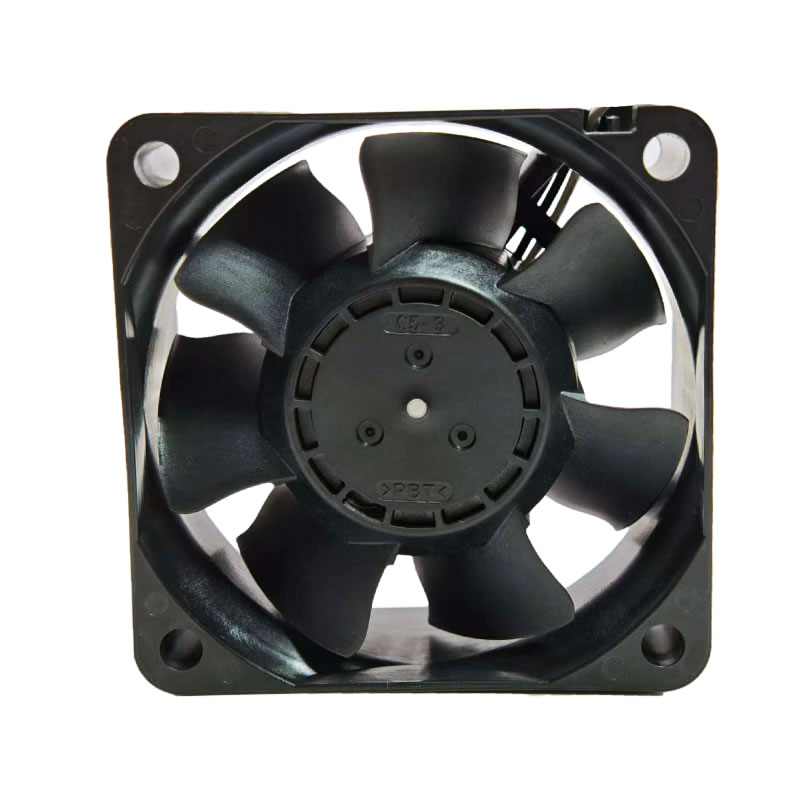

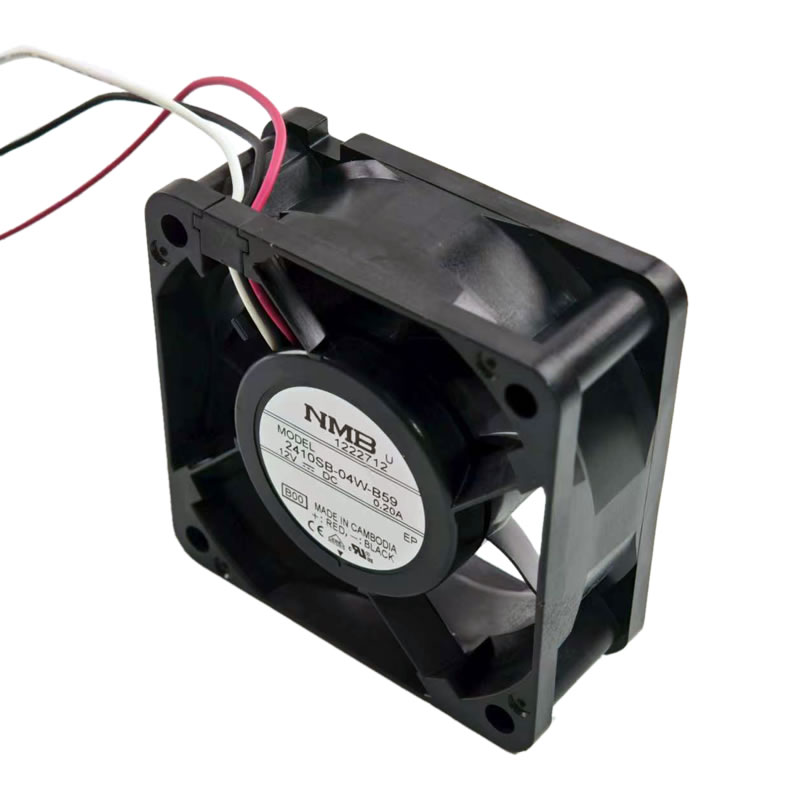

The NMB 2410SB-04W-B59-B00 is a high-performance DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on a rated voltage of 12V DC within a range of 6-13.8V, drawing a nominal current of 0.15 A and consuming 1.8 W of power. This fan, with 7 blades, delivers an airflow of 23.3 CFM (39.5 m3/h) and a static pressure of 0.253 inch-H₂O (63Pa) at a speed of 4700 RPM. It operates at a noise level of 32 dB(A) and features a ball bearing with a long service life of up to 60,000 hours at 60°C. The fan housing and impeller are constructed from plastic, and this model includes a tachometer signal for speed monitoring.
2410SB-04W-B59-B00 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 2410SB-04W-B59-B00
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 6-13.8 V
Label Current: 0.20 A
Current Rating: 0.15 A
Power Consumption: 1.8 W
Airflow: 23.3 CFM
Static Pressure: 0.253 inch-H₂O
Speed: 4700 RPM
Noise Level: 32 dB(A)
Weight: 55 g
Bearing Type: Ball bearing
Number of blades: 7
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 60000 h at 60 °C
Motor Protection: Protection against reverse polarity, locked rotor, and thermal overload
Approval: UL, cUL, TUV
Application
The 2410SB-04W-B59-B00 fan is suitable for miniature electronics, personal computers, and small-scale device cooling where space is limited and quiet operation is required.
