Description

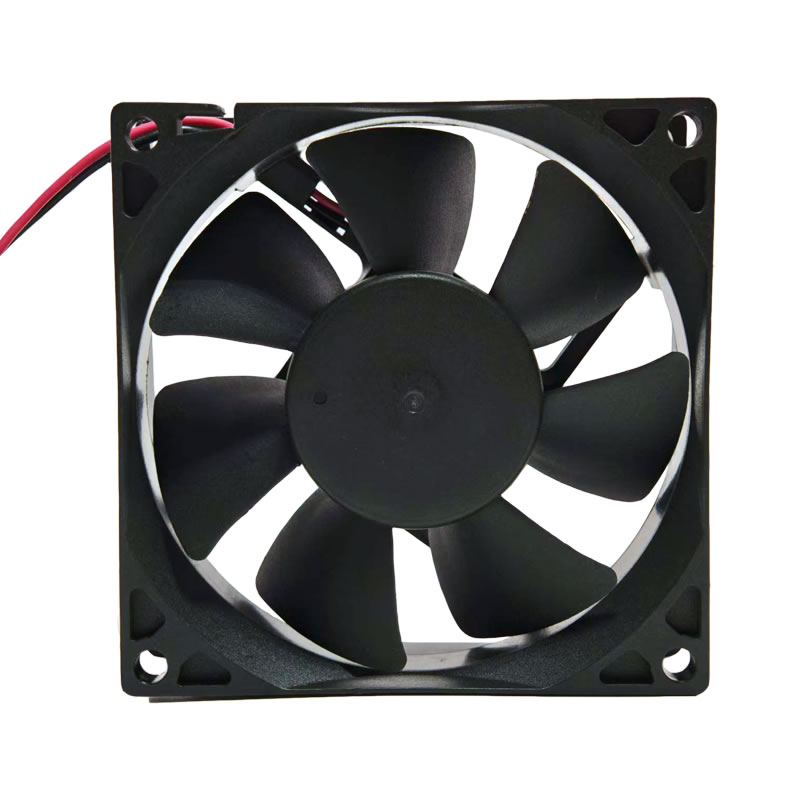

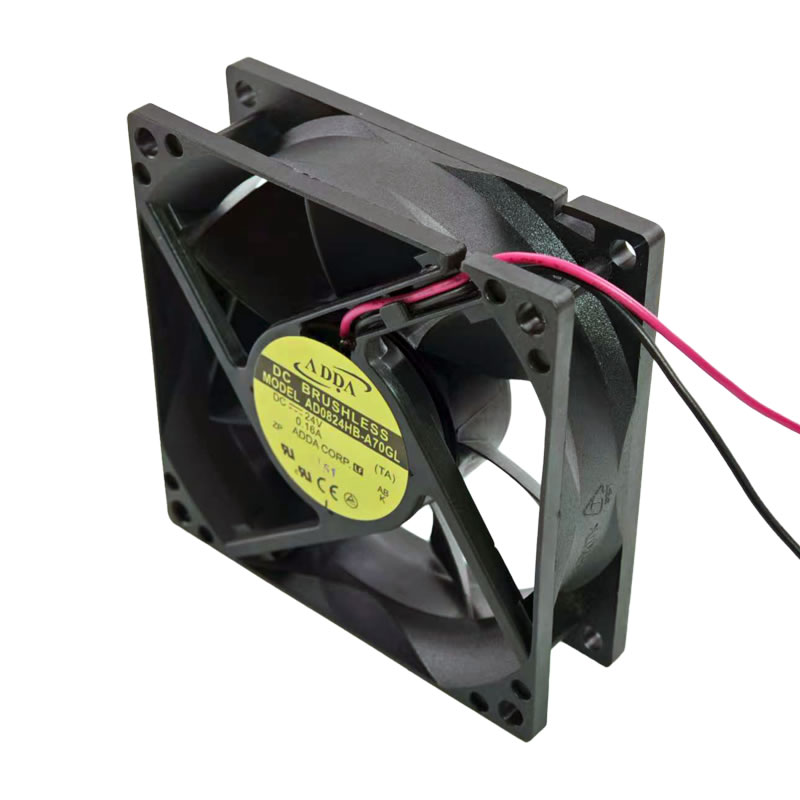

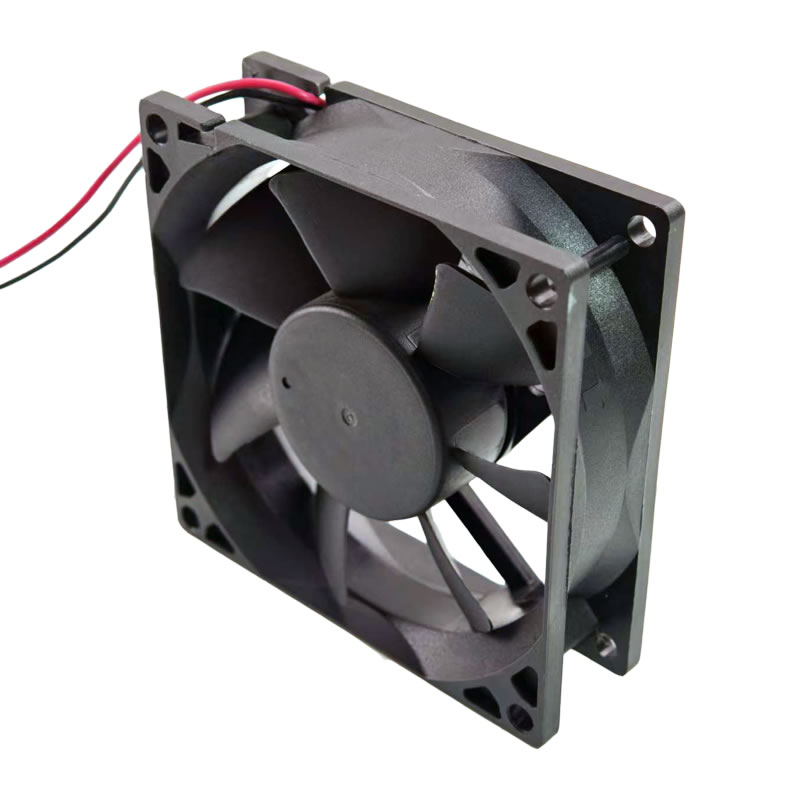

The ADDA AD0824HB-A70GL is a high-speed DC axial fan with dimensions of 80 x 80 x 25 mm. It operates on a rated voltage of 24V DC within a range of 10.8-26.4V, drawing 0.16 A of current and consuming 3.84 W of power. The fan delivers an airflow of 38.6 CFM and a static pressure of 0.16 inch-H₂O (40Pa) at a speed of 3010 RPM. It operates at a low noise level of 34.4 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and it weighs 0.086 kg.
AD0824HB-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD0824HB-A70GL
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.8-26.4 V
Current Rating: 0.16 A
Power Consumption: 3.84 W
Airflow: 38.6 CFM
Static Pressure: 0.16 inch-H₂O
Speed: 3010 RPM
Noise Level: 34.4 dB(A)
Weight: 0.086 kg
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Approval: UL, cUL, TUV, CE
Application
The AD0824HB-A70GL fan is suitable for CPU cooling, PC cases, and general electronics cooling in applications where a balance of performance and quiet operation is required.
